CSF 65-73 Porsche 911 / 74-89 Porsche 911/930 Turbo Engine Oil Cooler

Manufacturer Part # : 8242

Market Description

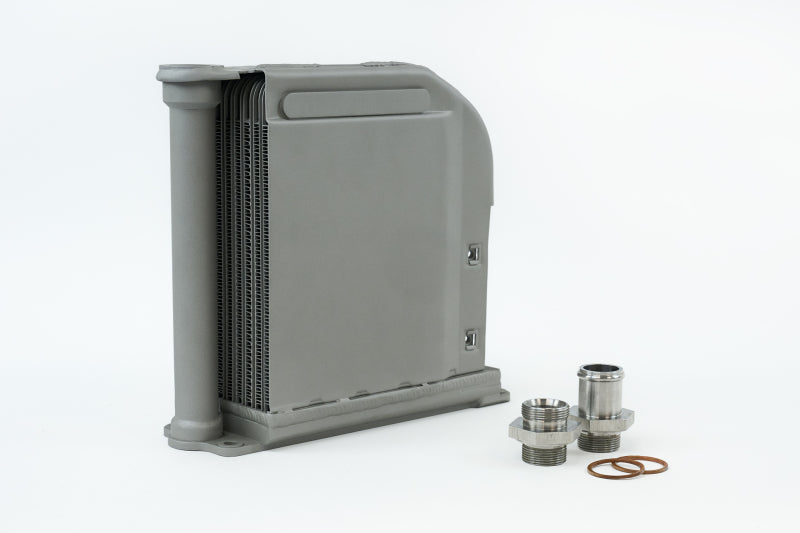

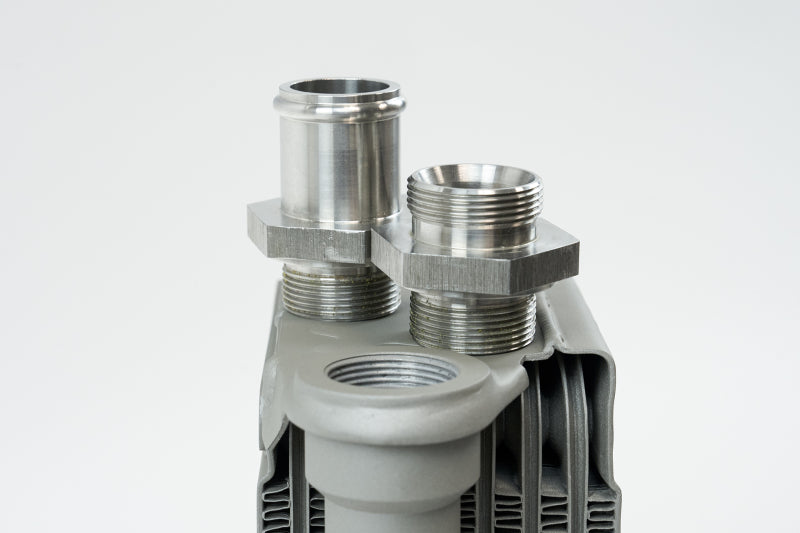

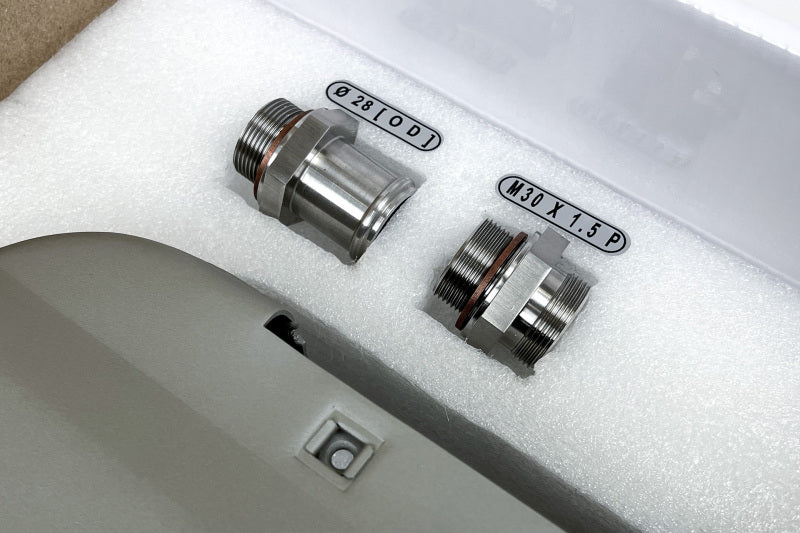

• One of the goals of the CSF 911/930 Engine Oil Cooler was to have a single unit that could fit both older (65-71) and newer models (72-89). The solution may seem simple, but engineering the two upgraded stainless steel fittings so there was no oil flow restriction took some extra design work. CSF took some inspiration from the CSF 911/930 Turbo Fender Oil Cooler (CSF #8168) using a similarly designed "Widemouth Fitting". The threaded M30 "Widemouth Fitting" for the 65-71 models maintains the optimized inner diameter (ID) of the oil pipe to maximize flow through the oil system. The "Widemouth Fitting" offers 50% greater flow capacity over the OEM connection. The machined in-house Stainless Steel fittings offer increased strength and durability over the OEM Aluminum slip-on tube (72-89 models) and threaded M30 fitting (65-71 models). Both OEM connections are common sources of leaks. CSF also includes two high quality copper crush washers to offer the best possible seal and prevent any leaks.

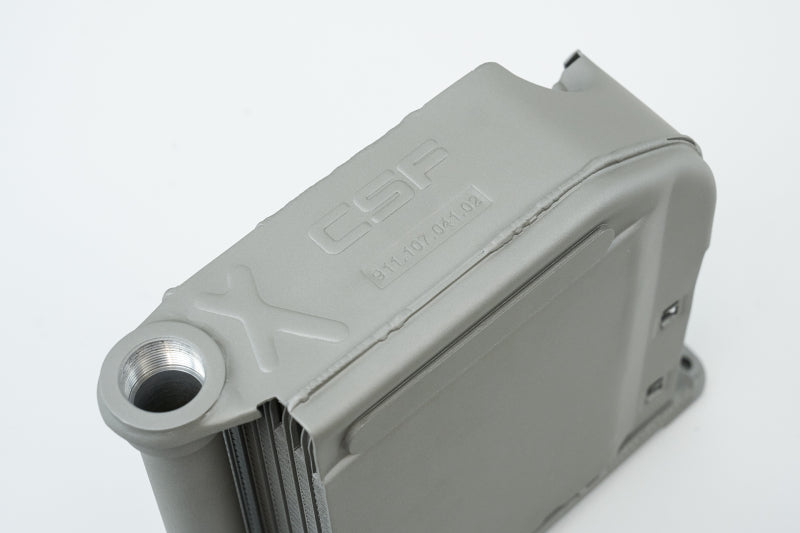

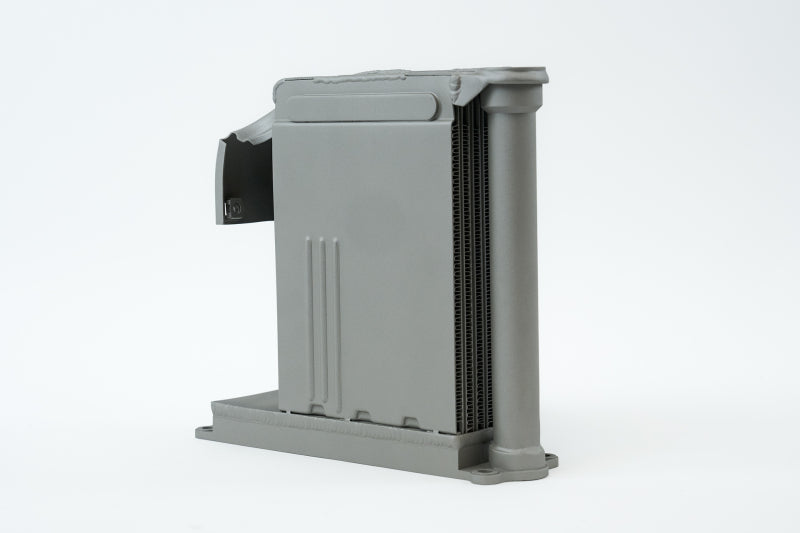

• CSF understands Porsche purists want to keep an OEM look even when upgrading the performance of their 911s. This was a driving factor behind many of the cosmetic features of the oil cooler. You can see the stamped for strength "X shaped" design in the metal on the top of the cooler along with the OE Part Number just below the CSF logo. In addition, the cooler comes in a Titanium color Thermal Heat Dispersion Cerakote finish. This advanced finish is durable, improves heat dissipation, is anti-corrosive, and offers a very classy OEM+ look to the cooler. A modern upgrade over the original. No details were overlooked in the design of the CSF cooler. The curvature of the case matches the original precisely and includes all the fine details. The spark plug aperture matches up perfectly with the valve cover for a perfect fit. Built into the machined base plate are small but important details such as the raised mounting pads and strengthening ridges.

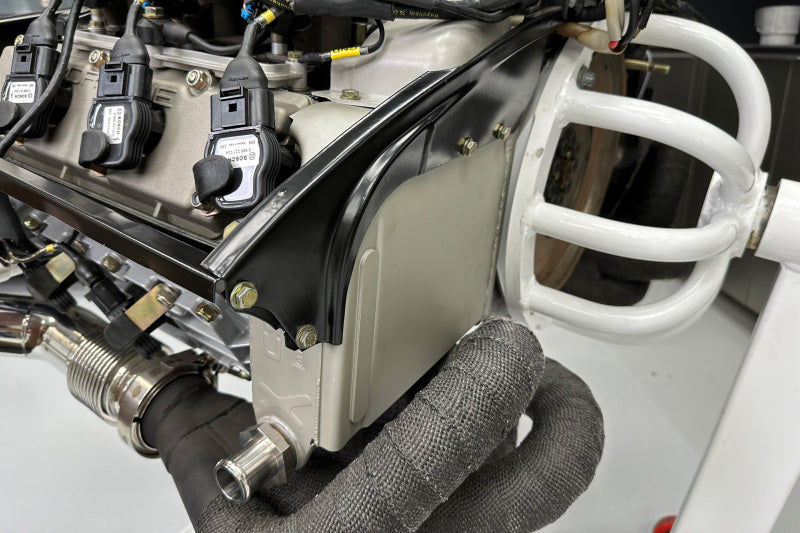

• CSF's goal for the 911/930 Oil Cooler was to recreate the original cooler with a modern interpretation of the design while improving functionality and reliability. To accomplish this, CSF spent countless hours in research and development. Brain Day was instrumental in really helping CSF engineers understand the 911's oil cooling system. These details and deep understanding allowed for proper engineering and creating a cooler that could fit such a wide variety of models. Improving upon a design starts with understanding the system as a whole. Every detail of the cooler was analyzed from core strength to oil flow restrictions. 3D scanning of 911/930 engine blocks and OE Coolers gave CSF the ability to ensure optimal fitment and see what room there was for improvements. Fitting and testing was performed on several 911/930 engines at SV Auto to provide accurate performance metrics.

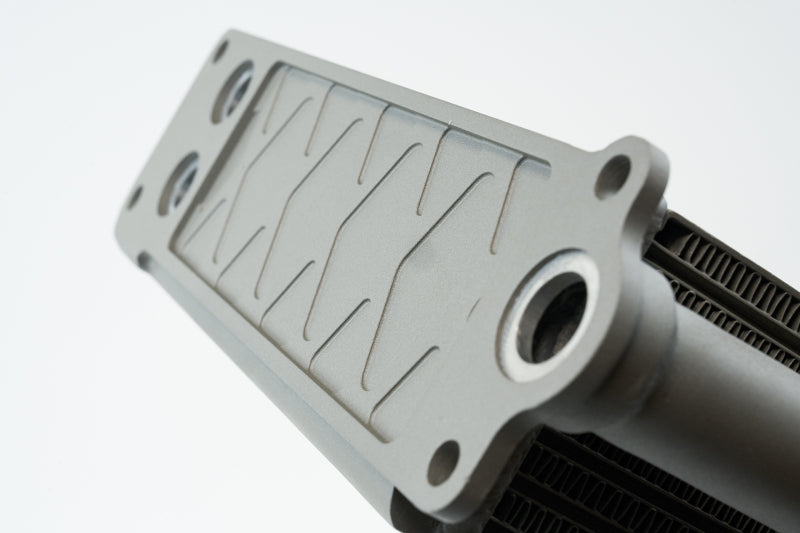

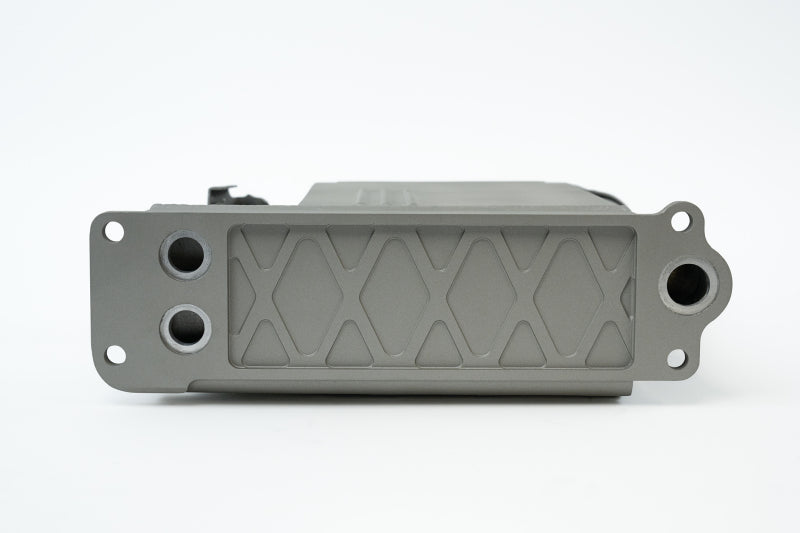

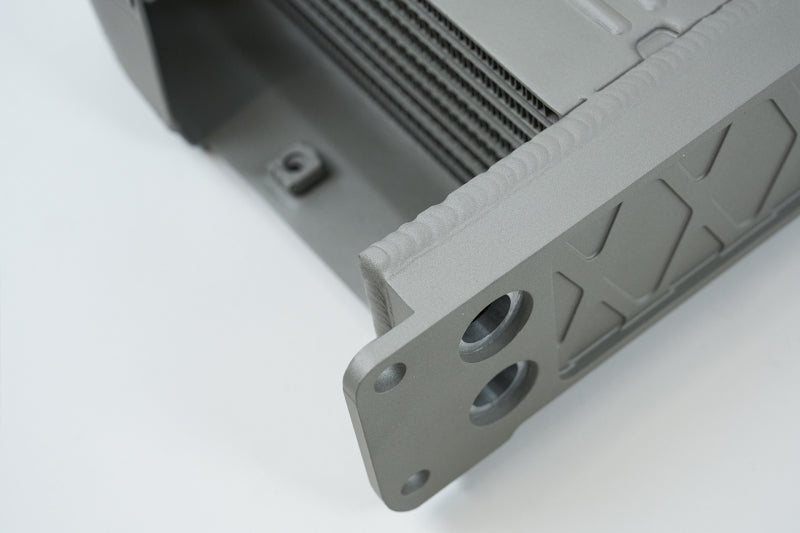

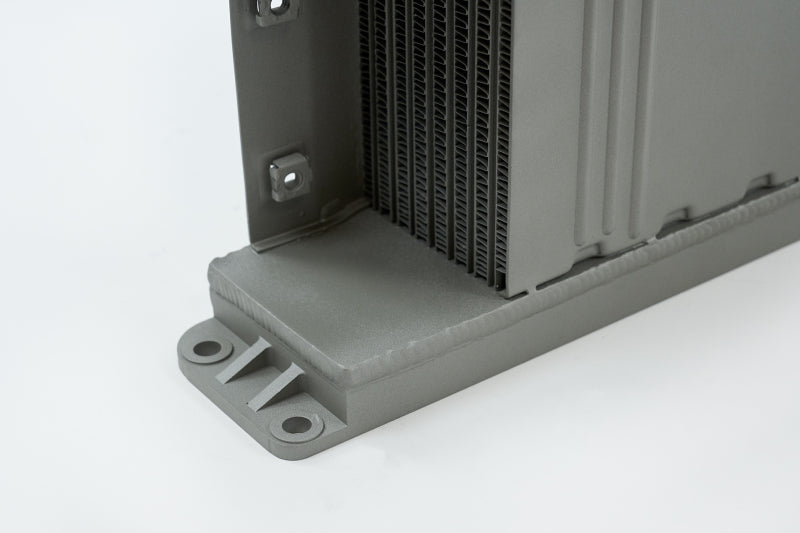

• Because the base plate of the cooler is also a common problem area, CSF wanted to upgrade this area as much as possible. Instead of the original cast design, the CSF cooler uses a CNC machined billet aluminum plate. This offers a perfectly flat mounting surface which is both stronger and more resistant to warping over time. You'll also notice a special helix design which adds strength while keeping weight at a minimum. The O-Ring recesses are CNC milled into the billet for a perfect fit and seal. Nothing is worse than getting your engine put together only to find a minor oil leak at the O-Rings between the block and the oil cooler. You can now confidently install your oil cooler knowing you won't get any leaks from improper O-Ring seating.
• Extensive testing was done between the CSF Oil Cooler and OEM Oil Cooler. For these tests, CSF was able to procure a brand new old stock Behr OEM unit. This offered a true benchmark comparison in oil flow, pressure drop, and heat dissipation. Tests were conducted in our factory's wind tunnel under controlled conditions. The data shows the CSF Oil Cooler outperforming the OEM unit by a substantial margin in Heat Dissipation and Pressure Drop. At equal flow rates the CSF cooler was on average 8% more efficient at dissipating heat and offered 6-8% less pressure drop. These results were before applying the Thermal Heat Dispersion Cerakote which further improves the heat dissipation performance.

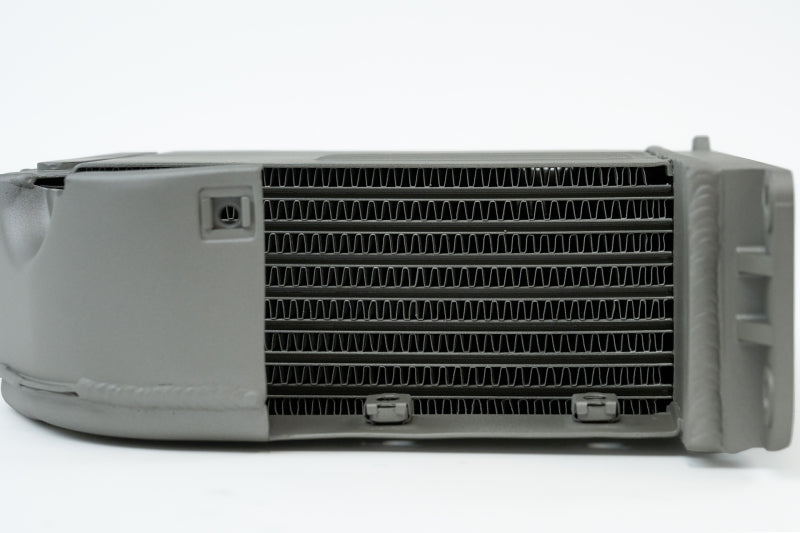

• The CSF units utilize a modern and robust tube and fin core specifically designed for this cooler. This new core has higher flow, less pressure drop, and is more durable than the original design. In addition to the upgraded core, CSF added support/strength bars between the tubes. These bars increase the burst pressure which has been tested to 290 psi (20bar) without leaking. The high-performance core uses 7 cooling tubes with 8 rows of fins. Between the ultra efficient fin design and high flow tubes, the CSF cooler is 10% more efficient than a brand new OE unit and up to 25% more efficient than a used unit.
• The original Behr Cooler was designed back in the 1960s and definitely shows its age at this point. Original coolers can be ultrasonically cleaned and refurbished but there is good chance they will start leaking after cleaning. The cleaning process may cause the coolers to fail due to it's old and brittle materials, or it can remove corrosion and debris that has kept the original from showing the leak beforehand. However, the core is not the only source of leaks. The OEM cast base plate that mounts to the block can become slightly warped or aging porosity can cause the seals to not seat correctly and leak.
• For development of the 911/930 Engine Oil Cooler, CSF teamed up with the leading Porsche engine building experts at SV Auto. Their deep knowledge of classic Porsche engines and expertise in restoration gave CSF invaluable insight into how to best approach the design and construction. Long time R&D Partner and CSF Dealer Brian Day at Euro Parts West was also a critical partner in the development of the oil cooler design.
• The old original coolers aren't the only issue though. CSF has gotten many first hand reports of brand new OE coolers from Porsche's revamped "Porsche Classic" Catalog leaking within a few months of installation. Apparently the new items available from Porsche are not built as well as the original Behr coolers. CSF has now brought to market a modern OEM+ solution to this vintage design.

Associated Comments

The CSF #8242 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF offers the best and most advanced Oil Coolers on the market. So when it comes to keeping your engine oil temps down as you push your Porsche 911 / 930 Turbo hard on the street or track, a CSF Oil Cooler is the obvious choice.

Features and Benefits

• Stainless Steel Fittings for late model slip-on style (74-89) and early threaded style (65-73) with upgraded M30 "Widemouth" Design for improved flow
• Comes standard with modern Cerakote titanium finish (additional heat dissipation) - modern interpretation of the OEM Behr finish
• Combo Model fits both Early (65-73) and Late (74-89) Models (great benefit to stocking dealers and distributors)
• Optimized ID and flow characteristics of oil pipe for maximum oil flow through the vehicle's oil system
• Modern Tube & Fin core with lower pressure drop and higher heat dissipation than the original
• CNC Machined mounting plate with helix design for strength and pocketed for lightweight
• New OEM coolers from Porsche are extremely scarce/hard to source and cost $1,300+
• All OEM Behr features replicated on the billet mounting plate and cooler case
• OEM+ / High-Performance recreation of the original Behr Oil Cooler
• Complete drop-in fit, absolutely no modifications to install.
• 10 year warranty

Product Description - Short

• CSF 65-73 Porsche 911 / 74-89 Porsche 911/930 Turbo Engine Oil Cooler
• CSF Oil Cooler

Product Description - Long

Porsche 911 / 930 Turbo OEM+/High-Performance Engine Oil Cooler

Product Description - Invoice

CSF 8242 - 911/930 Turbo Oil Cooler

AAIA Part Type Description

Engine Oil Cooler
