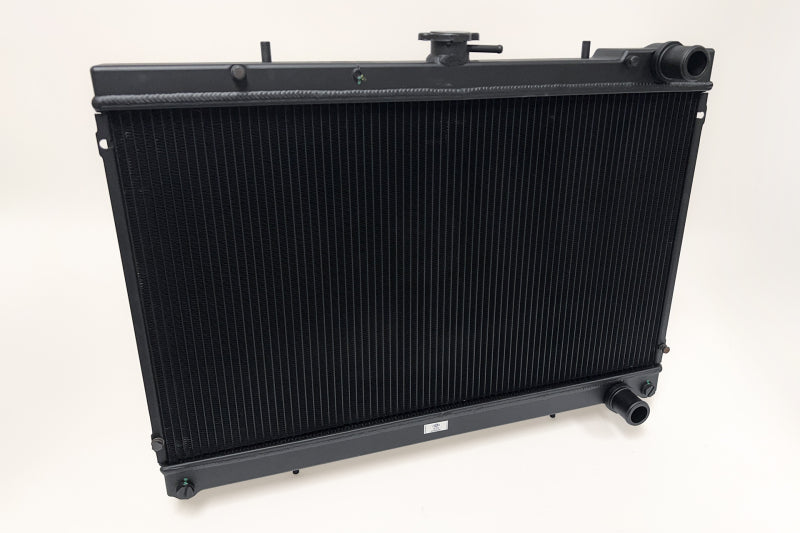

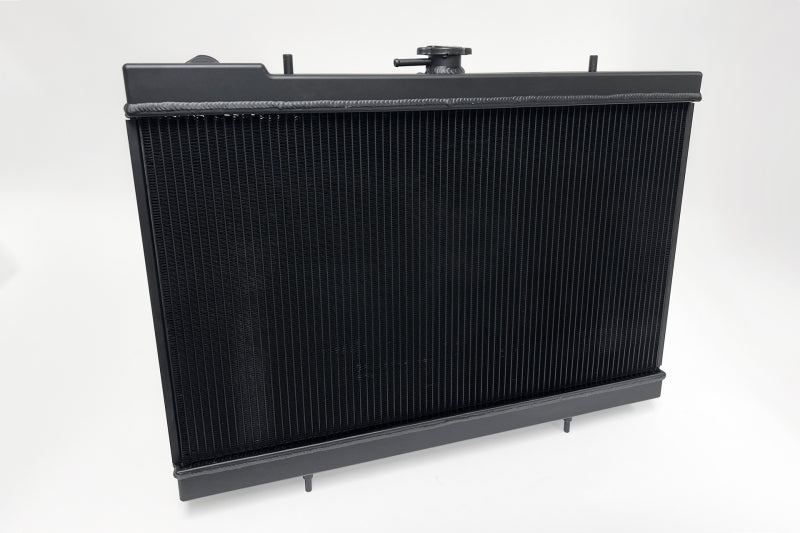

CSF R32 Nissan Skyline GT-R / GT-S Full Billet Aluminum High-Performance Radiator - Black Finish

Manufacturer Part # : 7217B

Market Description

• The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from. Each end tank is CNC machined billet aluminum giving them incredible strength and durability. CNC machining offers incredible precision and uniformity. The results are perfectly produced end tanks that perfectly match up with the ends of the 42 mm core. Hand TIG welding joins the tanks to the core creating the strongest radiator on the market for the R32 Skyline. Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot. The CSF #7217B comes in Black. Also available in a raw billet aluminum finish (CSF #7217).
• The inline 6 motors found in the R32 Skyline are quite robust. Whether you have a basic 2.0L RB20 or legendary RB26, you probably don't worry too much about engine reliability. The R32 GT-R's RB26 is particularly famous for making big power and being reliable while doing it. However power gains come at the cost of a lot of extra heat. While the factory radiator does a decent job keeping heat in check, it's always better to have more protection. CSF set out to develop a premium radiator that would offer ultimate performance cooling while being built to last a lifetime. Since the R32 is a valuable collector's car, it makes sense to use the highest quality parts when restoring or modifying them. With full CNC machined billet aluminum end tanks TIG welded by hand to the high grade aluminum core, this radiator performs even better than it looks.
• The Nissan R32 Skyline is a true JDM legend. From GTS to GT-R, the love for this chassis runs deep. Here in the states it is still one of the most popular JDM imports. Import companies like TopRank have been helping enthusiasts acquire these dream vehicles for years. Now they have teamed up with CSF to help bring a truly special product to the market. Introducing the Full Billet High-Performance Aluminum Radiator for the Nissan R32 Skyline.

Associated Comments

The CSF #7217B Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF manufactures the most advanced and efficient radiator in the industry for your R32 Skyline. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Product Description - Short

• CSF R32 Nissan Skyline GT-R / GT-S Full Billet Aluminum High-Performance Radiator - Black Finish
• CSF Radiator

Features and Benefits

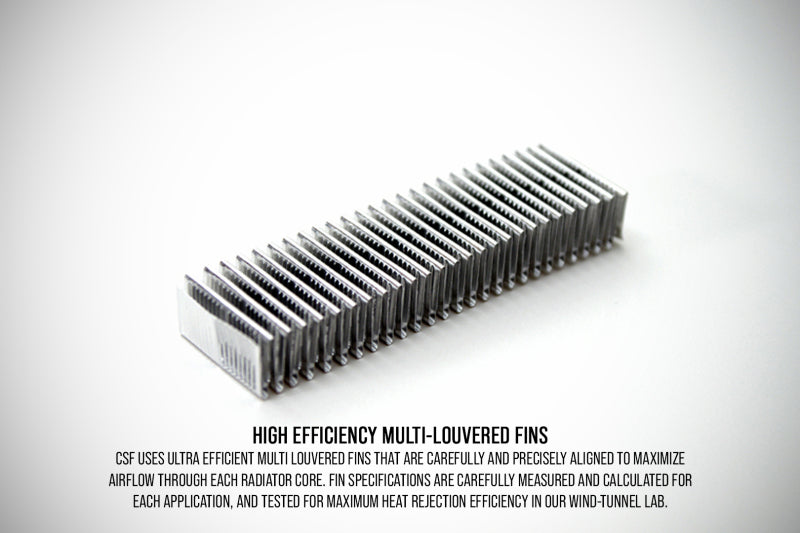

• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

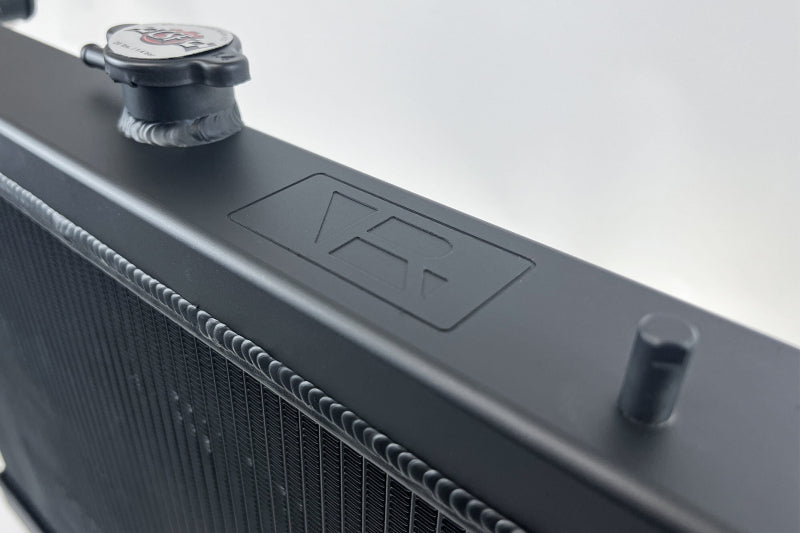

• Top Rank Logo machined into Top End Tank and Painted on Core
• 1.4 Bar (20psi) High Pressure Radiator Cap with CSF logo

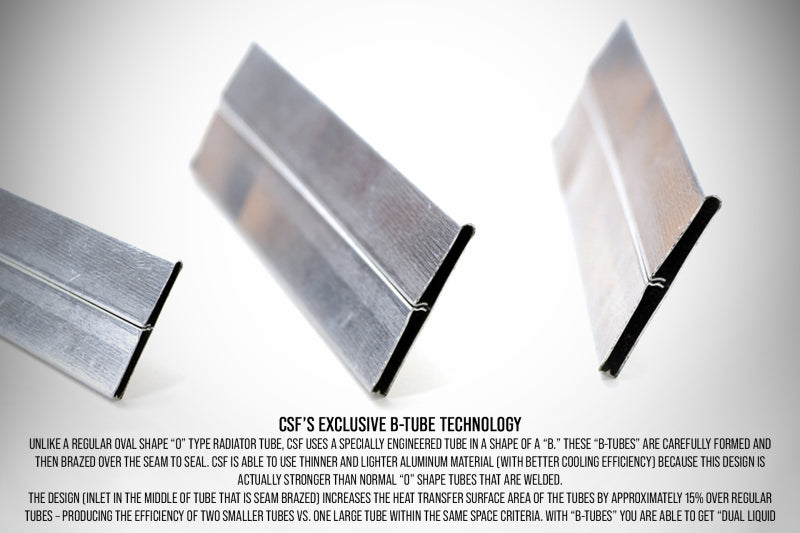

• 75 Cooling Tubes with CSF's Exclusive B-Tube Technology
• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• CNC Machined 100% Billet Aluminum End Tanks
• 1/8th NPT Temp Sensor Port on Top End Tank
• 100% All Aluminum TIG-Welded Construction
• 2-Row - 42mm Ultra-High-Performance Core
• OE Location Fan Shroud Mounting Points
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
• Satin Black Finish
• Limited Production

Product Description - Long

R32 Skyline GT-R/GTS Full Billet Aluminum High-Performance Radiator - Black

Product Description - Invoice

CSF 7217B - R32 GTR/GTS Radiator (BLK)

AAIA Part Type Description

Radiator
