AEM X-Series Boost Pressure -30inHg 35psi Gauge

In stock
Regular price $391.00
Product INFO
  • Vendor AEM
  • SKU T14.31873
  • Barcode 30-0306
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 30-0306


Market Description

  • X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
  • Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
  • Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.
  • Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 35 PSI or 2.5 BAR in their high performance vehicle.

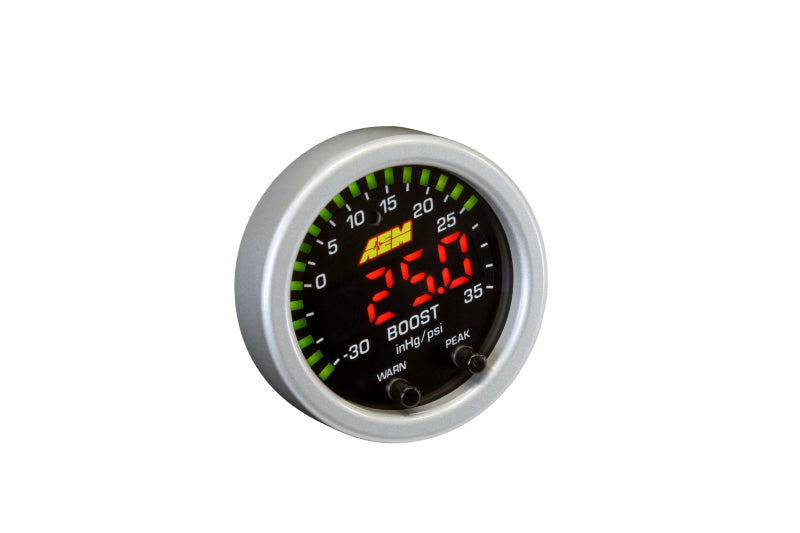

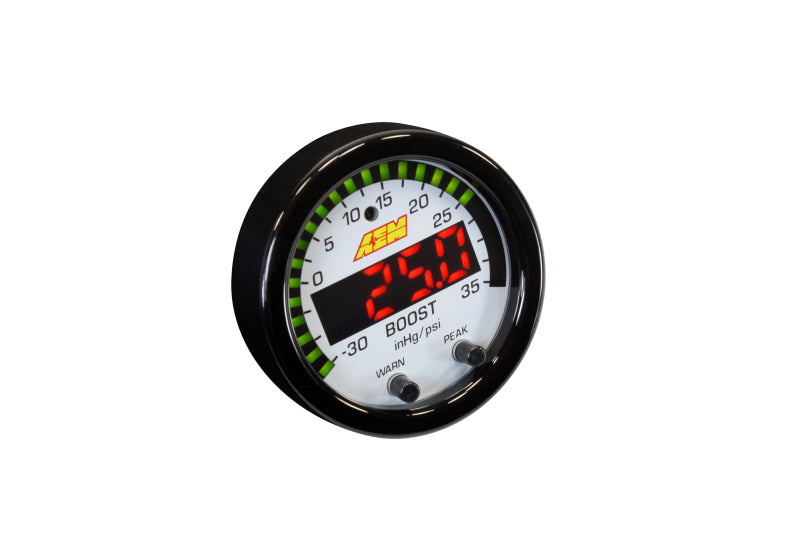

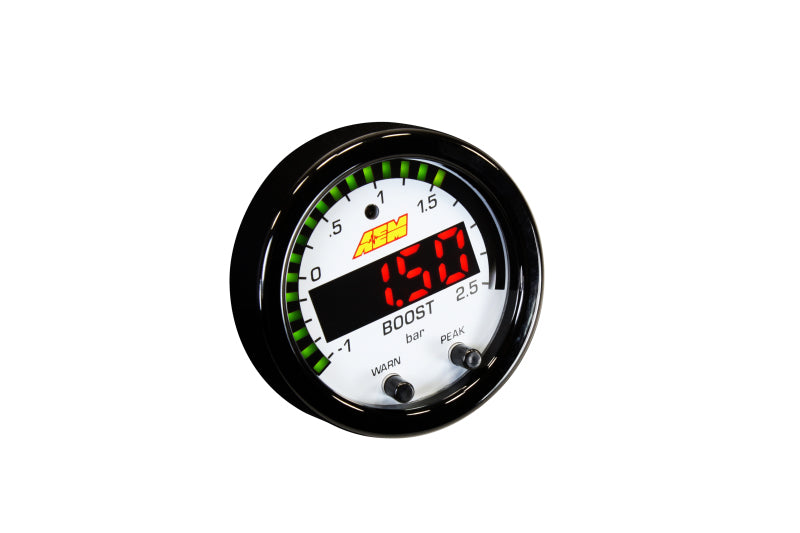

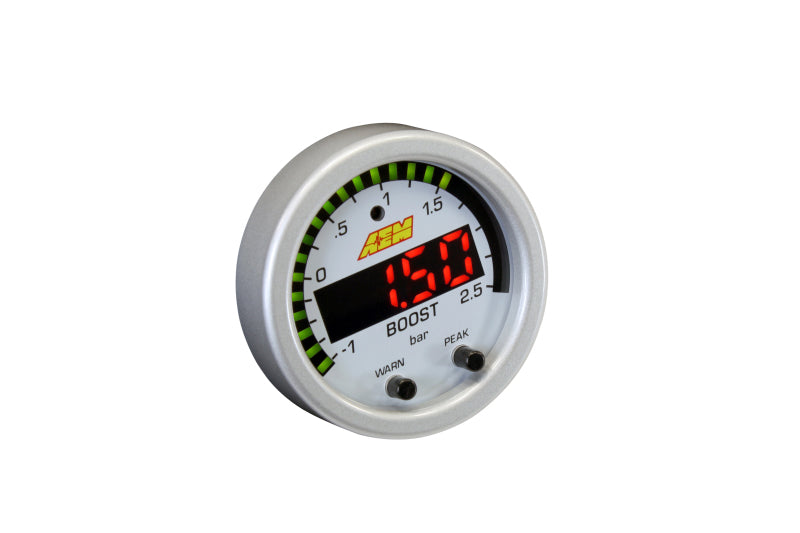

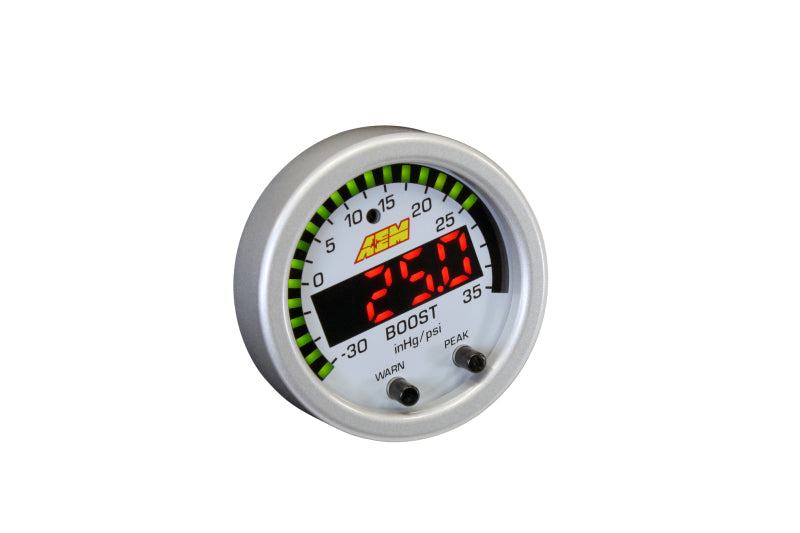

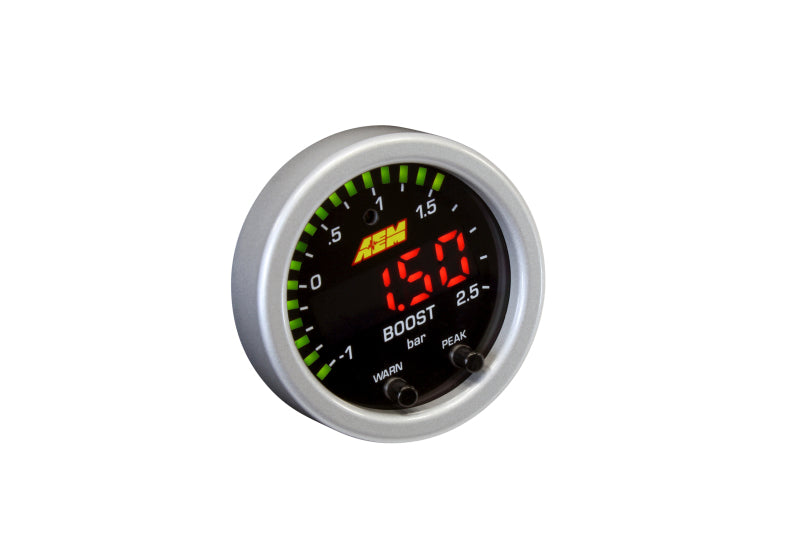

  • You will need to purchase the optional 30-0306-ACC accessory kit to get the silver bezel and reversible white standard/metric boost pressure faceplate. Each faceplate is double sided with standard PSI on one side and metric BAR on the other.
  • The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.

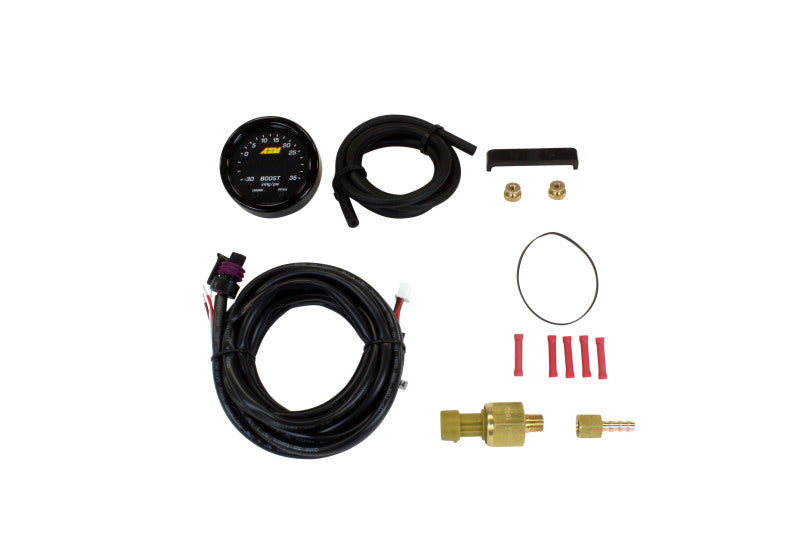

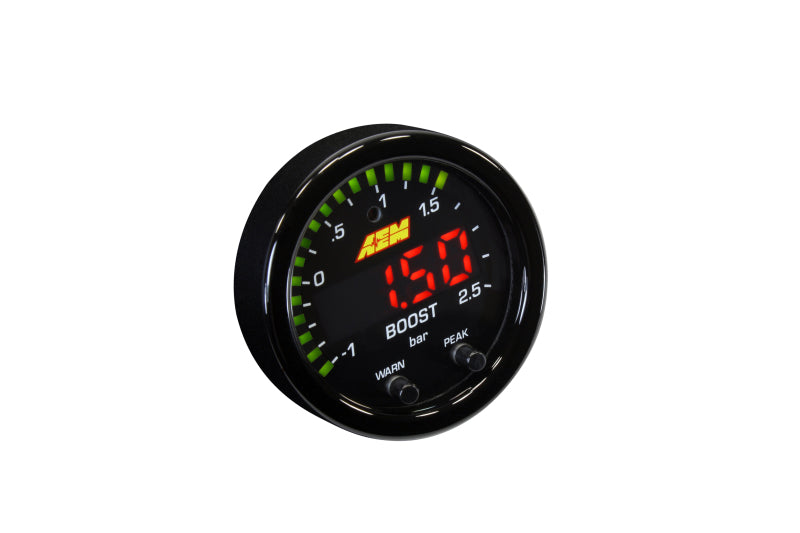

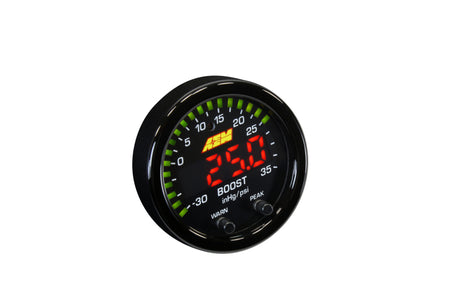

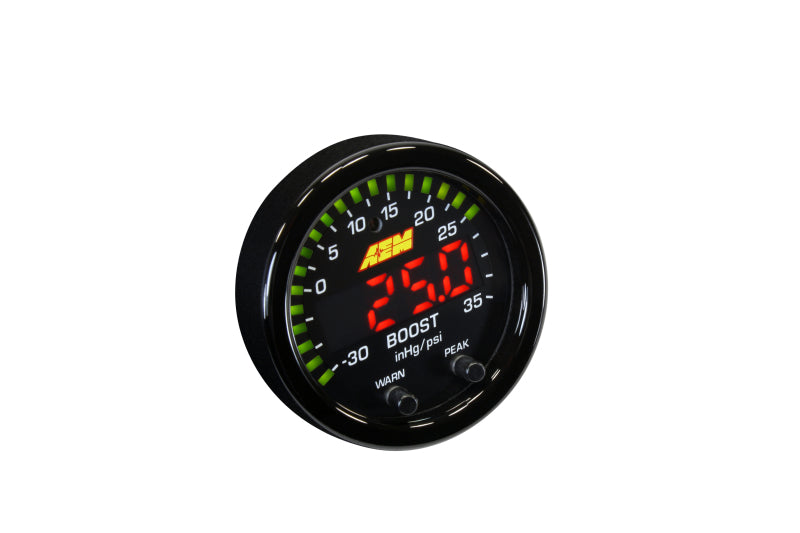

  • NOTE: The 30-0306 comes with a black bezel and reversible black PSI/BAR boost pressure faceplate.
  • X-Series Boost Pressure Gauge -30inHg-35psi / -1-2.5bar. Black Bezel & Black Faceplate
  • AEM's 30-0306 X-Series -30in/Hg~35PSI / -1~2.5BAR
  • SMARTER INTERFACE
  • EASIER TO MOUNT
  • EASIER TO READ

Product Description - Extended

  • X-Series Boost Pressure Gauge -30inHg-35psi - -1-2.5bar, Black Bezel and Black Faceplate
  • 0-35psi/2.5bar - Black Bezel - Black Face

Features and Benefits

  • Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
  • Optional silver bezel and white faceplate accessory kit available (sold separately)
  • User selectable standard or metric display ( -30in/Hg~35PSI / -1~2.5BAR)
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • 0-5v analog outputs for transmitting data to EMS or Data Logger
  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Programmable center LED is 87% larger than original AEM gauges
  • 24 green outer LEDs for quick reference to engine parameter
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connectors provide secure connection
  • Peak/Recall via gauge face buttons
  • User selectable threshold warnings

Product Description - Short

  • AEM X-Series Boost Pressure -30inHg 35psi Gauge
  • X-Series Boost Gauge
  • X-Series Gauge

Product Description - Long

AEM X-Series Boost Gauge

Product Description - Invoice

  • X GAUGE KIT BOOST 35 PSI
  • AEM - X-Series Gauge

AAIA Part Type Description

Vacuum Gauge

Product Description - Abbreviated

AEMEMULTBOOS
