AIRTEC Motorsport Gear Shift Assembly for Toyota Corolla GR

Technical Data

Shifting Expectations
After a vigorous development and testing programme on the road and race track, we’re proud to announce the launch of our AIRTEC Motorsport Shifter Assembly range.

These shifters have been carefully engineered to improve the gear change experience, offering a huge 40% reduction in distance throw to vastly decrease shifting time. But the shifter doesn’t just decrease the throw; it massively improves the feel and is guaranteed to enhance your driving experience.

What it does
The shifter completely eliminates any slack movement from the gear lever and as a result, every shift is perfect, positive and precise. The raised gear lever also allows changes to feel more natural. The positive effect from this more confident gear change action is removing any worry about selecting the correct gear, which allows you to focus on other aspects of driving – a huge benefit when on track or road.

How it works

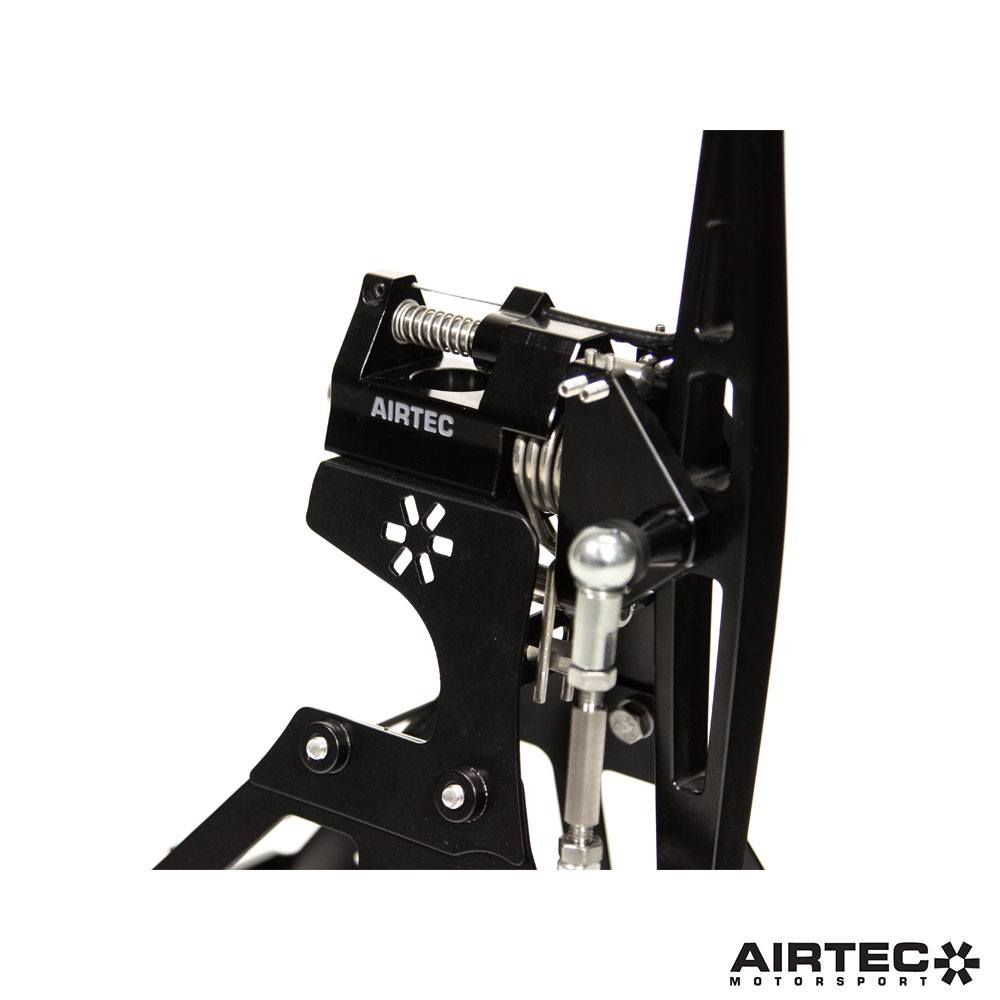

Where an OEM gear lever naturally centres but with little resistance, the AIRTEC Motorsport shifter features a heavy-duty, spring-loaded mechanism to self-centre it. Travel of the lever can also be finely adjusted to limit shift movements to a minimum, which all ensures there is no slack movement. Reverse gear can only be selected by lifting up the collar, ensuring it cannot be selected accidentally and there is also the option to lock out certain gears for competition use.

Fitment

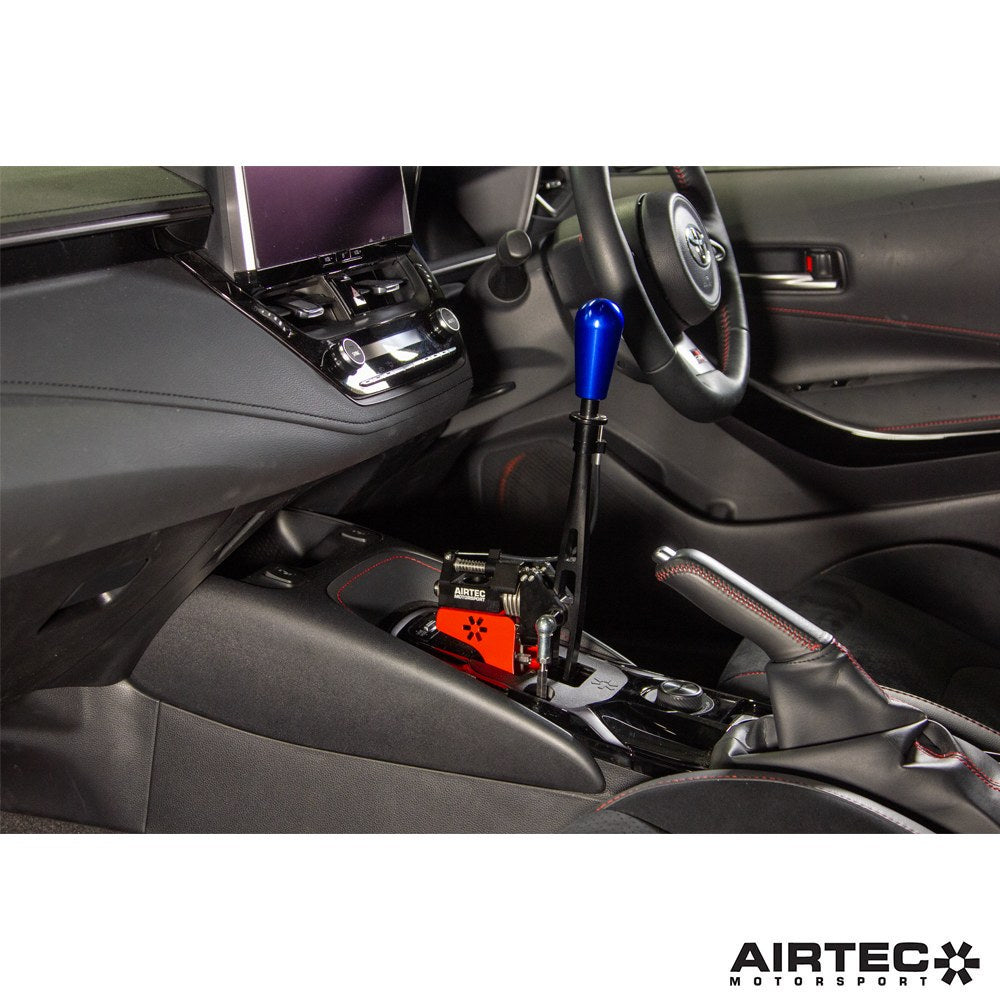

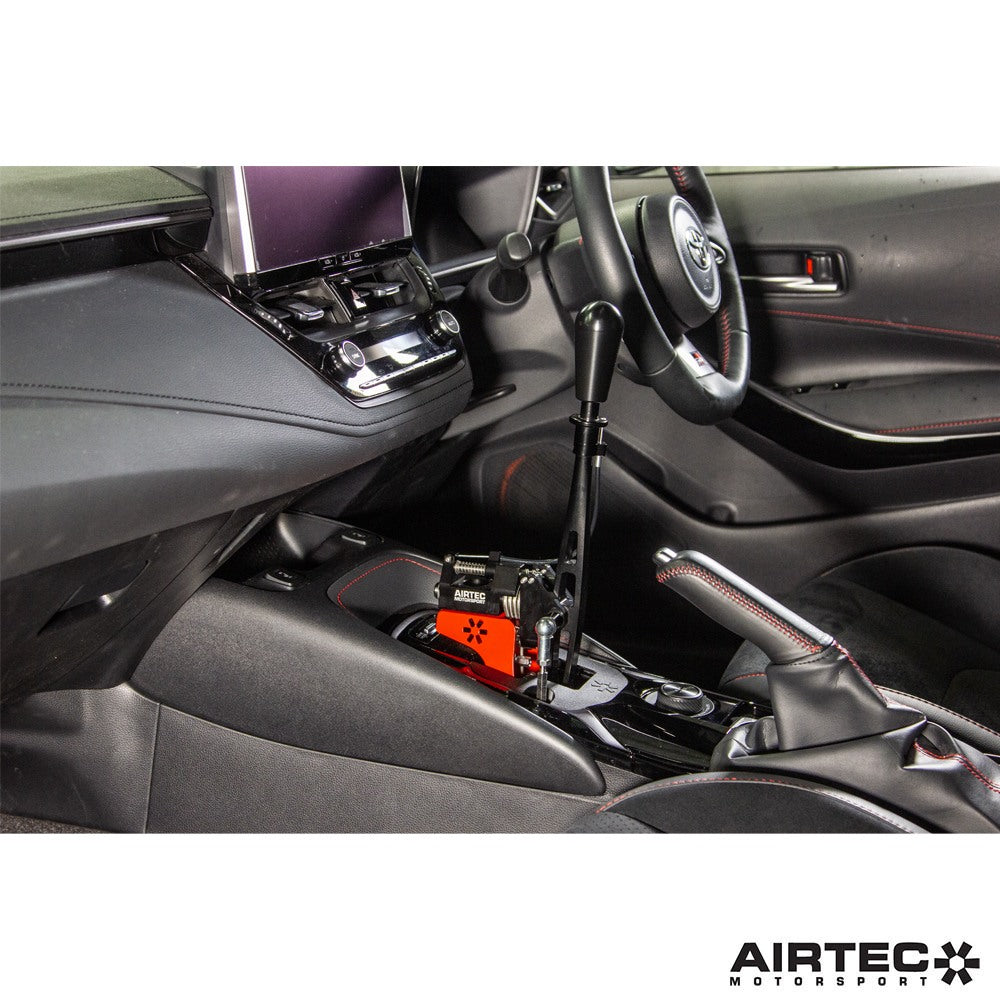

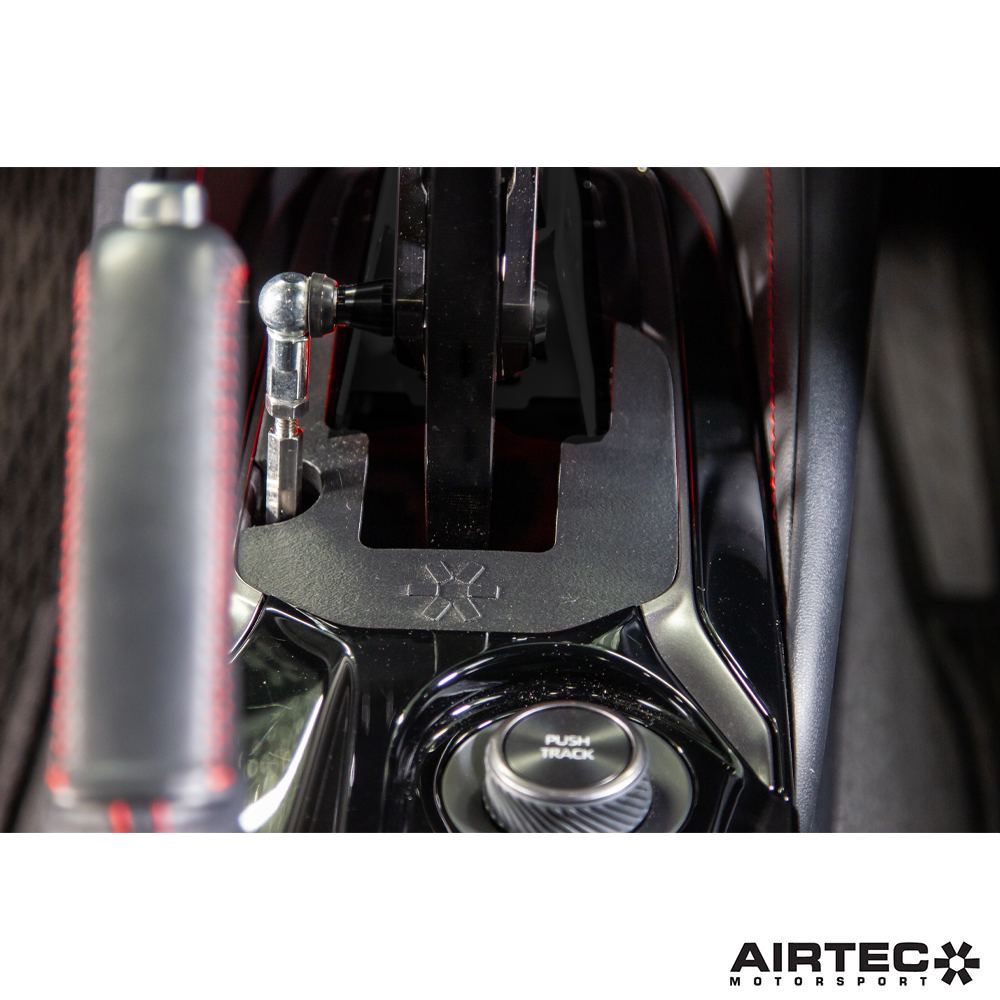

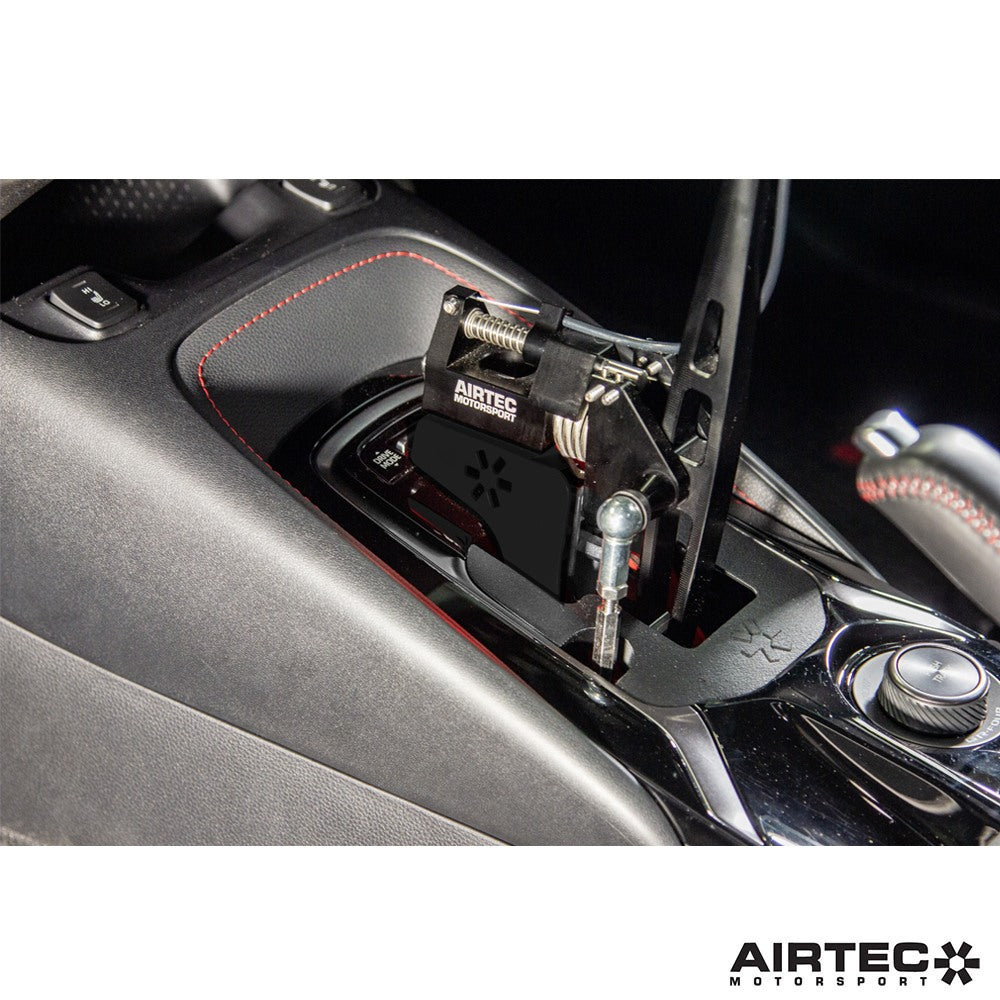

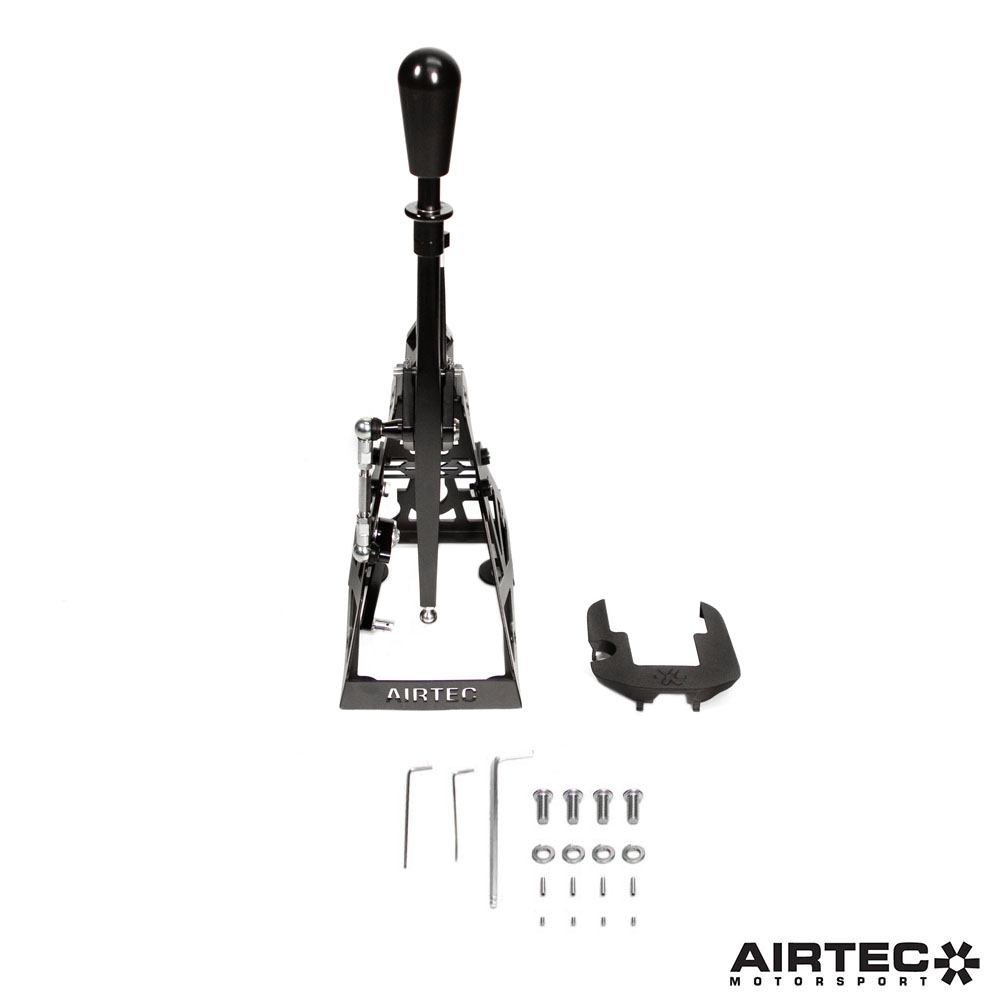

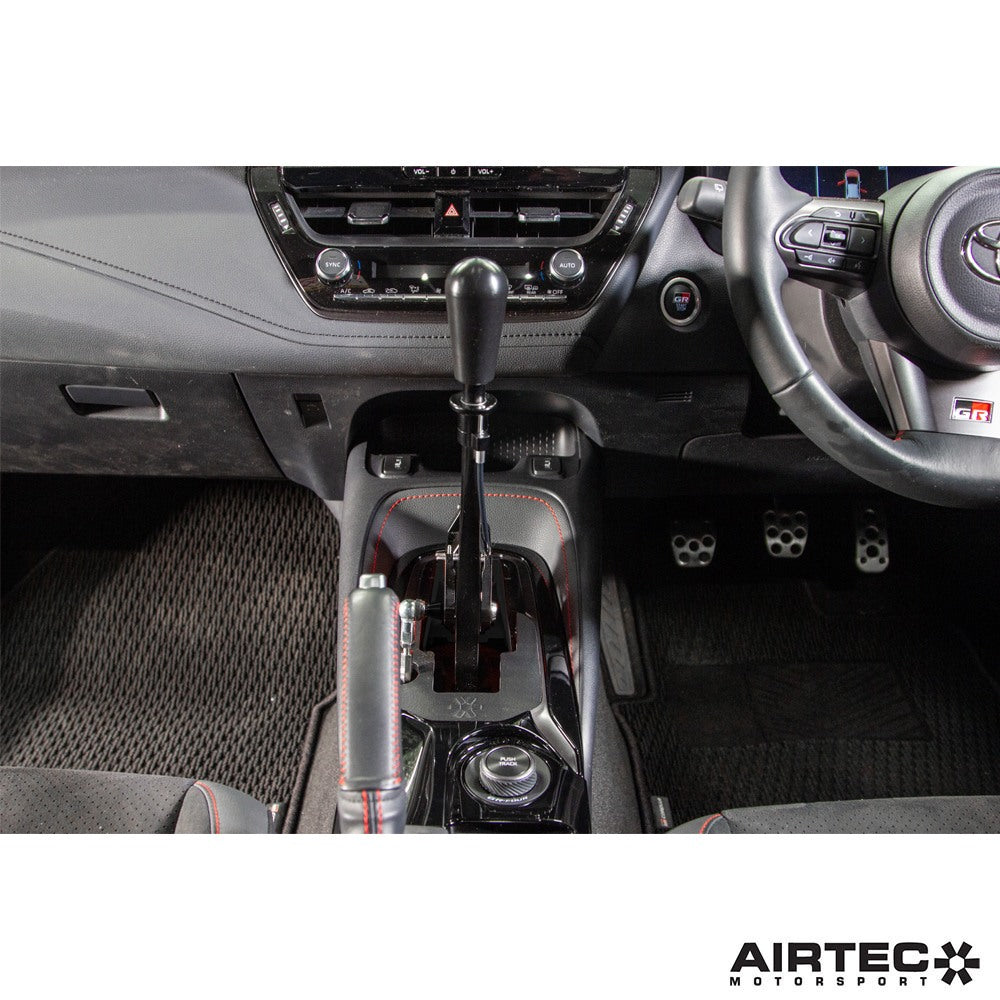

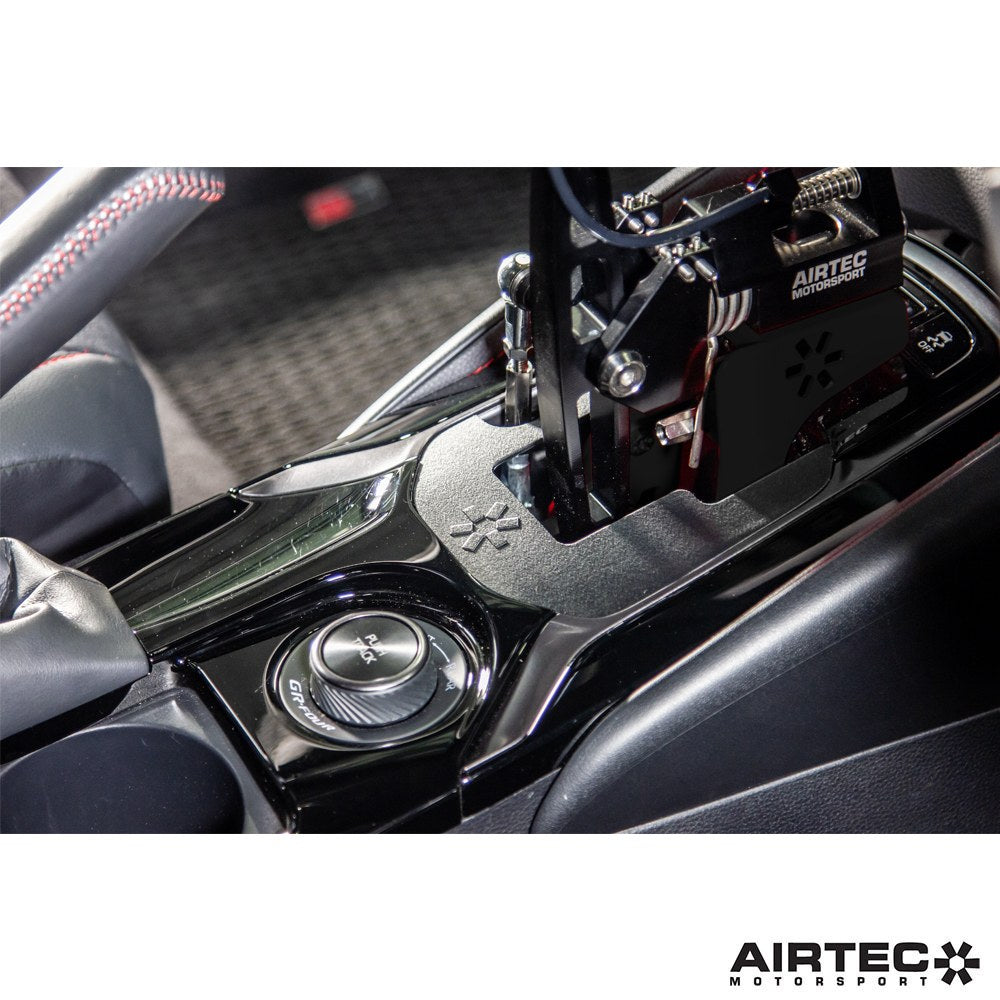

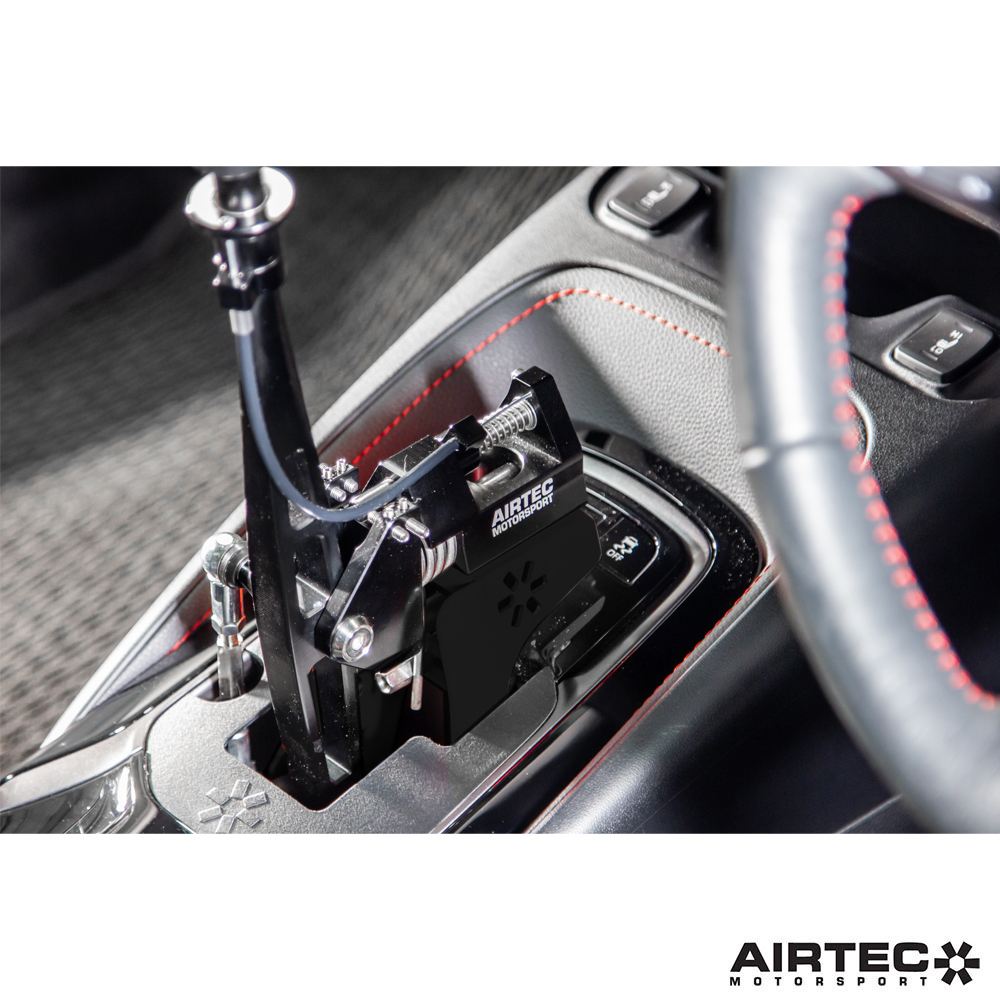

Installation does not require any modification or change to the car’s clutch or gearbox, and it is a direct fit part that is fully reversible, so there are no additional mounts or brackets to be cut, welded or fitted. The centre console can still be retained, and the shifter uses the existing gear cables and linkages. The comprehensive kit comes complete with a range of Allen Keys to fit/adjust the shifter and to give an OEM+ appearance, it also comes with a shifter surround panel to cover the lower mechanism.

Construction

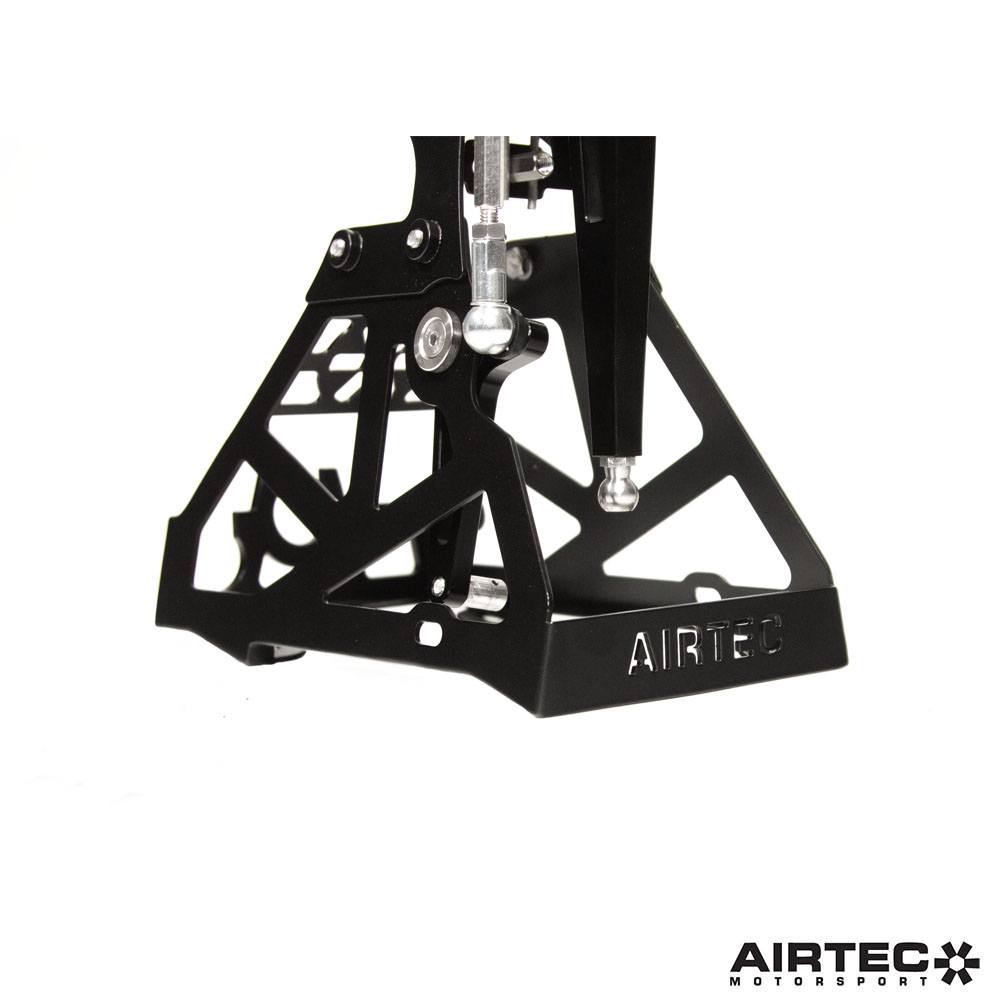

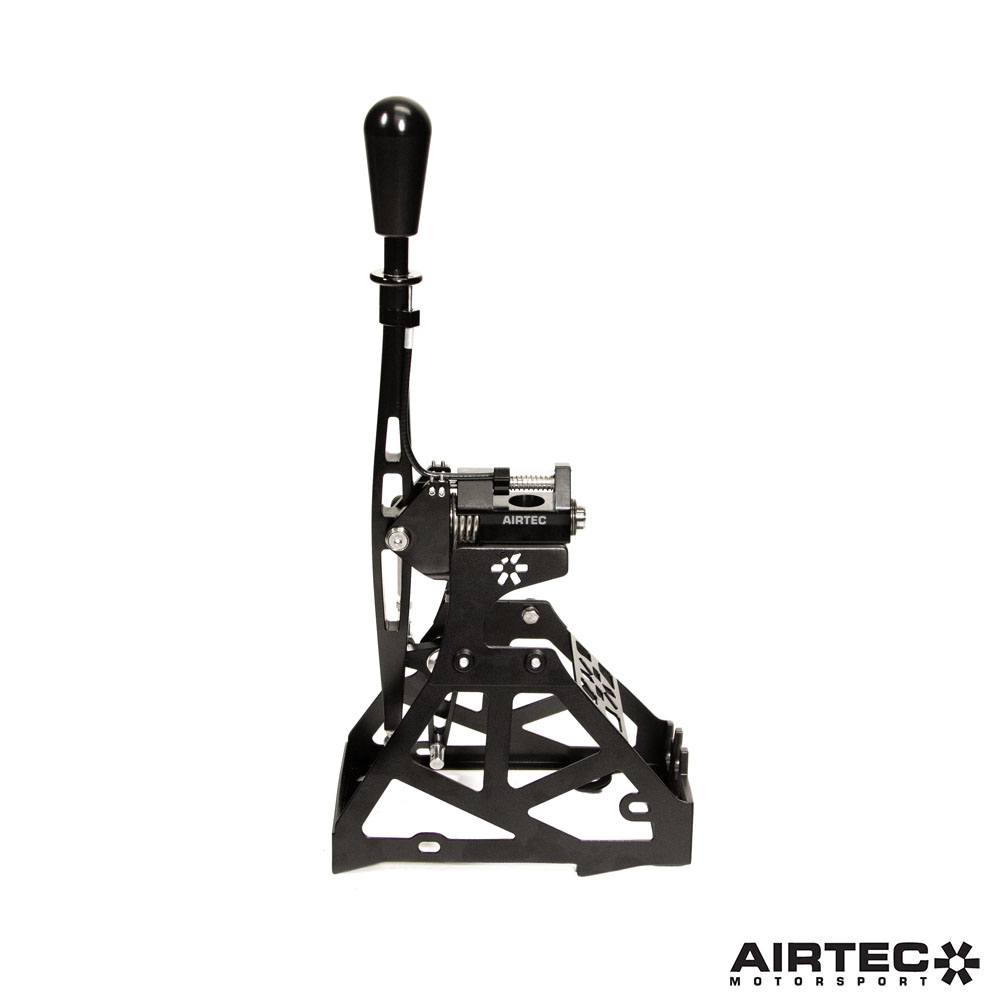

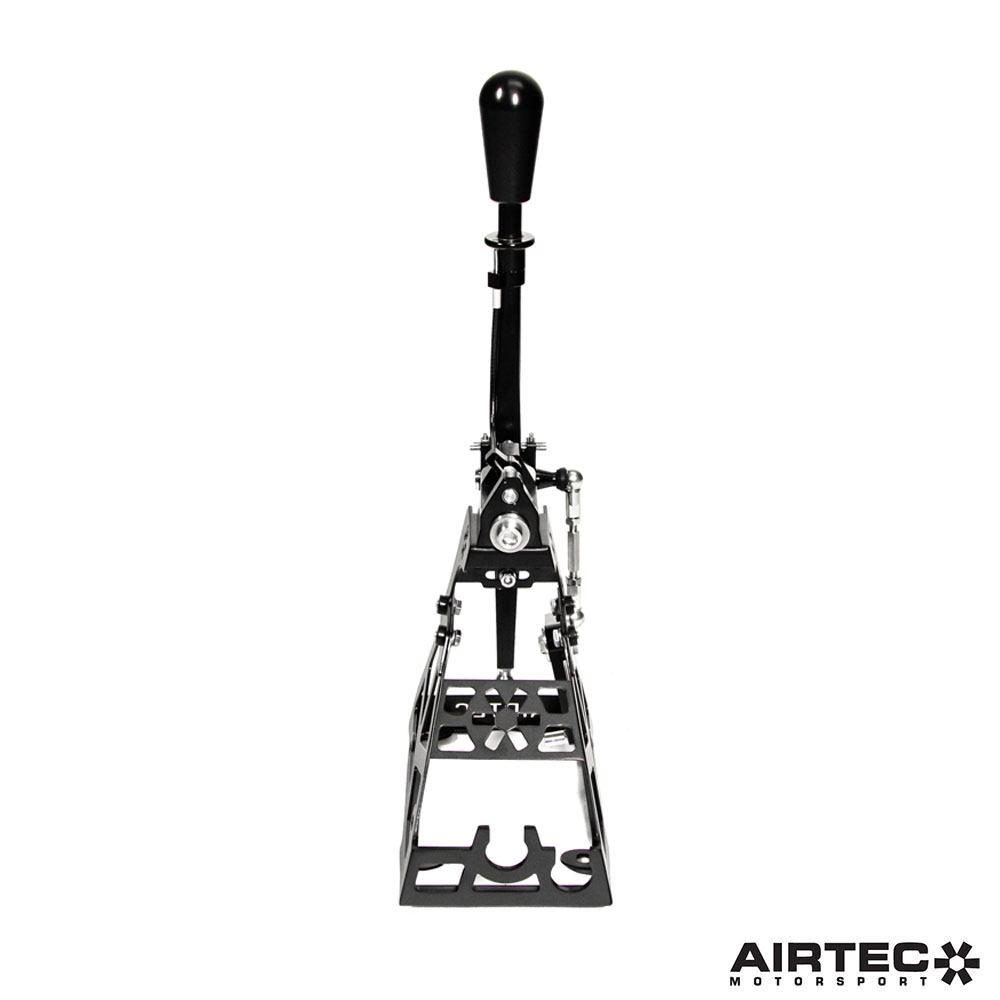

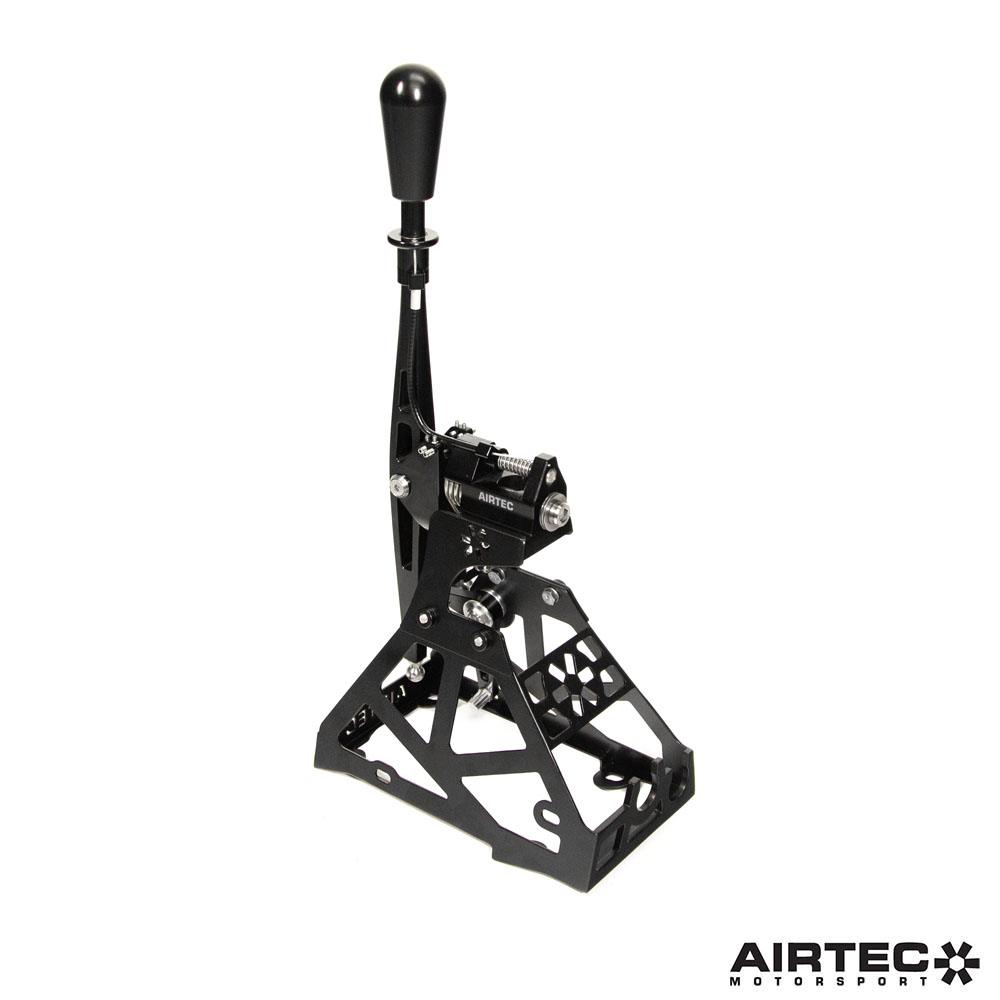

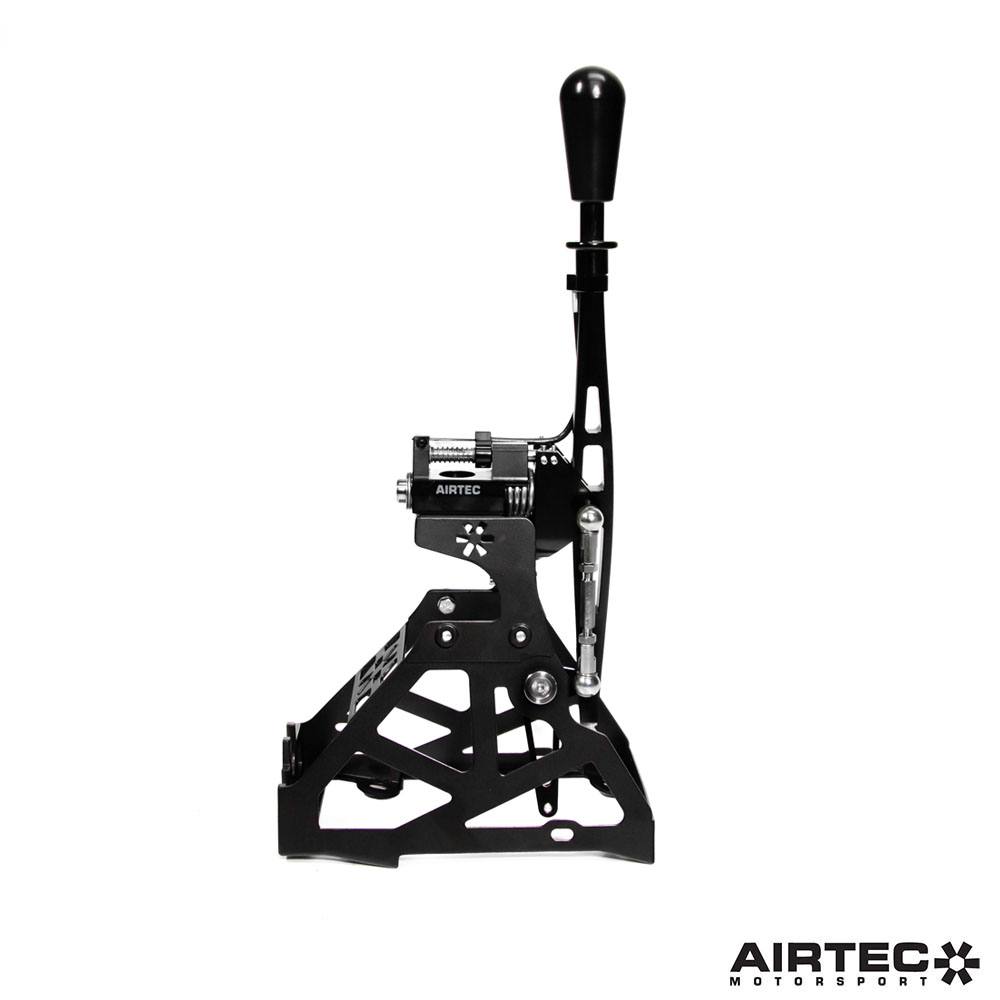

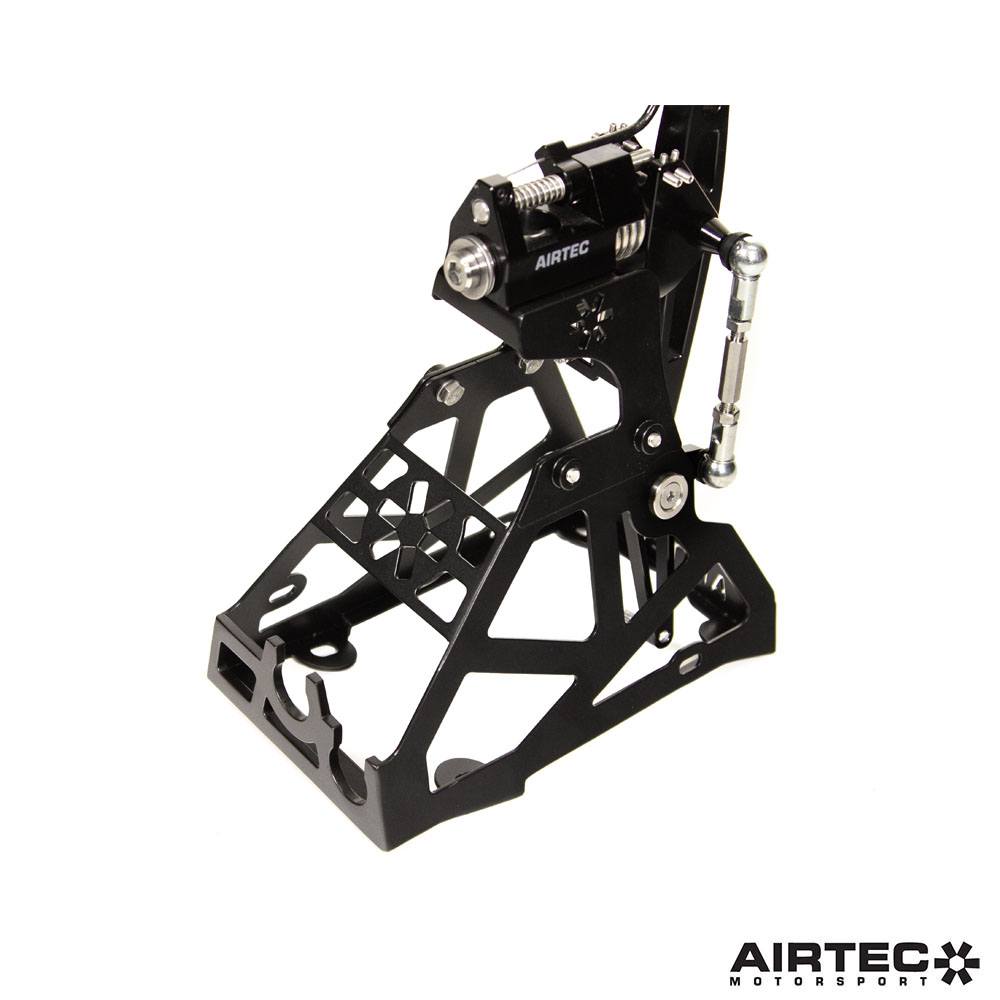

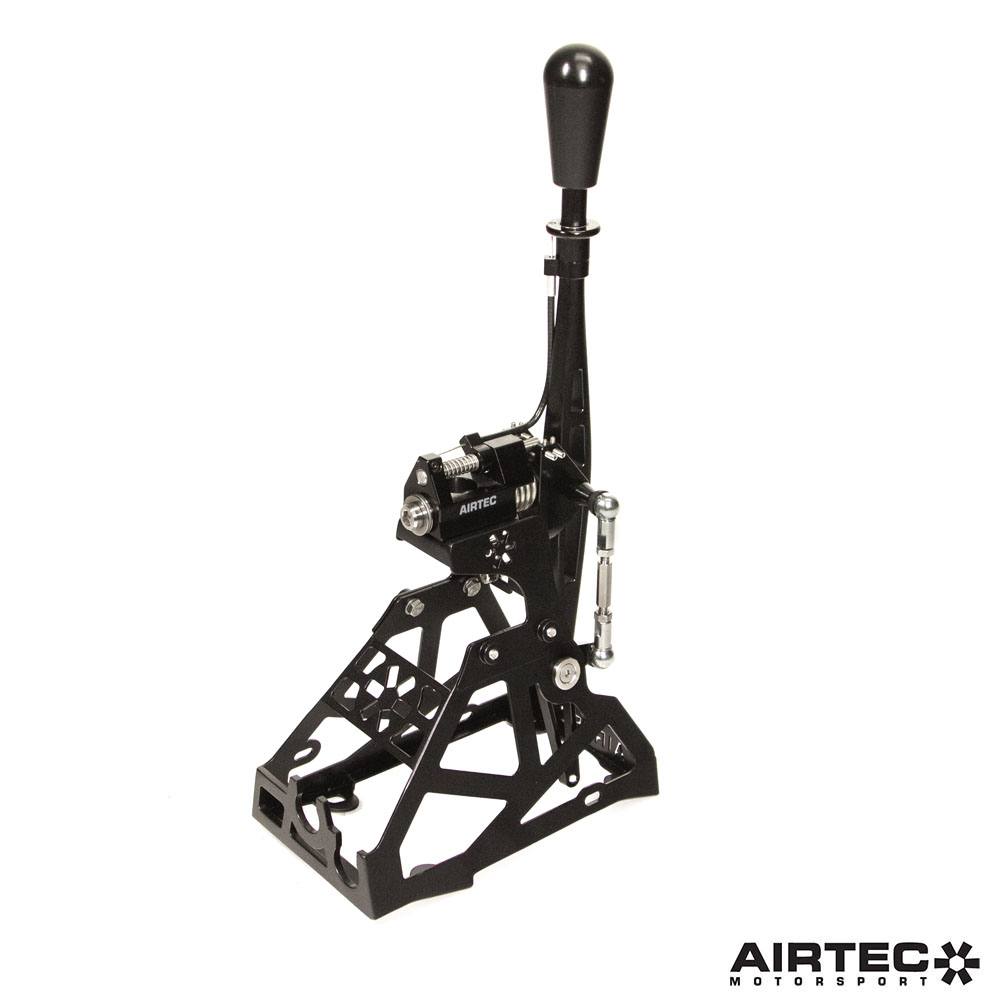

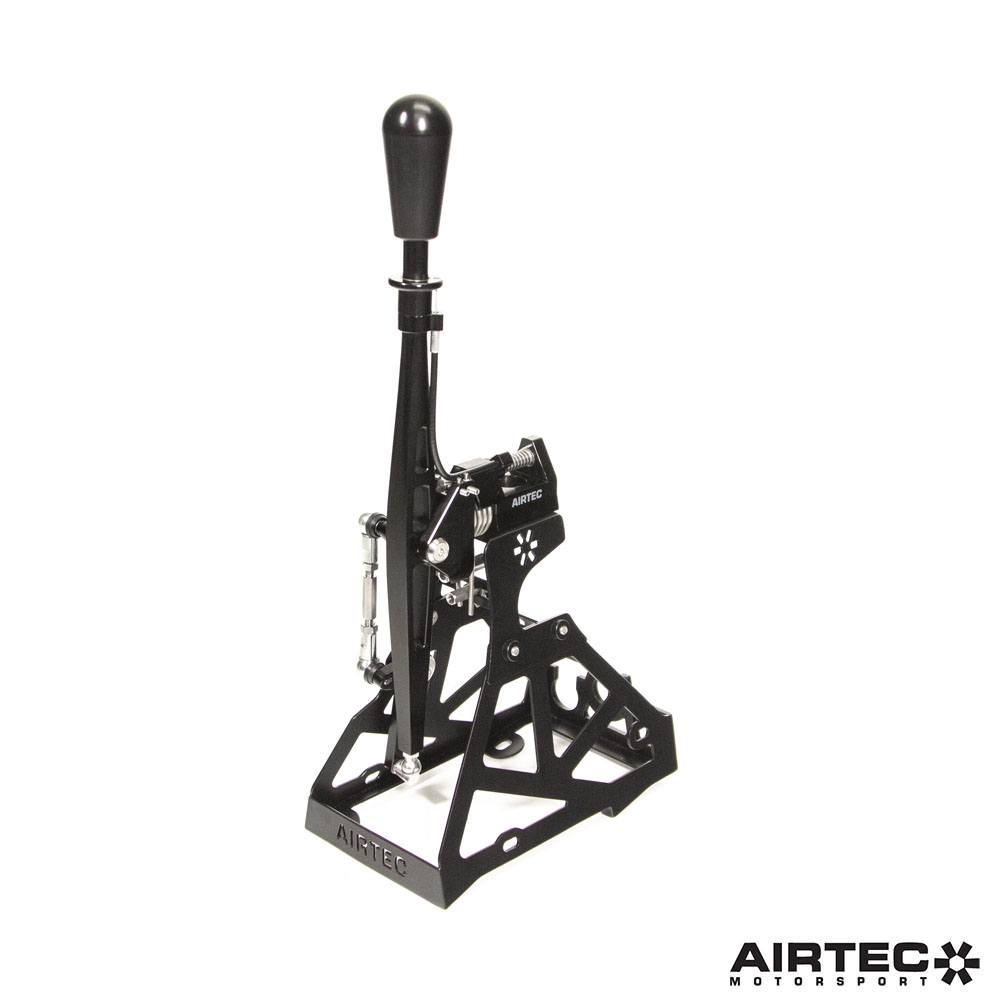

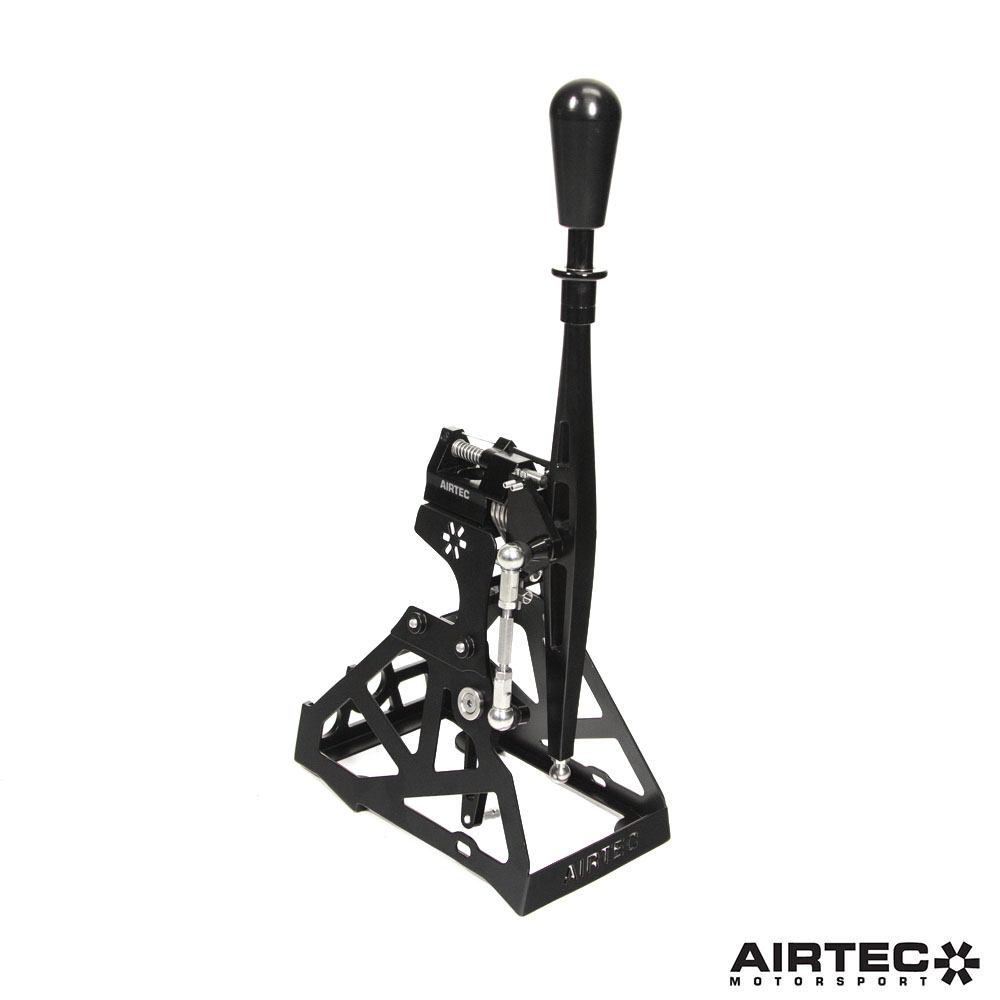

The shifter is constructed in two parts; the base and tower of which are made from laser-cut 3mm 304-grade stainless-steel, finished in powder coated black, to ensure the shifter remains completely rigid and will not flex during hard use. The top mechanism section, gear lever and gear knob are CNC-machined from high-tensile aerospace 7075-grade aluminium, finished in anodised black, whilst the shifters are assembled by hand at AIRTEC Motorsport HQ.

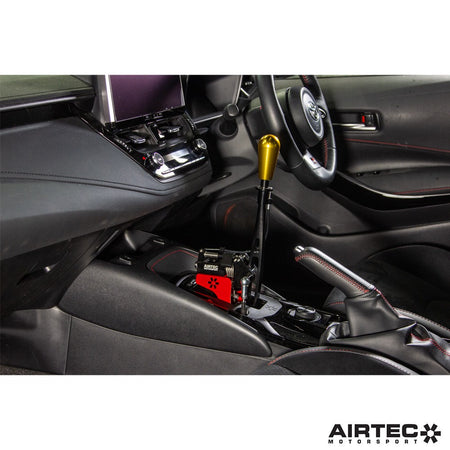

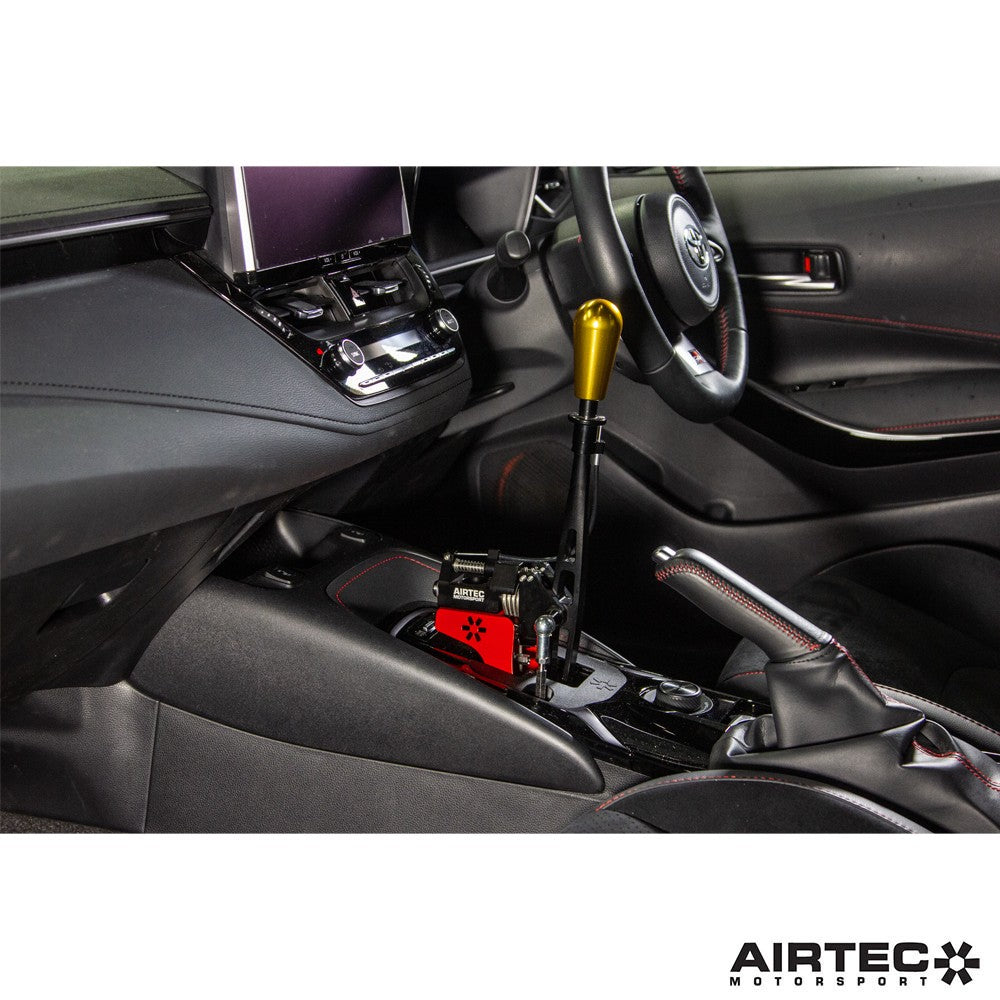

To tailor the look of the shifter to your car, gear knobs are available in a range of colours;

• Black
• Blue
• Gold
• Green
• Purple
• Red
• Silver
• Titanium

PLEASE NOTE:

• Shifters require setting up during the fitting process and will require maintenance, such as lubrication. Full fitting instructions can be found here.
• The Toyota Corolla GR requires minor trimming to the underside of the centre console that cannot be seen once in place.

Features:

• Designed specially for the Toyota Corolla GR model
• 40% reduction in throw to vastly decrease shifting time
• Massively improves and enhances your driving experience
• Eliminates any slack movement from the gear lever
• Perfect, positive and precise feel to every gear shift
• Raised gear lever also allows changes to feel more natural
• Heavy-duty, spring-loaded mechanism to self-centre the lever
• Reverse gear can only be selected by lifting up the safety collar
• Option to lock out certain gears for competition use
• Installation requires no modification or change to the clutch or gearbox
• Uses the existing gear cables and linkages – reversible if required
• Kit comes complete with a range of Allen Keys to fit/adjust the shifter
• Gear knob comes in a choice of eight different colours
• Base made in laser-cut 3mm 304-grade stainless-steel to ensure rigidity
• Mechanism, gear lever and gear knob are CNC-machined from aerospace 7075 aluminium
• Detailed installation guide included

Fits both left and right hand drive models.

AIRTEC part no: ATMSCGR6
