BD Diesel Transmission - 2007.5-2018 Dodge 68RFE 4WD C/W Billet Input Shaft

In stock
Regular price $12,255.00
Product INFO
  • Vendor BD Diesel
  • SKU T14.101155
  • Barcode 1064264B
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 1064264B


Market Description

  • Hard anodized valve body and new solenoid pack installed in every unit; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; Heavy duty cam & roller design low reverse one way clutch; New 4C billet spring retainer; Steel girdle added to 2C piston to allow for more clutches and broader apply area; BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum; Clutch count increased to hold high torque level - Over Drive 17% increase, Under Drive 20%, 2C 33% increase; BD reinforced accumulator plate; TCC limit valve machined and sleeved to address high wear area with in pump; BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex; BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
  • BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Every BD 68RFE is also build to withstand 250psi of line pressure for unrivaled torque holding capacity. Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque

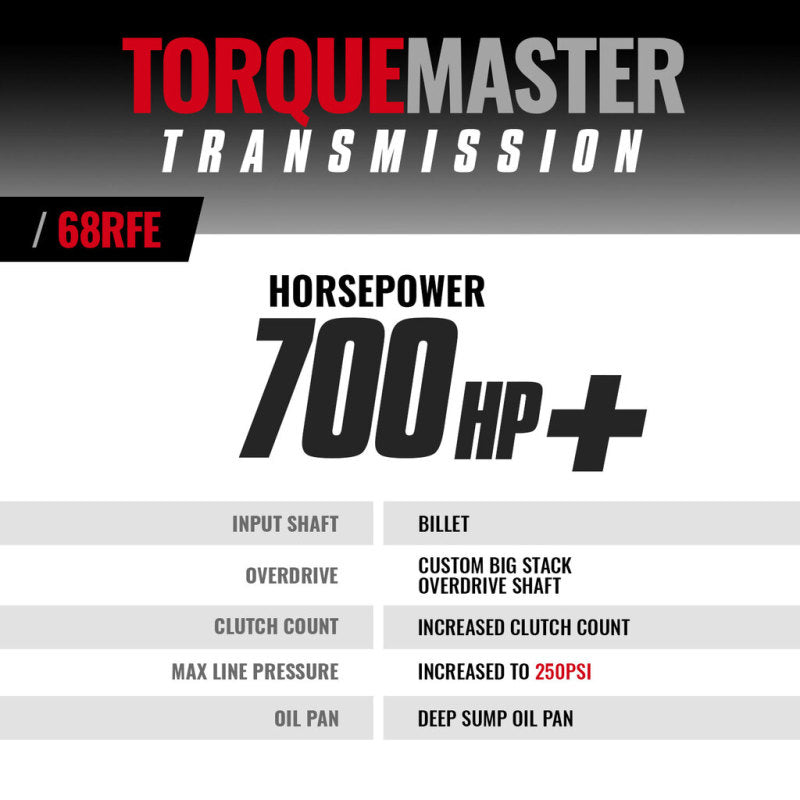

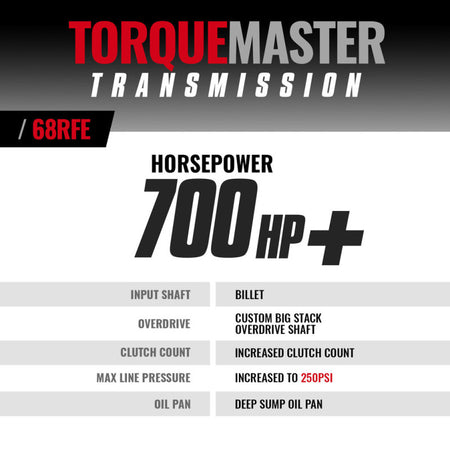

Features and Benefits

  • Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
  • BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
  • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
  • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
  • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
  • Steel girdle added to 2C piston to allow for more clutches and broader apply area
  • TCC limit valve machined and sleeved to address high wear area with in pump
  • Hard anodized valve body and new solenoid pack installed in every unit
  • Over Drive clutches 33% increase & 2C clutches 33% increase
  • Heavy duty cam & roller design low reverse one way clutch
  • Valve Body Separator Plate Stops Internal Cross Leaks
  • QT100 Pressure Plates For Increased Clutch Counts
  • 36 Month/150000 Mile Limited Warranty

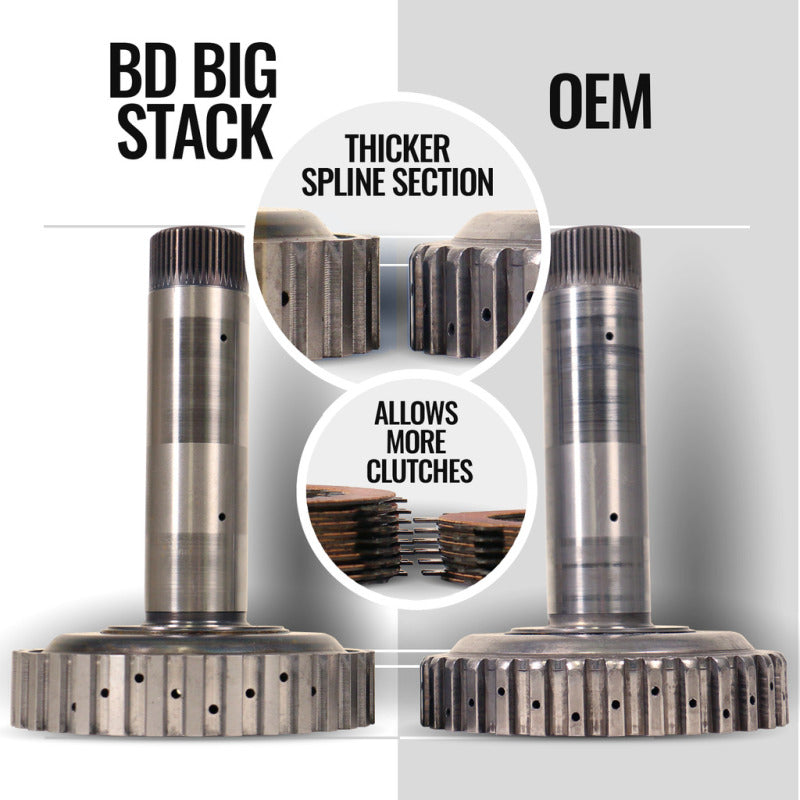

  • Custom Big Stack overdrive shaft
  • BD reinforced accumulator plate
  • New 4C billet spring retainer
  • Has Stronger Internals
  • No Race Abuse Covered

Product Description - Extended

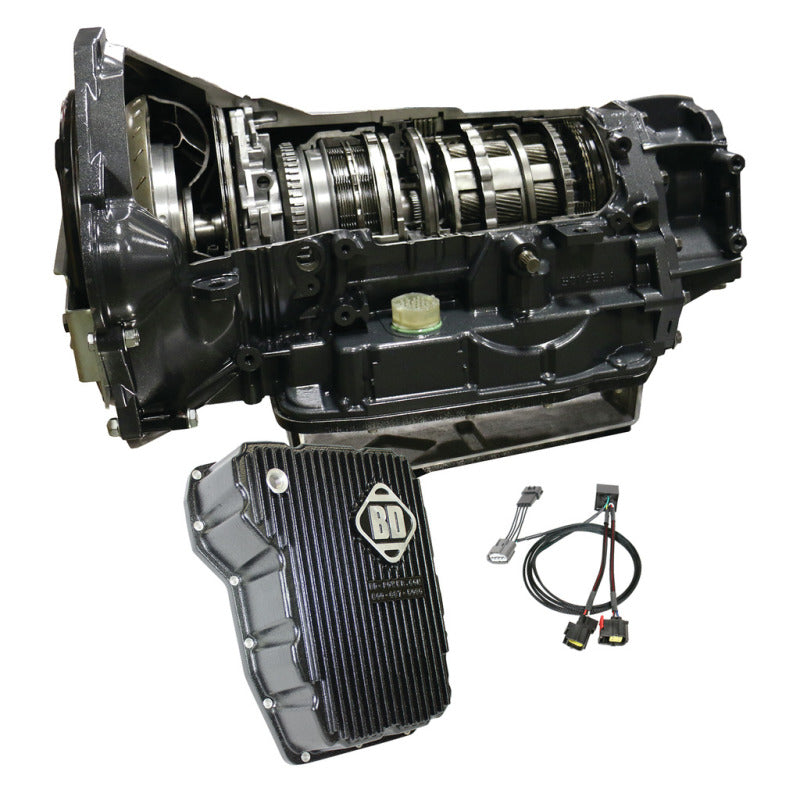

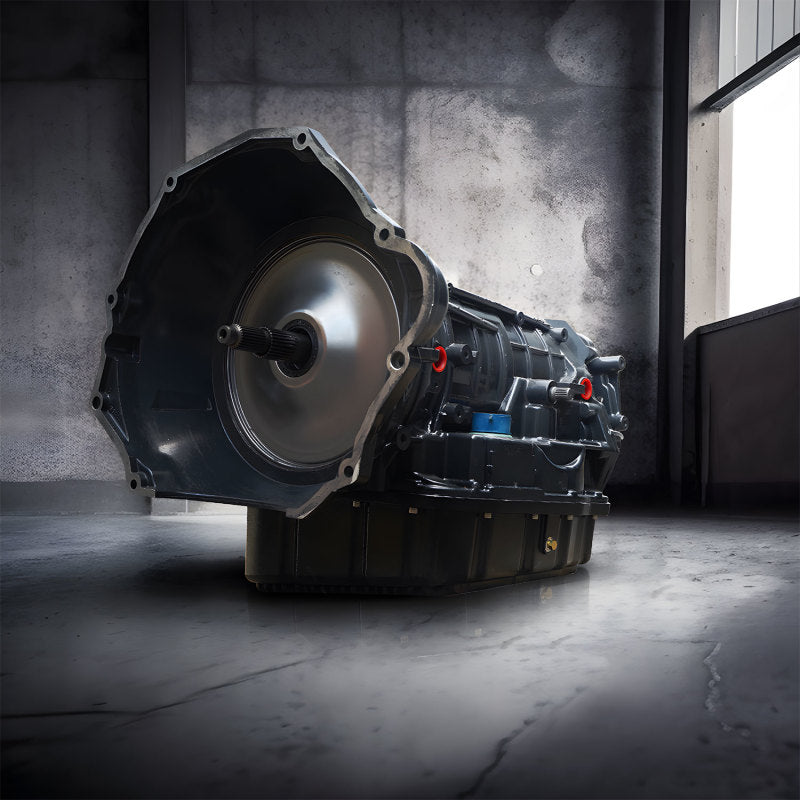

  • BD TorqueMaster Dodge 68RFE Transmission - 2007.5-2018 4wd c/w Billet Input Shaft
  • Transmission; Complete; w/Billet Input Shaft; Stage 5;

Product Description - Short

  • BD Diesel Transmission - 2007.5-2018 Dodge 68RFE 4WD C/W Billet Input Shaft
  • TRANSMISSION STAGE 5
  • Auto Trans Assembly

Product Description - Long

  • BD TorqueMaster Dodge 68RFE Transmission 2007.5-18 4wd
  • Transmission

Product Description - Invoice

TRANSMISSION 68RFE DODGE 2007-18 6.7 4WD

AAIA Part Type Description

Automatic Transmission Assembly
