CSF 2020 Toyota GR Supra (A90) Heat Exchanger

In stock
Regular price $1,225.00
Product INFO
  • Vendor CSF
  • SKU T14.371042
  • Barcode 8154
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 8154


Market Description

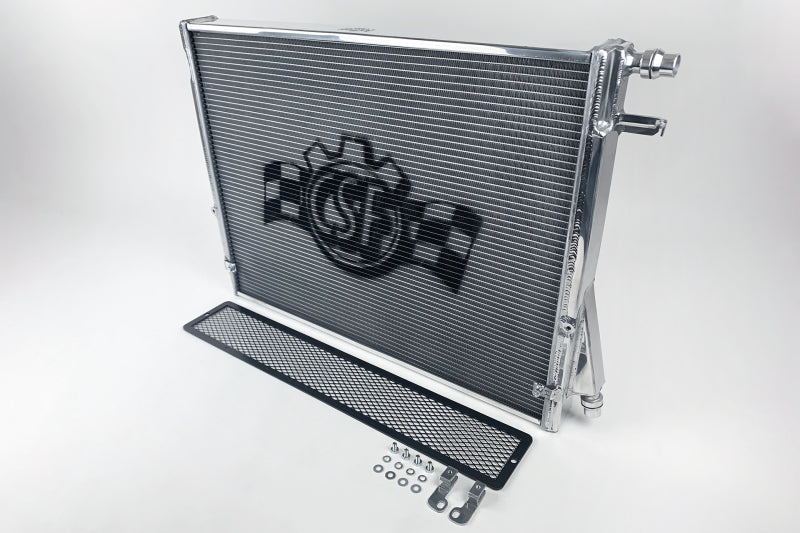

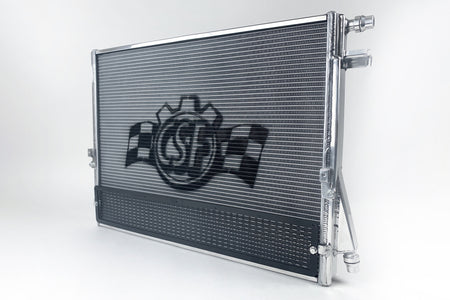

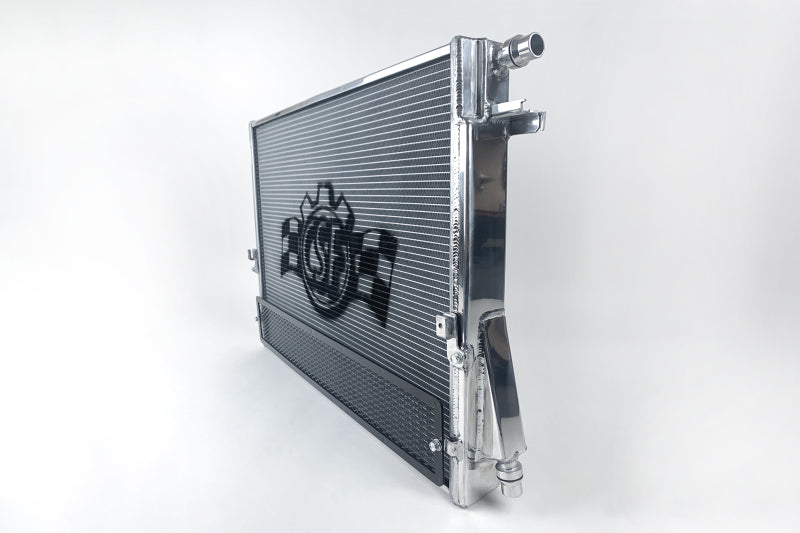

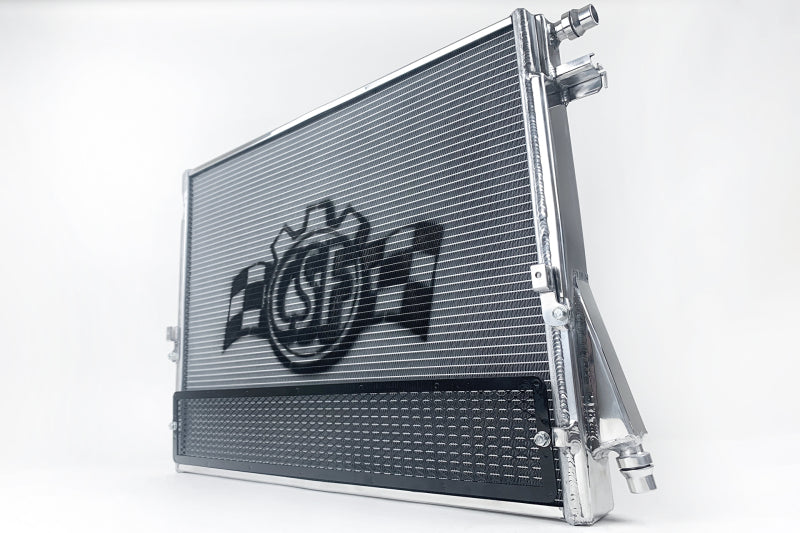

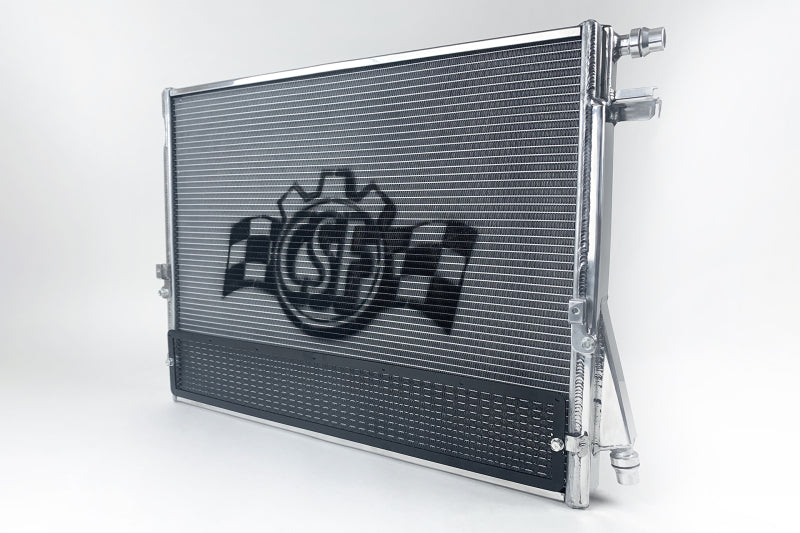

  • CSF's B58 high-performance heat exchanger will be a critical component to keeping your Supra/BMW's charge air cool, and out of limp mode. The upgraded heat exchanger is especially important when upgrading turbos and/or running performance tuning software. The original 2nd Gen B58 heat exchanger is a 1-row unit that is 25mm thick. In comparison, CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. The CSF improved design, includes billet transmission cooler mounts, and metal rock guard with improved airflow characteristics. CSF is the only company to include a rock guard and incorporate OEM transmission cooler mounting points for a true plug-and-play "drop-in" fit.
  • One of the most apparent problems for the 2nd gen B58 Motor is the liquid-cooled charge air cooler system quickly heat soaks with no ability to recover. This would cause the intake air temperatures (IATs) to spike, resulting in the ECU cutting the power output of the vehicle, and eventually putting the car into limp mode. CSF engineers witnessed the overheating issue first-hand as they were in attendance at the Global Time Attack Finals at Buttonwillow Raceway in November 2019. Several new heavily modified Supra racecars could barely go two or three laps in moderate ambient conditions without having the car go into limp mode, forcing drivers to take a cool down lap (or two), with some even coming into the pits to have their front mount heat exchangers sprayed down with cold water.

Associated Comments

The CSF #8154 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your Supra / BMW with a CSF Heat Exchangers.

Features and Benefits

  • Tested and Proven by CSF's Global Network of R&D Partners, Including Leading Time Attack Teams, Tuners, and Turbo Kit Manufacturers
  • 2-Row, 42mm Ultra High Performance Core & 6.5mm Tall Multi-Louvered Fin with CSF's Exclusive B-Tube Technology
  • Improves Air Flow to the Rest of the Cooling System for Both Lower Engine Coolant and Engine Oil Temperatures
  • Significantly Reduces Intake Air Temperature (IAT) for Maximum Performance (with Faster Heat Soak Recovery)

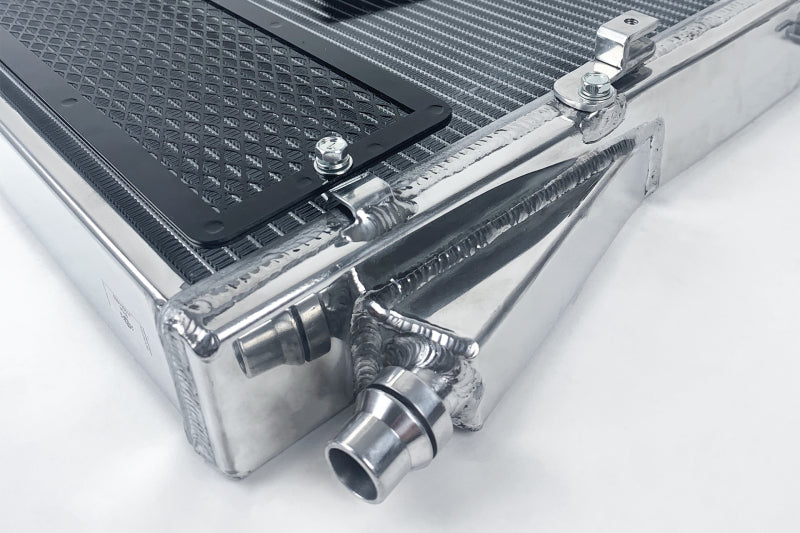

  • Includes Rock Guard & Transmission Oil Cooler Mounting Kit (Industry Exclusive)

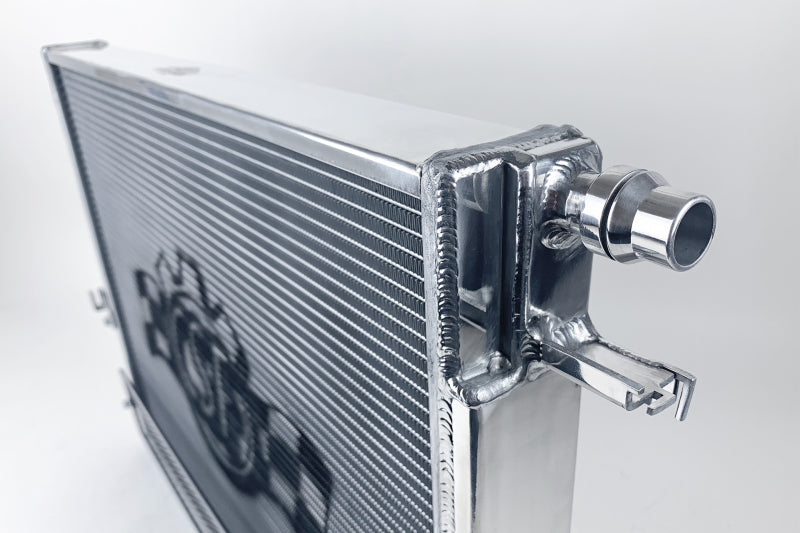

  • CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
  • 100% All Aluminum TIG-Welded Construction
  • 2-Year Limited Warranty
  • Smooth Satin Finish
  • "Drop-in" Fit

Product Description - Long

A90 Supra / BMW G-Series High-Performance Heat Exchanger w/ Rock Guard

Product Description - Short

  • CSF 2020 Toyota GR Supra (A90) Heat Exchanger
  • CSF Heat Exchanger

Product Description - Invoice

CSF 8154 - Supra / BMW Heat Exchanger

AAIA Part Type Description

Turbocharger Heat Exchanger
