CSF 2022+ Subaru WRX All Aluminum Radiator

Name: CSF 2022+ Subaru WRX All Aluminum Radiator
Brand: CSF
SKU: T14.721178
Price: 1015.00 NZD
Availability: OutOfStock

In stock

No reviews

$1,015.00

Product INFO

Vendor CSF
SKU T14.721178
Barcode 7224

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 7224

Market Description

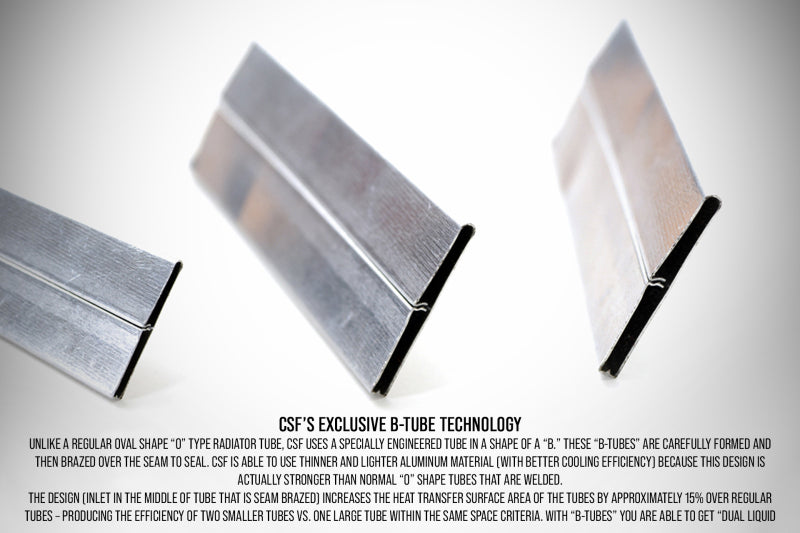

The 42mm 2-Row aluminum core increases the fluid capacity of the radiator by over 1 gallon (3.8L). A thicker core, second cooling row, and increased fluid capacity drastically improves the amount of heat the system can absorb and dissipate. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible cooling performance. The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.
Out of the box, the VB WRX is a well engineered and capable vehicle. That being said, it still has its shortcomings. The factory cooling system is capable of keeping up with spirited driving and a daily commute. However, it starts to show its limitations when pushed hard on the track or when tuning is involved. From a quick flash tune to full big turbo builds, more cooling is always beneficial. That is why CSF is pleased to announce the new High-Performance All-Aluminum Radiator for the 2022+ Subaru WRX. Available in a 1-Hour "Mirror Finish" Hand Polish (#7224) & Satin Black Finish (#7224B).
Having a High-Performance Radiator also becomes very important when converting from a factory style top mount intercooler to a front mount intercooler system. Moving the intercooler in front of the radiator restricts airflow and increases the temperature of air flowing through it. These factors are often overlooked but you need to compensate for both air restriction and higher air temperatures flowing through the radiator. The best solution is to upgrade to a CSF High-Performance Radiator.
CSF has long been one of the most popular manufacturers for High-Performance Subaru Radiators. This history includes making many private label oil coolers, intercoolers, and more for some of the most popular Subaru Tuning Companies. So whether you are racing on track, rally racing in the dirt, overlanding, or just doing some spirited driving through country roads, a high-performance radiator will help keep your WRX running at optimal temperatures.
The original OE radiator from Subaru is a plastic tank with a single row aluminum core design. While this is generally accepted as good quality and durable, it is not the best option for high horsepower builds or hard driving. Also, Turbo cars get hot, and the FA24 is no exception. Anything you can do to help keep coolant temps in check will improve the longevity of your engine and help the car run smoothly.

Associated Comments

The CSF #7224 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

Product Description - Extended

CSF manufactures the most advanced and efficient radiator in the industry for your WRX. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Features and Benefits

6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
Cooling Tubes with CSF's Exclusive B-Tube Technology
100% All Aluminum TIG-Welded Construction
2-Row, 42mm Ultra-High-Performance Core
Individually Leak and Pressure Tested
1-Hour "Mirror Finish" Hand Polish
2-Year Limited Warranty

Product Description - Long

2022+ Subaru VB WRX High-Performance All-Aluminum Radiator

Product Description - Short

CSF 2022+ Subaru WRX All Aluminum Radiator
CSF Radiator

Product Description - Invoice

CSF 7224 - VB WRX Radiator

AAIA Part Type Description

Radiator
