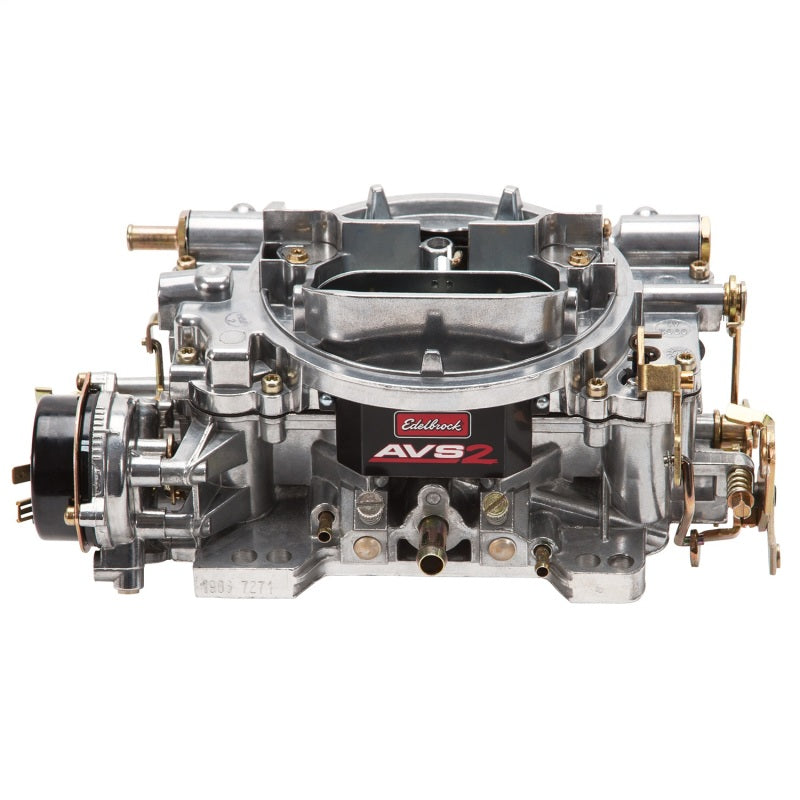

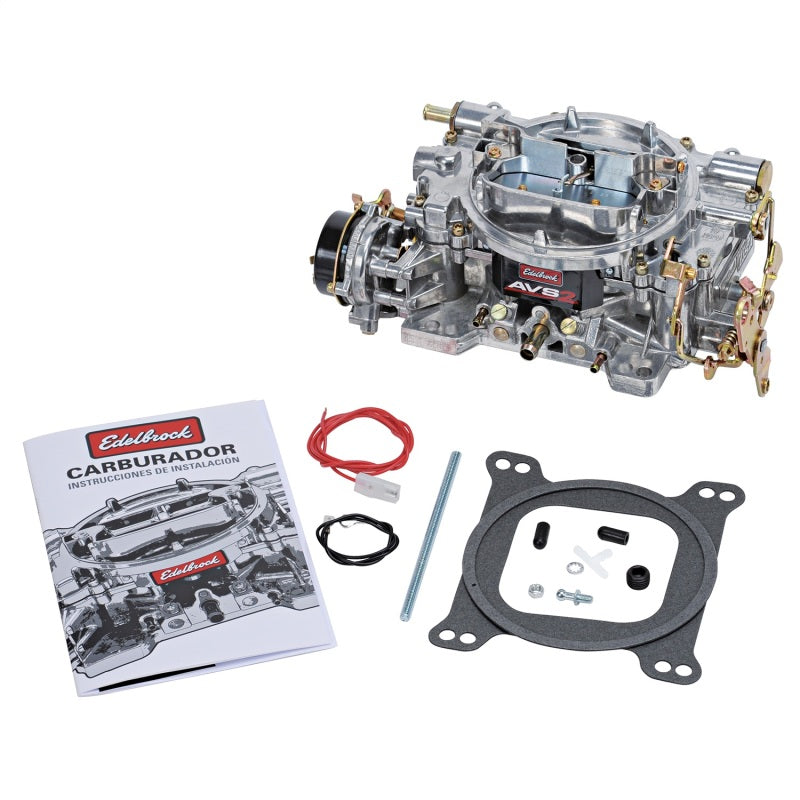

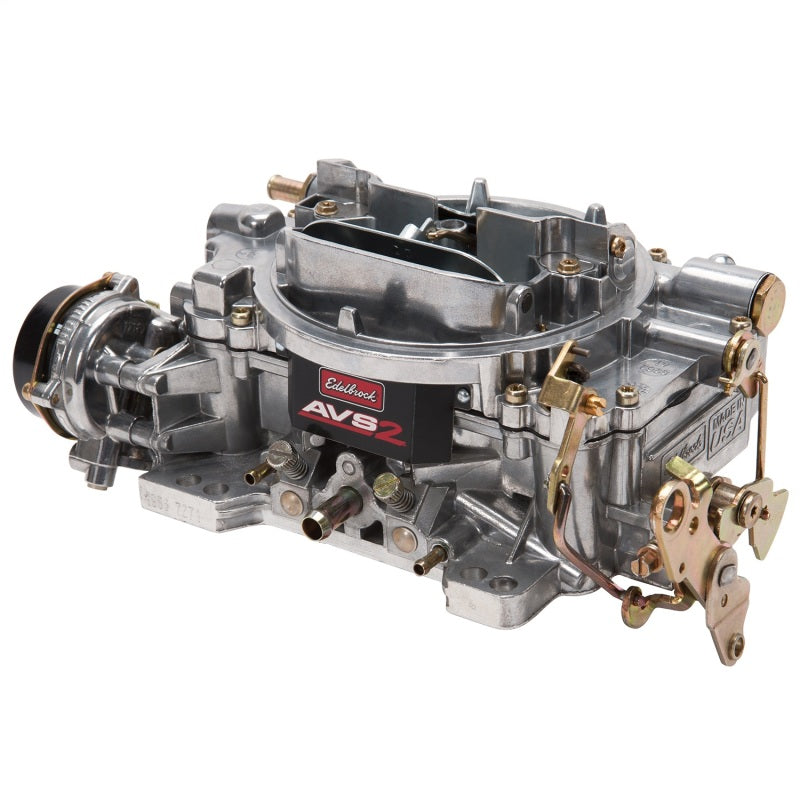

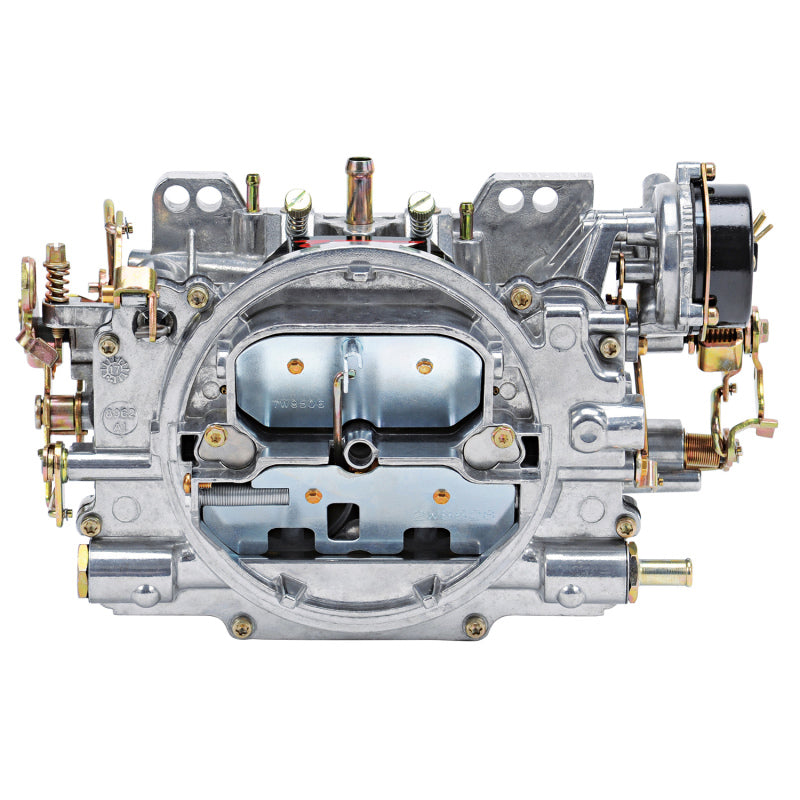

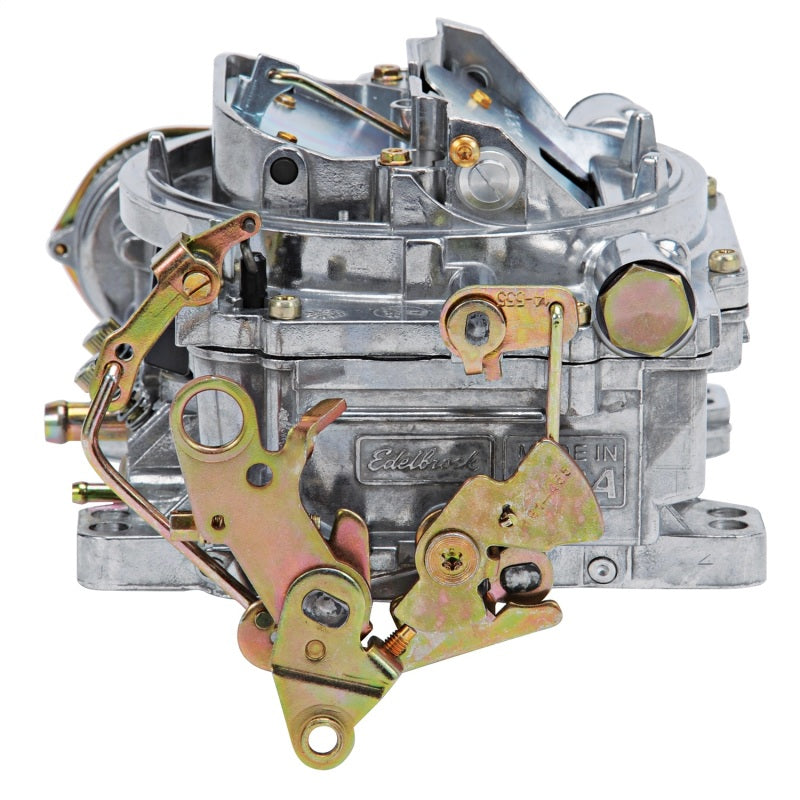

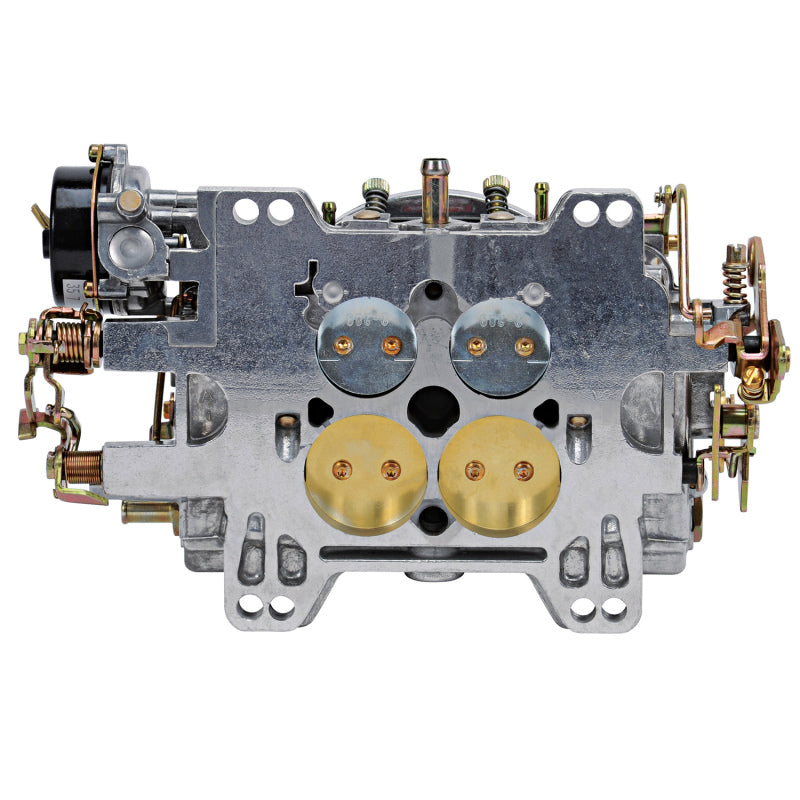

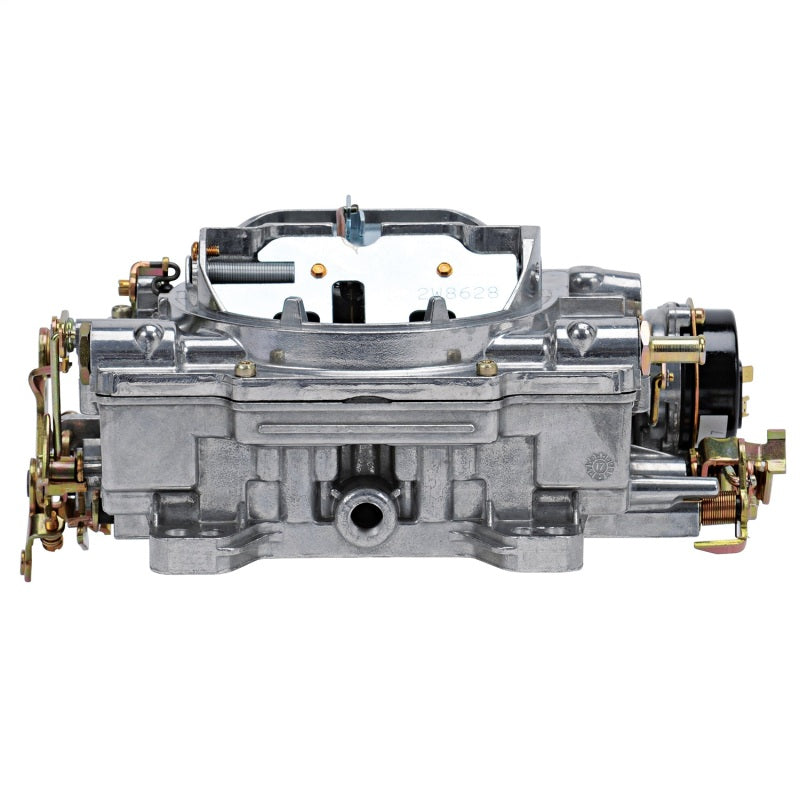

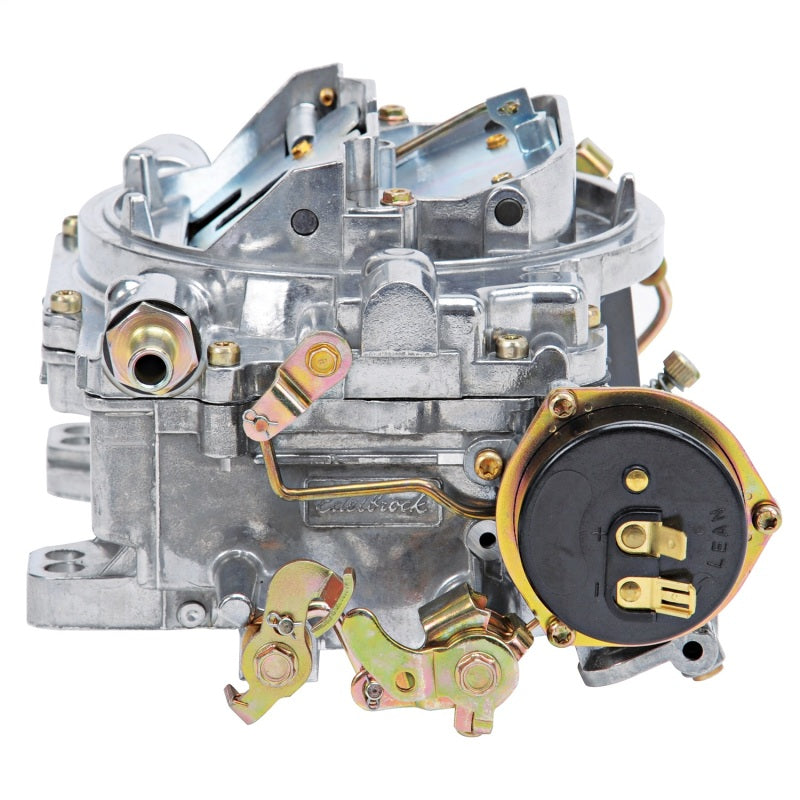

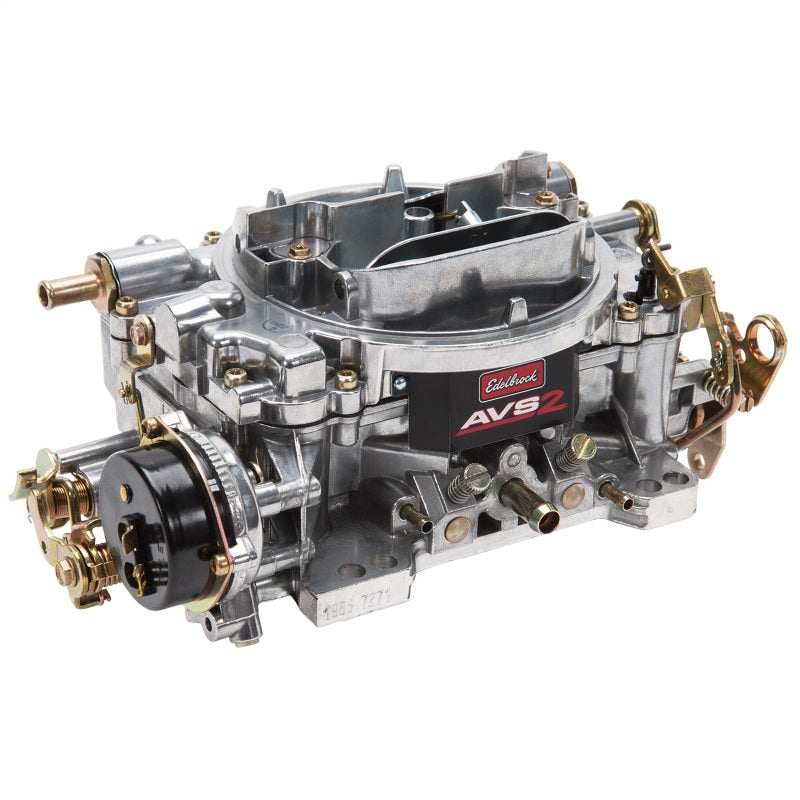

Edelbrock 650 CFM Thunder AVS Annular Carb w/ Electronic Choke

Manufacturer Part # : 1906

Market Description

• The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets, .070 x .037 metering rods, orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063.
• The Edelbrock #1906 AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock #1906 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets ? Primary .101, Secondary .098; Metering Rods ? .070 x .037; Step-Up Spring ? orange (5" Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design.

Key Search Words

19064; Edelbrock; carburetor; carb; AVS2 series; AVS2; 4-barrel; square-bore; square flange; 650 cfm; 650 carb; 4150; EPS; leak free design; holds tune; electric choke; Performance; Qwik-Tune; Qwik-Tune Secondary Air Valve; EnduraShine

Features and Benefits

• Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063.
• The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM.
• Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance.
• It comes with: .101 primary and.098 secondary metering jets; .070 x .037 metering rods; orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed.
• The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle.
• The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds.
• The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance.
• For Single Or Dual Plane Intake Manifolds

Product Description - Extended

• The Edelbrock #1906 AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines.
• CARB; AVS2 ANNULAR BOOSTERS 650 CFM ELETRIC CHOKE

Label Description

• AVS2 Carburetor #1906 650 CFM With Electric Choke; Satin Finish (Non-EGR)
• AVS2 Carburetor #1906 650 CFM With Electric Choke, Satin Finish (Non-EGR)

Product Description - Long

• AVS2 650 CFM #1906 Carburetor with Electric Choke in Satin (non-EGR)
• AVS2 Series™ Carburetor

Product Description - Short

• Edelbrock 650 CFM Thunder AVS Annular Carb w/ Electronic Choke
• CARB-AVS

Product Description - Invoice

Edelbrock AVS2 650 CFM Carburetor

Shipping Restrictions

{ eo : 3in.}

AAIA Part Type Description

Carburetor

Product Description - Abbreviated

CARB
