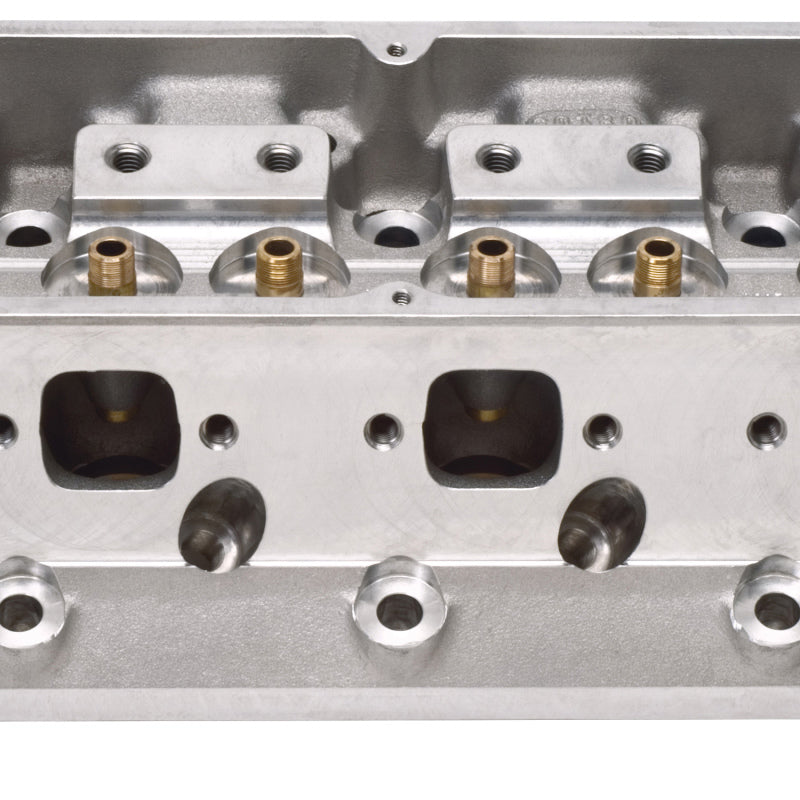

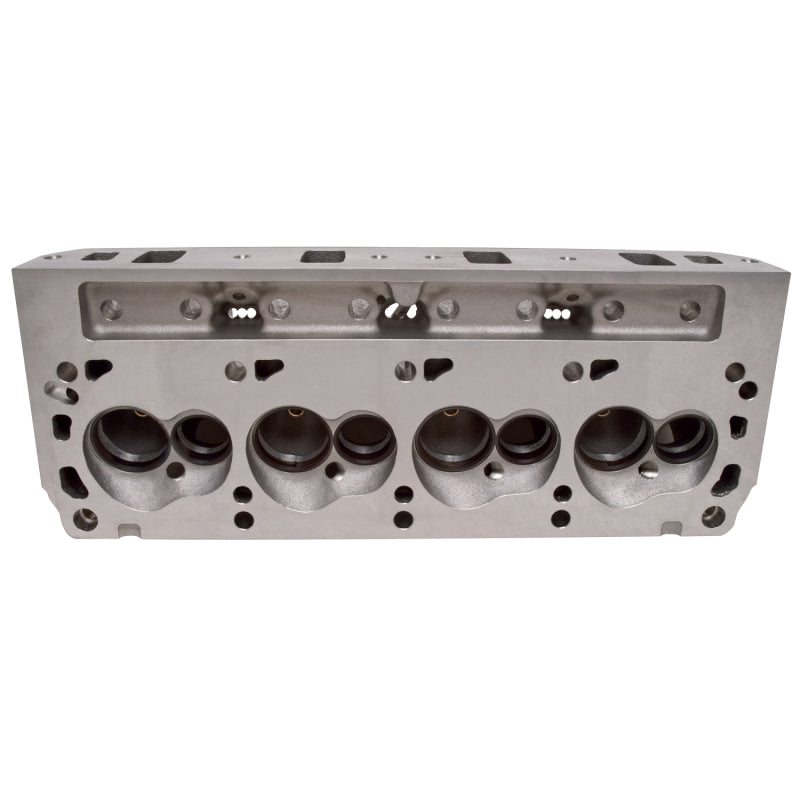

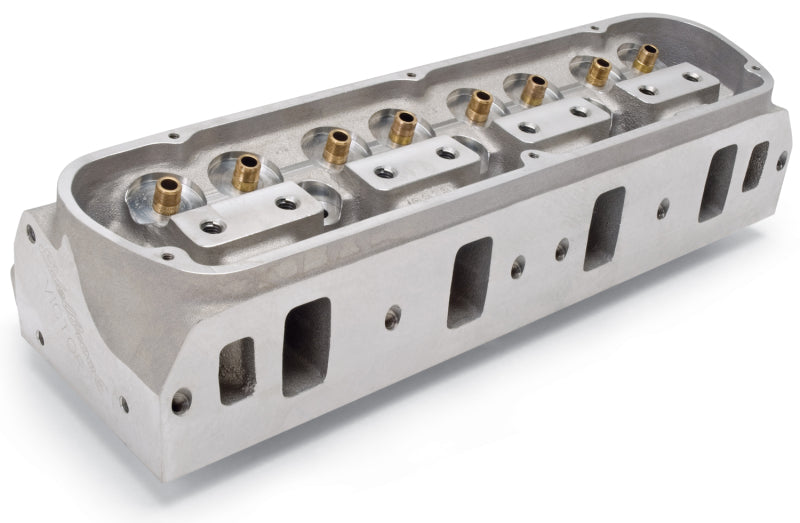

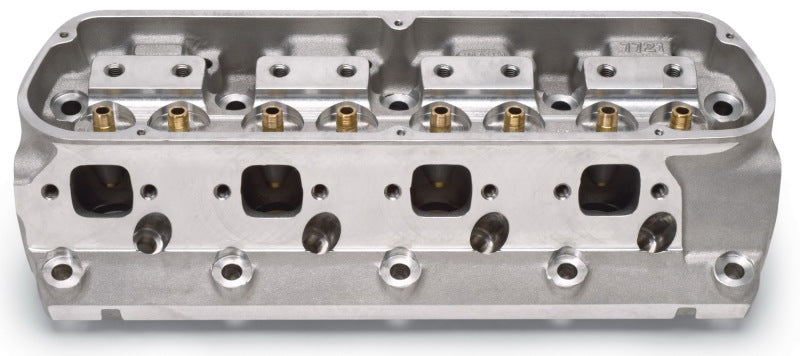

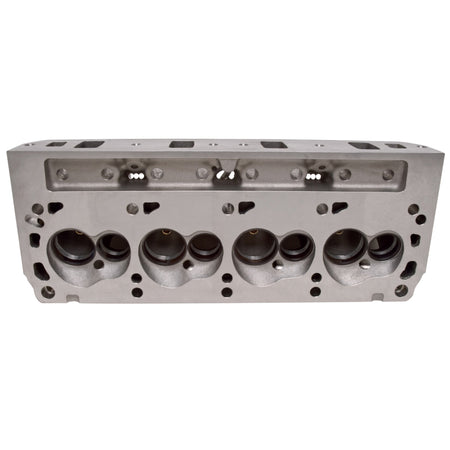

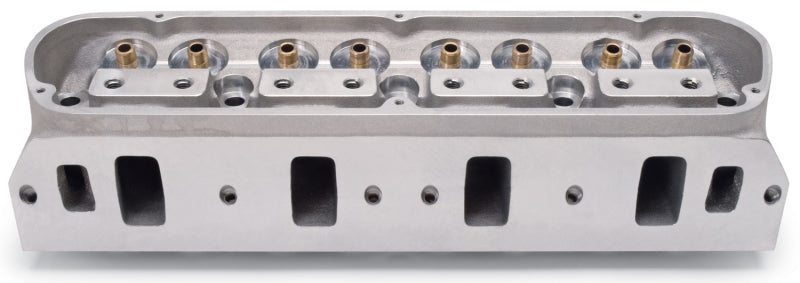

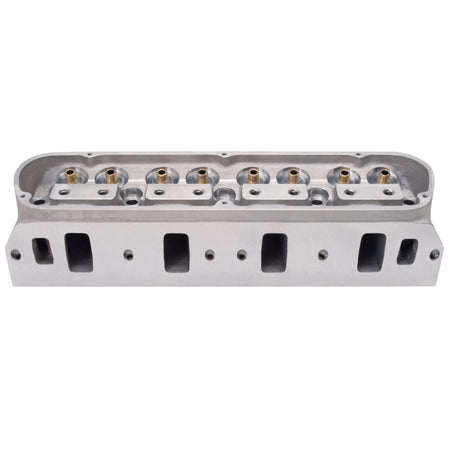

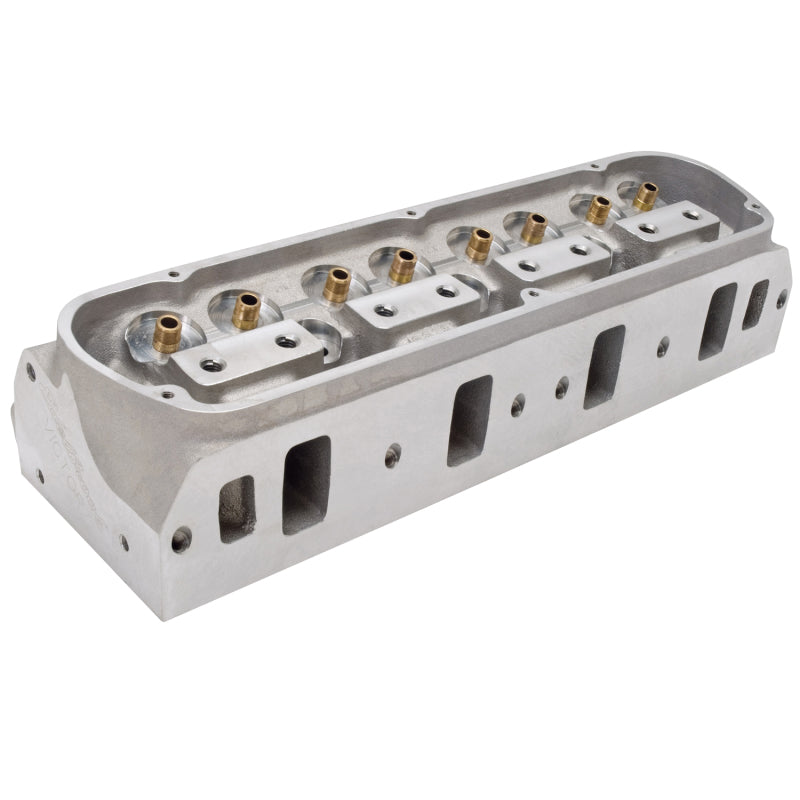

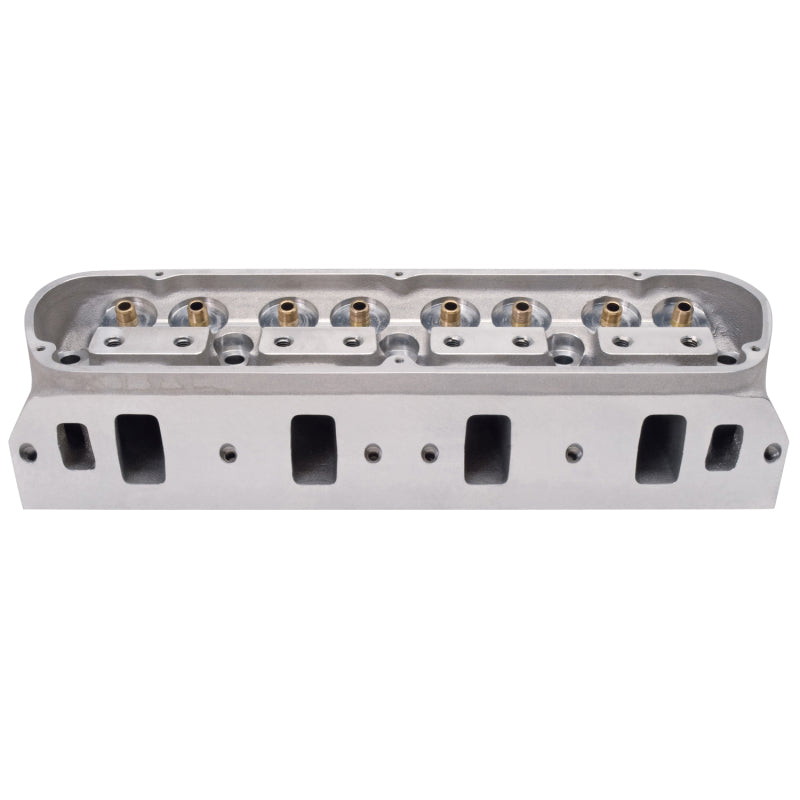

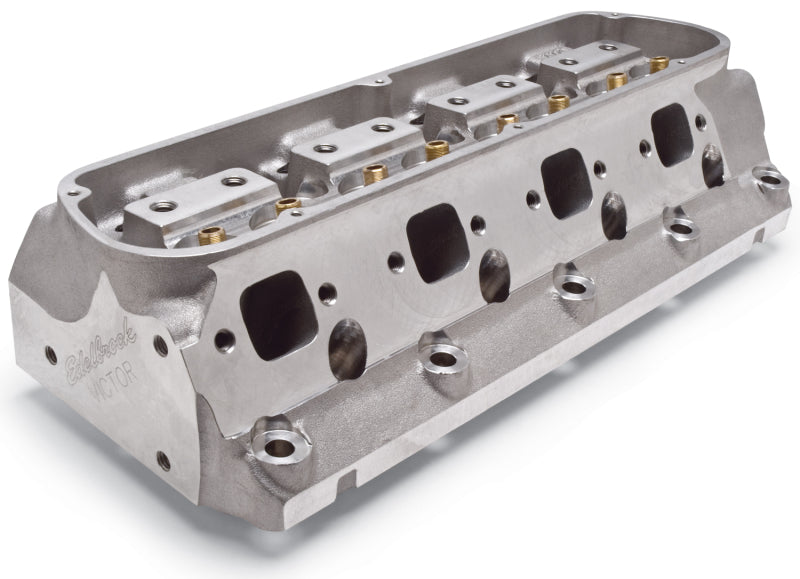

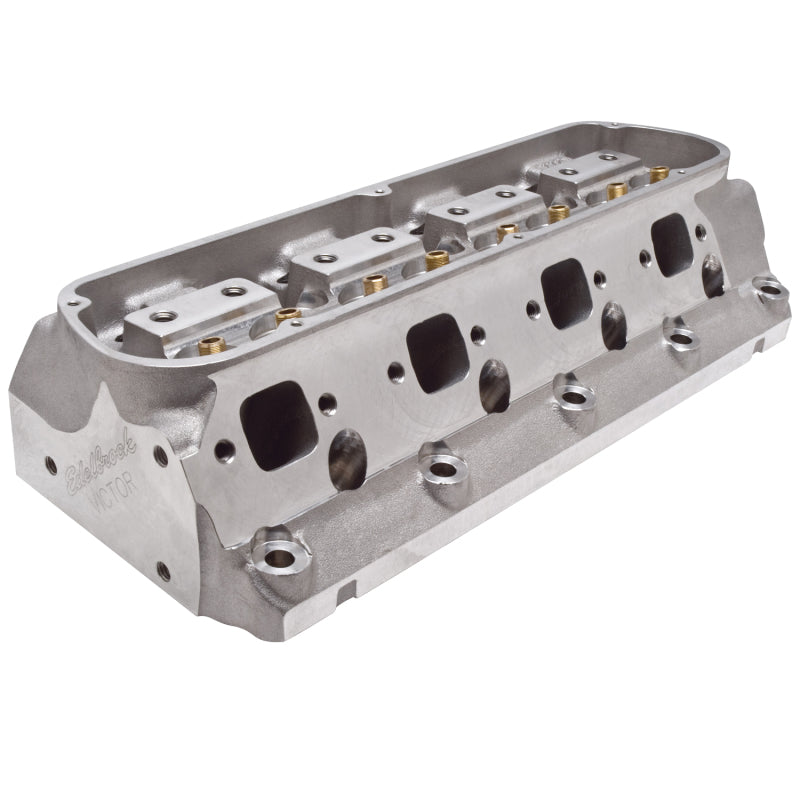

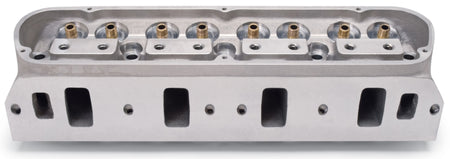

Edelbrock Single Victor SBF Head Bare

In stock
Regular price $1,371.00
Product INFO
  • Vendor Edelbrock
  • SKU T14.128911
  • Barcode 77219
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 77219


Market Description

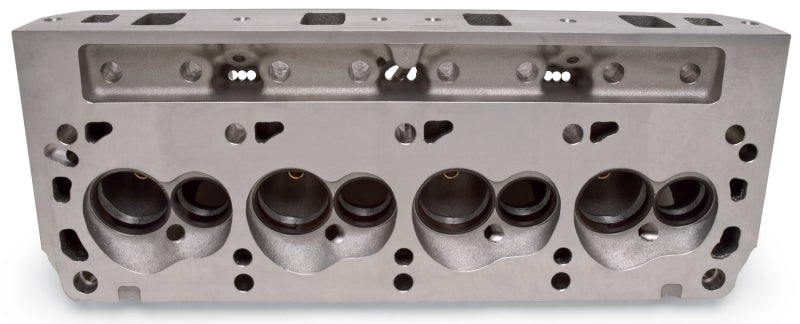

  • The Edelbrock part #77219 Victor 15 Deg Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289 - 351+ cubic inch based engines. The inline valve configuration features a 15 Deg valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"; however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. This head requires shaft mounted rockers; please contact Jesel or T&D for details. Features include 47cc combustion chambers, ductile iron interlocking valve seats, manganese-bronze valve guides and requires professional preparation. Edelbrock recommends 2.125" intake valves and 1.625" exhaust valves with 5.45" overall length.
  • The Edelbrock part #77219 Victor 15 Deg Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289 - 351+ cubic inch based engines. The inline valve configuration features a 15 Deg valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"
  • please contact Jesel or T&D for details. Features include 47cc combustion chambers, ductile iron interlocking valve seats, manganese-bronze valve guides and requires professional preparation. Edelbrock recommends 2.125" intake valves and 1.625" exhaust valves with 5.45" overall length.
  • however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. This head requires shaft mounted rockers

Product Description - Extended

  • Edelbrock part #77219 Victor Semi-Finished 15 Degree is a bare cylinder head designed for S/B Ford 289-351W engines. The inline valve configuration features a 15 degree valve angle and a modern combustion chamber.
  • VICTOR SBF HD BARE

Key Search Words

Edelbrock; LT-4; Gen V; Cylinder Head; Chevy; Chevrolet; SBC

Features and Benefits

Max Valve Size is 2.125 in. Int. And 1.625 in. Exh.

Label Description

Victor Jr Small-Block Ford Cylinder Head Bare

Application Summary

Ford:Small-Block:289 (4.7L)-351W (5.8L)

Product Description - Short

  • Edelbrock Single Victor SBF Head Bare
  • CYL HEADS-RACE

Product Description - Long

Victor Series Cylinder Head

Product Description - Invoice

Edelbrock SBF Cylinder Head

AAIA Part Type Description

Engine Cylinder Head

Shipping Restrictions

{ eo : 2in.}

Product Description - Abbreviated

Cyl. Head
