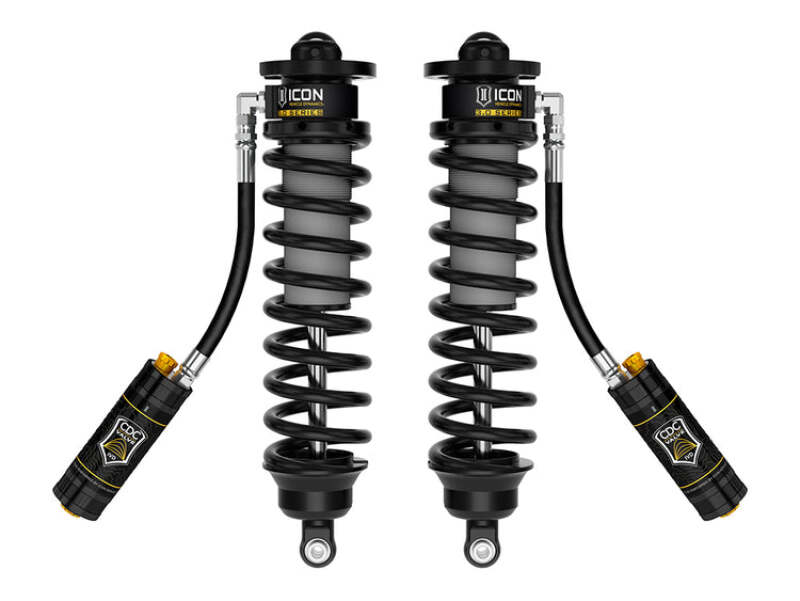

ICON 05-26 Ford F-250/350 SD 4WD 4-5.5in 3.0 Series VS RR CDCV Bolt-In Coilover Conversion Kit

Manufacturer Part # : 61801C

Market Description

ICON's V.S. 3.0 Series Remote Reservoir CDCV Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2026 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks, or mobbing across the desert at full throttle.

Product Description - Extended

ICON's 2.5 Series Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to Ford Super Duty trucks. They have been designed to increase the overall damping ability while also allowing ride height adjustment.

Associated Comments

• APPLICATION NOTE #463: If installing with ICON 2.5 Series or 3.0 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
• APPLICATION NOTE #469: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
• APPLICATION NOTE #471: 2023-2026 Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
• Recommended Aftermarket Tires (2017-2026 models): 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
• APPLICATION NOTE #468: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 4.75-6.25" over stock
• APPLICATION NOTE #473: 2023-2026 Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
• APPLICATION NOTE #470: 2023-2026 Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
• APPLICATION NOTE #472: 2023-2026 Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
• Recommended Aftermarket Tires (2005-2016 models): 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
• APPLICATION NOTE #467: 2005-2019 Super Duty diesel models will have front lift height range of 4-5.5" over stock
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel
• APPLICATION NOTE #1: Only fits 4WD models
• Factory Wheels & Tires Fitment: Yes

Features and Benefits

• One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
• ICON engineered coil springs guaranteed for life against sagging or breakage
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• FK Rod End bearings for extended longevity and minimal deflection
• 7/8” diameter induction hardened, chrome plated shock shaft
• Coilover conversion allows for addition of secondary shock
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Bolt-in system fits in OE coil bucket location
• Fully rebuildable and revalveable

Product Description - Short

• ICON 05-26 Ford F-250/350 SD 4WD 4-5.5in 3.0 Series VS RR CDCV Bolt-In Coilover Conversion Kit
• FSD COILOVER KIT

Product Description - Long

05-26 FSD 4WD 4-5.5" 3.0 VS RR CDCV BOLT IN CO CONVERSION KIT

AAIA Part Type Description

Coilover Set

Product Description - Invoice

61801C
