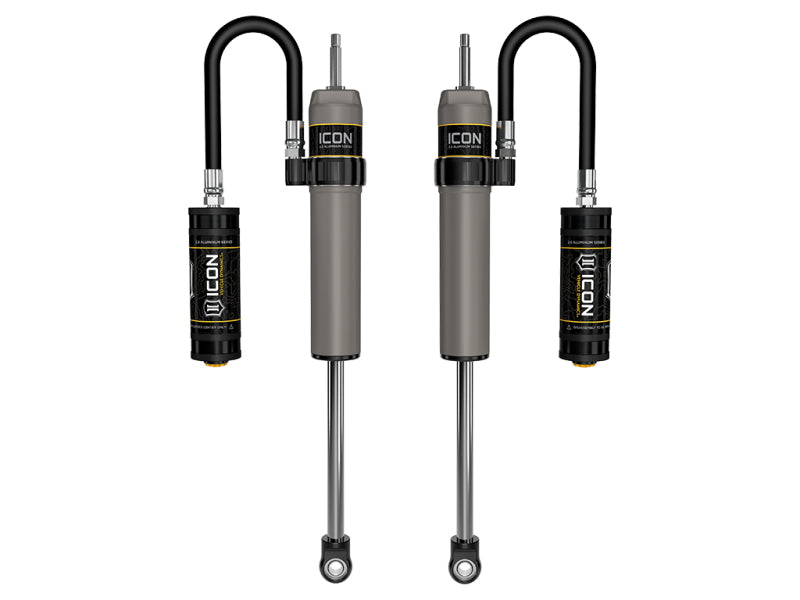

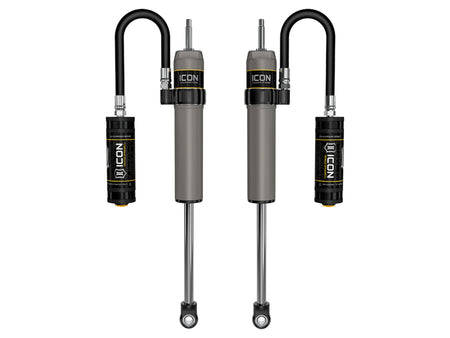

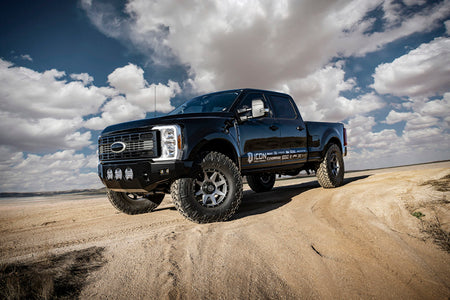

ICON 23-24 Ford F-250/F-350 Super Duty 4WD 4.5in Front 2.5 Series Shocks VS RR - Pair

In stock
Regular price $2,086.00
Product INFO
  • Vendor ICON
  • SKU T14.1022847
  • Barcode 67811P
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 67811P


Market Description

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. Remoyte reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Product Description - Extended

ICON 2.5 Aluminum Series shocks are designed to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Associated Comments

  • APPLICATION NOTE #543: Can be installed as secondary shocks in OE location with ICON 4-6" lift coilover conversions. Part number 611003 will also be required.
  • APPLICATION NOTE #541: Compatible with 3-5" of front lift over stock on 2023-2026 Super Duty models equipped with Tremor package.
  • APPLICATION NOTE #540: Compatible with 4-6" of front lift over stock on 2023-2026 Super Duty models without Tremor package.
  • APPLICATION NOTE #539: Optimized length for pairing with ICON 4.5" lift coil springs
  • APPLICATION NOTE #150: Shocks are fully serviceable
  • APPLICATION NOTE #1: Only fits 4WD models

Features and Benefits

  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use and allow for longer suspension travel
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Polyurethane bushings and forged steel mounting stems for OE factory type fitment
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Nitrogen charged monotube design with remote reservoir
  • 6061 aircraft grade aluminum CNC machined components
  • Fully rebuildable and retunable

Product Description - Short

  • ICON 23-24 Ford F-250/F-350 Super Duty 4WD 4.5in Front 2.5 Series Shocks VS RR - Pair
  • SHOCK ABSORBER PAIR

Product Description - Long

23-26 FSD 4.5" FRONT 2.5 VS RR PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description - Invoice

67811P
