Injen 16-18 Ford Focus RS L4-2.3L Turbo Bar and Plate Front Mount Intercooler

In stock
Regular price $1,317.00
Product INFO
  • Vendor Injen
  • SKU T14.583686
  • Barcode FM9003I
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : FM9003I


Market Description

  • The MK3 Ford Focus RS is a great platform for soaking up highway miles during the weekday and tearing it up at the track on the weekend! With some minor modifications, the 2.3L Turbo engine can produce some outstanding power. In stock form, the stock tube-and-fin intercooler is barely sufficient at cooling the incoming charged air. When you start adding power using a tune and/or bolt-on parts, you'll soon find that you're well beyond the limits of the stock charge air system which is notoriously prone to heat soak. Thankfully Injen Technology has developed a highly efficient bar-and-plate intercooler engineered specifically to fit the Ford Focus RS MK3 platform.
  • This FM9003i Front Mount Intercooler is one of the easiest ways to improve power by reducing air charge temperatures, improving flow characteristics, and ensuring minimal pressure drop. Factory calibrations begin to pull timing once charge air temps reach 100 degrees, and the ECM will continue to pull additional timing as temps continue to rise. By upgrading to this Injen Technology FM9003i intercooler, you prevent this heat soak and can keep charge air temps at or near ambient temperature. This ensures you'll have consistent and reliable power output on the street, track, and circuit.

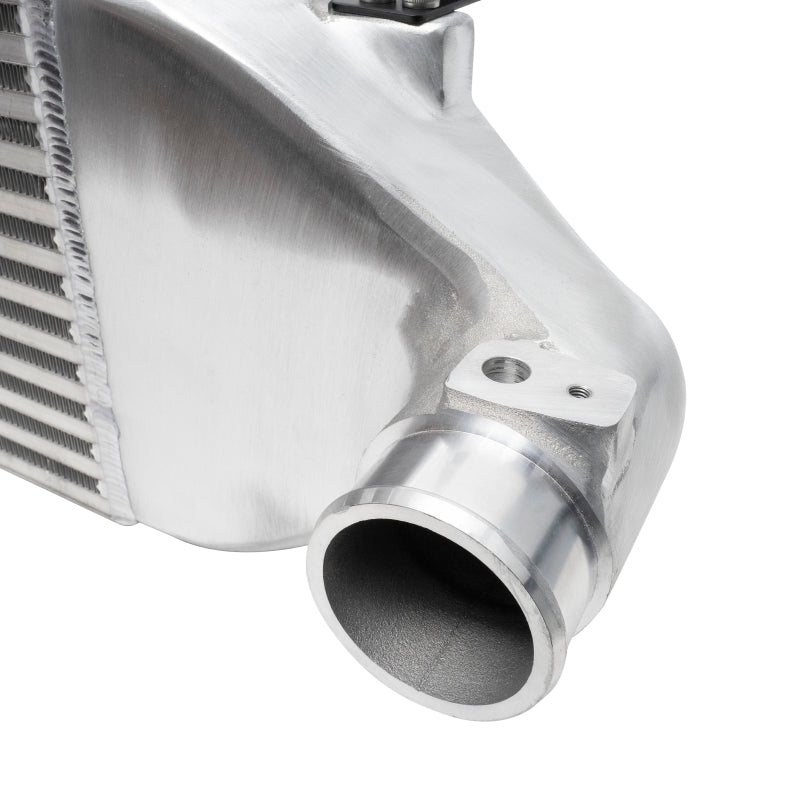

  • The FM9003i intercooler is a direct-fit unit and features over a 25% percent increase in core volume and an average of 35% reduction in charge air temps for your Focus RS. This intercooler is constructed with cast end tanks and precision CNC-machined aluminum flanges for use with the factory intercooler piping. The Injen Focus RS intercooler reduces charge air intake temperatures and provides an increase of up to 14 HP and 15 Ft. Lbs. of torque while retaining factory boost pressure across the core.
  • This Focus RS 2.3L Turbo intercooler also features precision TIG-welding and has a unique silver finish that is reminiscent of brushed aluminum. With an average one-hour installation, great power, temperature benefits, and a Lifetime Warranty, the Injen FM9003i intercooler is a must-do upgrade for any stock or modified Focus RS.

Features and Benefits

  • Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
  • Precision Cast end tanks for purposeful airflow management

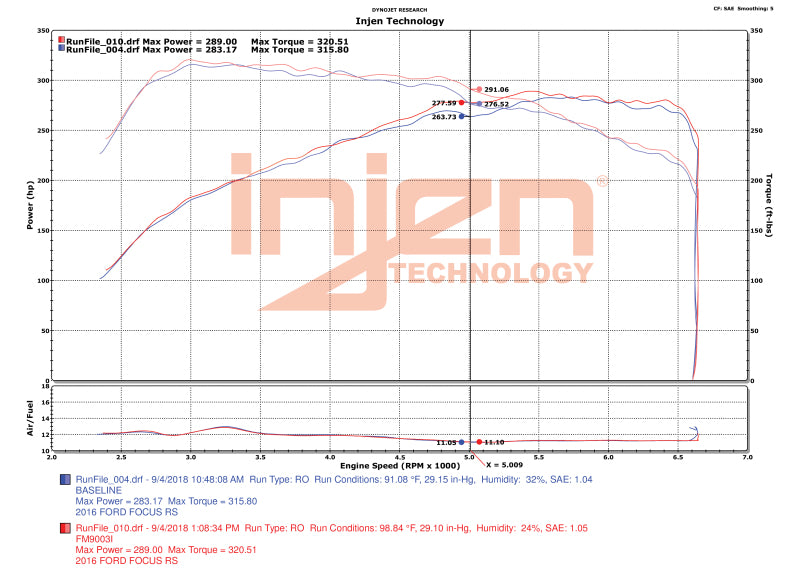

  • Dyno Proven gains of up to 14 hp and 15 lb-ft. of torque
  • Direct bolt on - No cuttings or drilling required
  • Designed to work with the stock calibration
  • Injen Technology Limited Lifetime Warranty
  • Direct bolt-on front mount intercooler
  • SP9003SE (Special Edition Blue)
  • Made in Pomona California, USA
  • Optional Throttle Controller:
  • Optional Cold Air Intakes:
  • SP9003WB (Wrinkle Black)
  • Optional Exhaust System:
  • Custom Bar & Plate Core
  • SP9003WR (Wrinkle Red)
  • No piping included.
  • SP9003P (Polished)
  • SES9004
  • PT0013B

Product Description - Extended

Front Mount Intercooler, Part No. FM9003i, 2016-2018 Ford Focus RS L4-2.3L Turbo.

Product Description - Short

Injen 16-18 Ford Focus RS L4-2.3L Turbo Bar and Plate Front Mount Intercooler

Product Description - Long

Front Mount Intercooler

Product Description - Invoice

Injen Intercooler Kit

AAIA Part Type Description

Intercooler Kit
