MDR Industries 2023+ Type-R/Type-S Billet Tube & Fin Front Mount Intercooler Upgrade

In stock
Regular price $2,101.00
Product INFO
  • Vendor MDR Industries
  • SKU 925-1992-1
Finish Type
Color
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

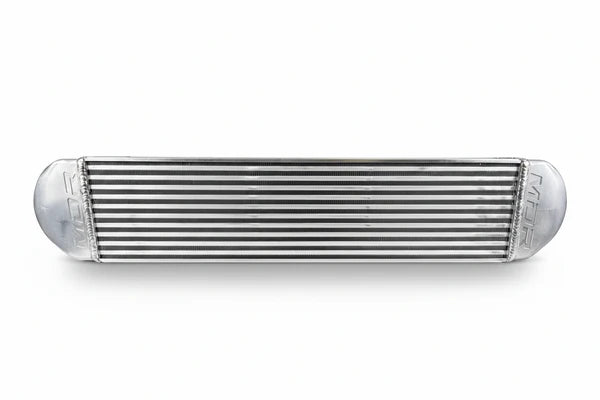

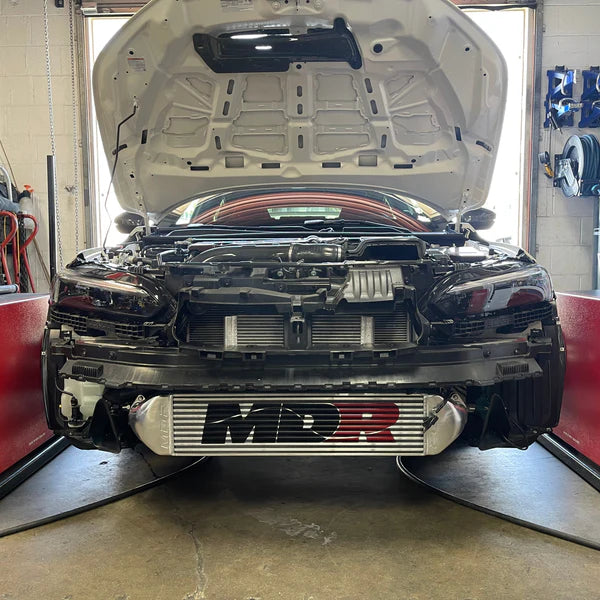

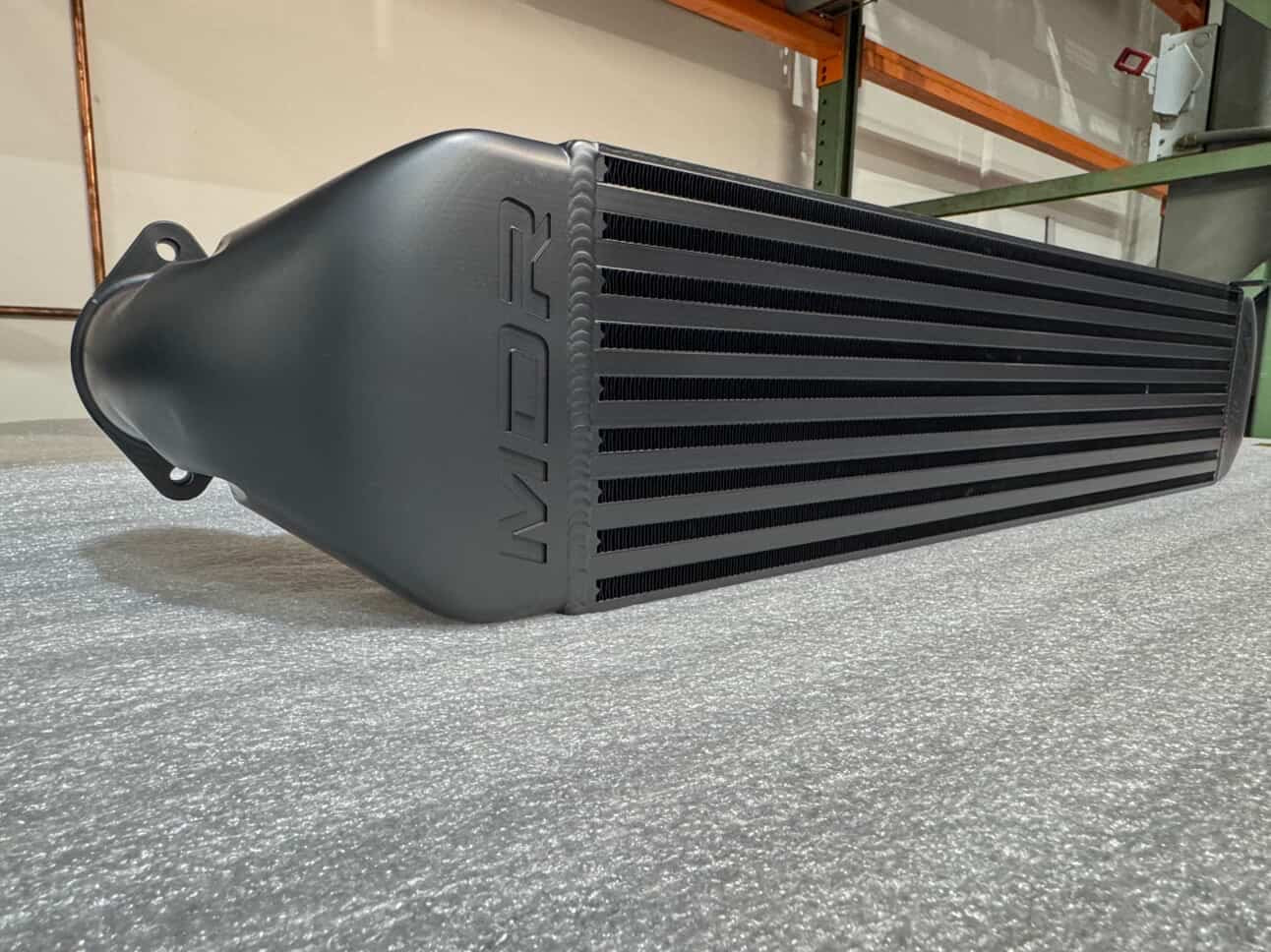

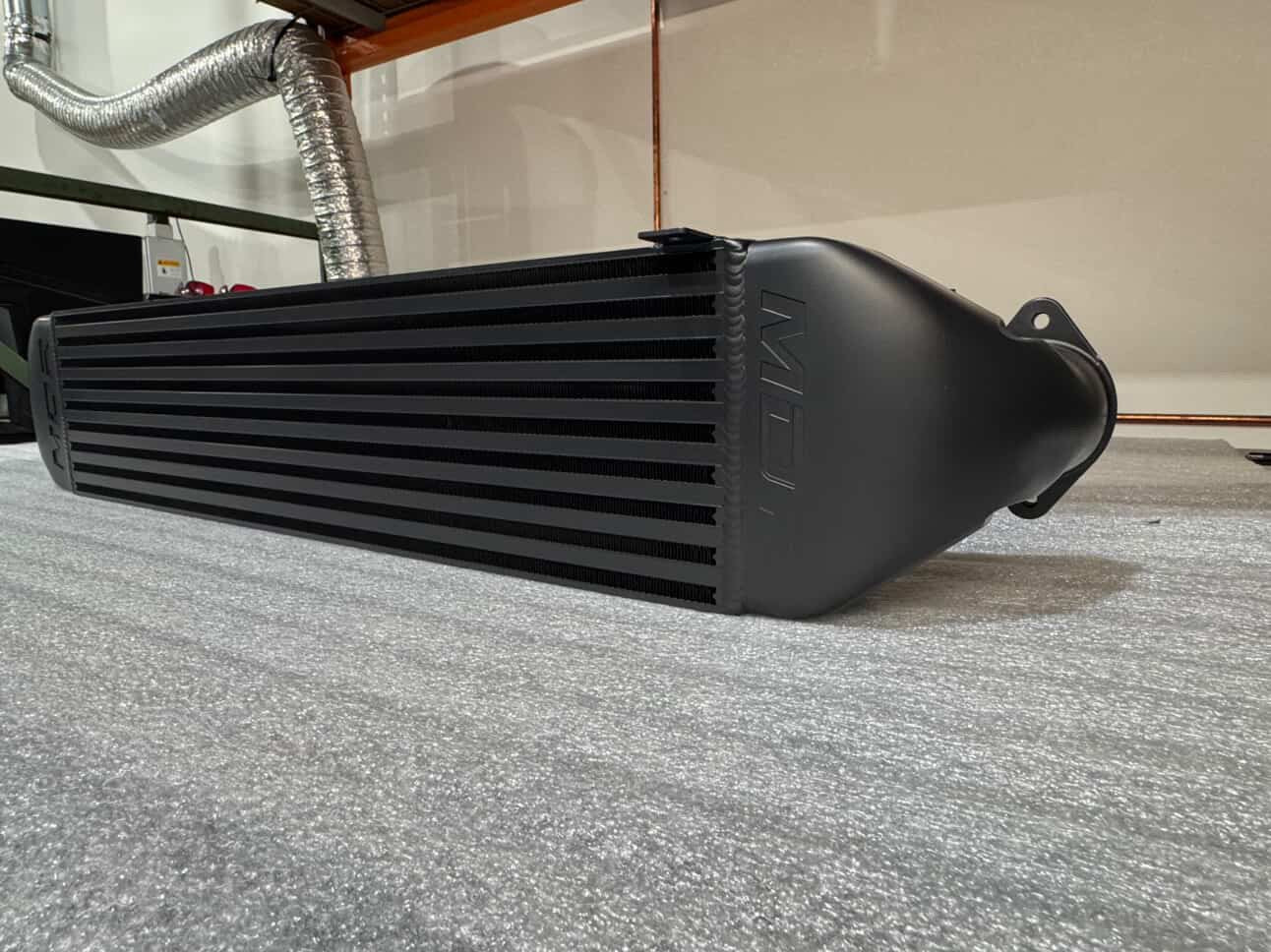

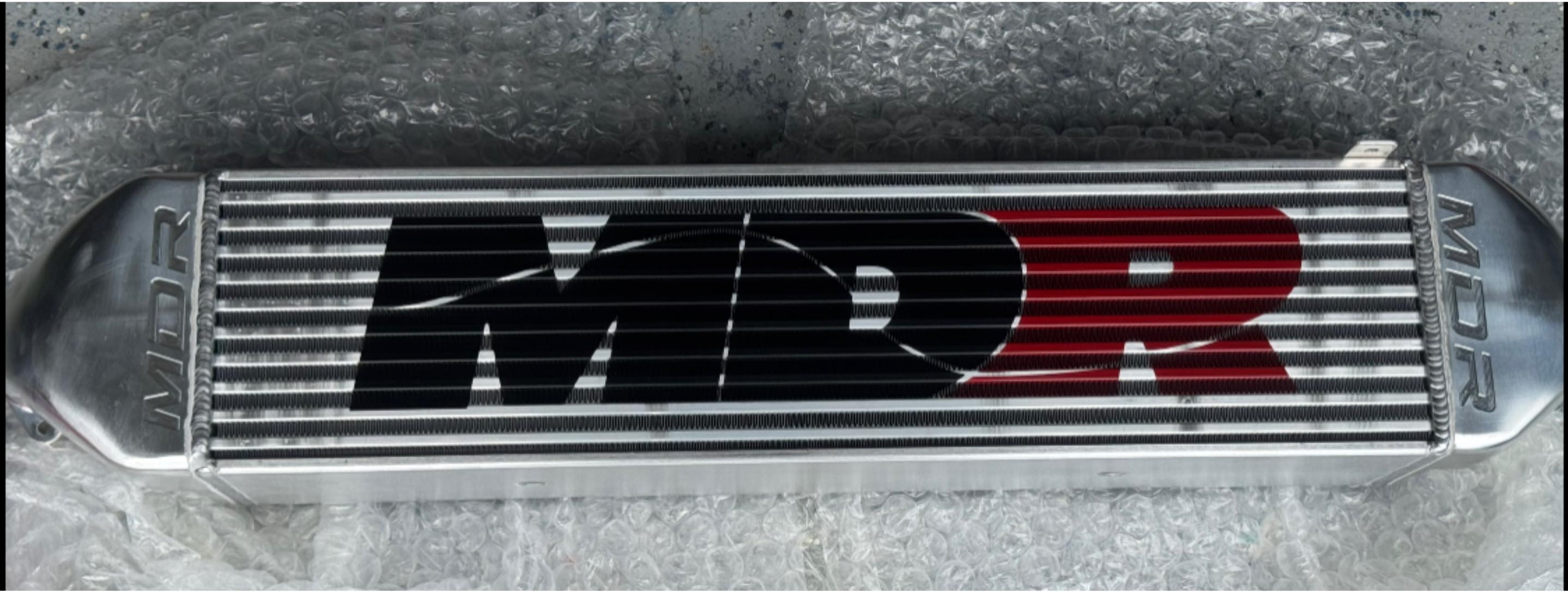

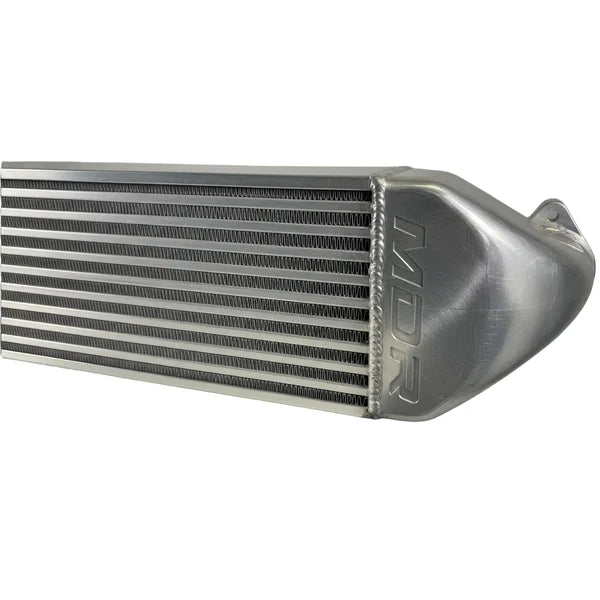

MDR's Billet Intercooler Upgrade for the 2023+ Honda Civic Type-R FL5 & 2024+ Acura Integra Type S is made in the USA, with machined Billet 6061-T6 aluminum end tanks and a 5.50” core to replace the factory’s plastic end tanks and 2.5” core.

Throughout our testing period, we calculated heat transfers for different types of fins, with different fin heights, and fin densities to determine the best combination internal and external fin to achieve the highest heat transfer effectiveness, with the lowest pressure drop. We then designed our cores with the most effective fin combinations, which in this case we determined was the bar and plate aluminum core design.

The bar and plate core allows the utilization of the entire envelope space, without larger than core sized end plates as compared to the factory tube and fin. Bar and plate cores are designed to withstand high pressure and high vibration applications. Braze sheets seal the entire row as compared to the 0.125” wide sealing surface of the end plate to the extruded tube on tube and fin cores.

Engineered with cutting-edge technology and precision craftsmanship, the FL5 & DE5 intercooler proudly delivers


FEATURES

  • Tube and fin core
  • Billet 6061-T6 aluminum machined end tanks
  • No ECU calibrations required
  • Utilizes all factory intercooler mounting locations / brackets
  • Core size maximizes the opening on the front bumper
  • Notable increase in air density
  • 100% pressure tested
  • TIG welded
  • Assembled in Simi Valley, CA

MDR INTERCOOLER PERFORMANCE DATA

  • Core size – 5.50” thick x  7.02” stack up height x 28.0” wide
    •  Surface area – 196.56 in2 / 25.17% increase
    •  Volume – 1,081.08 in3 / 175.38% increase
  •  Average pressure drop – 1.17 psi
  •  Average temperature drop – 174.81 deg. F
    • Max Inlet Temp. - 337.2 deg. F
    • Outlet Temp. - 90.3 deg. F (246.9 deg. F of Drop)
    • Pressure Drop -  1.12 psi
