Edelbrock Big Block Chrysler Performer RPM 230 CC Hydraulic Roller Camshaft

Manufacturer Part # : 60025

Market Description

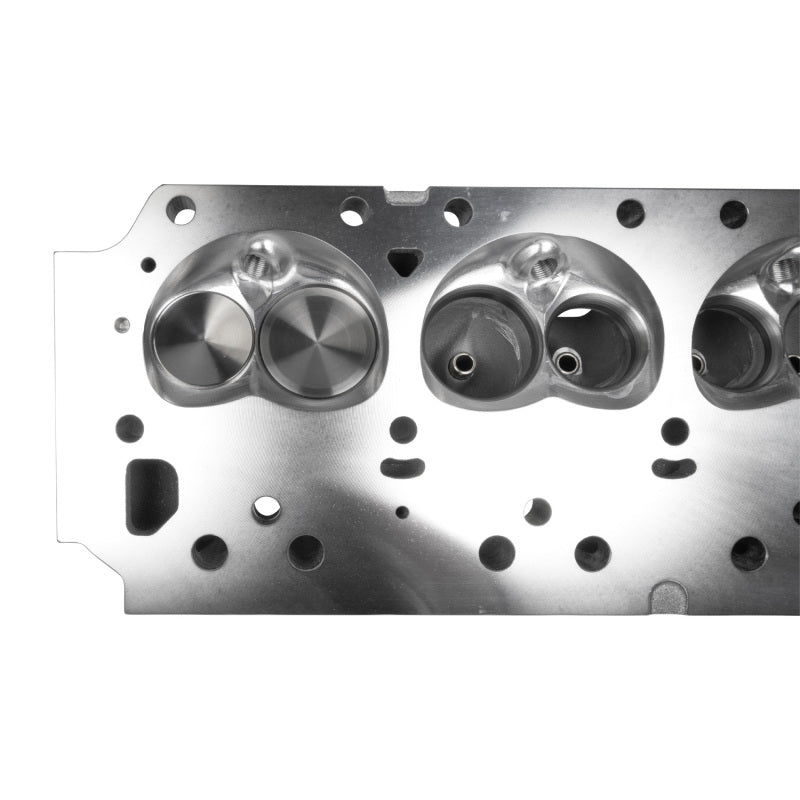

Designed specifically for B & RB series Big-Block Chrysler engines, the Performer RPM 230 cc Cylinder Heads are engineered to deliver the next level of power and performance. These premium cylinder heads feature high-quality components and precision machining to meet the demands of serious street and strip enthusiasts. Manufactured in Edelbrock’s ISO-certified facility in San Jacinto, California, each cylinder head is machined to exacting tolerances for exceptional quality and consistency. With larger 230 cc ports than comparable RPM heads and 73 cc fully CNC combustion chambers, this new design is ideal for high-performance applications that require increased airflow and power, while still maintaining compatibility with off-the-shelf components. These heads are intended for B and RB series Big-Block Chrysler engines not required to meet emission standards. Each Performer RPM 230 cc cylinder head comes fully assembled with premium valvetrain components, including stainless steel one-piece swirl-polished intake and exhaust valves with undercut stems for improved flow, manganese bronze valve guides, ductile iron valve seats, 2-ring positive oil control seals, hardened steel valve spring locators, and Edelbrock Sure-Seat valve springs, retainers, and keepers. Edelbrock’s patented Clean-Cast Technology further enhances performance by eliminating internal casting flaws and creating a smoother surface finish, which improves airflow and coolant circulation. The result is increased power and better cooling right out of the box, making these heads an excellent performance value for any Big-Block Chrysler build. For application-specific use, Part 60025 is designed for Hydraulic Roller applications, while Part 60029 is ideal for Hydraulic Flat Tappet setups.

Product Description - Extended

Edelbrock’s Performer RPM 230 cc Cylinder Heads for B & RB Big Block Chryslers deliver premium performance with CNC 73 cc chambers, larger ports, and precision machining for maximum airflow, power, and compatibility with stock components.

Features and Benefits

• CNC combustion chambers for cylinder-to-cylinder consistency and performance
• Large 230cc Intake ports for maximum flow from an "as-cast" port
• Assembled with spring set for Hydraulic Roller Camshafts

Product Description - Short

Edelbrock Big Block Chrysler Performer RPM 230 CC Hydraulic Roller Camshaft

Product Description - Long

Performer RPM Chrysler Big-Block 230cc for Hydraulic Roller Camshaft

Associated Comments

• Valve Spring Diameter (at base of spring) 1.550”
• Valve Spring Closes Load 150 lbs at 1.870”
• Valve Spring Open Load 367 lbs at 1.270”
• Exhaust Valve Seat Material Ductile Iron
• Intake Valve Seat Material Ductile Irion
• Solid Spring Height (Coil Bind) 1.150”
• Exhaust Valve Material Stainless Steel
• Valve Spring Installed Height 1.870”
• Intake Valve Material Stainless Steel
• Valvetrain Configuration Stock Style
• Valve Spring Retainer Material Steel
• Max. Recommended Valve Lift .650”
• Exhaust Valve Diameter 1.810”
• Material 356-T6 Heat-Treated Al
• Intake Valve Diameter 2.190”
• Exhaust Valve Angle 15 degrees
• Exhaust Guide Material Bronze
• Combustion Chamber Volume 75cc
• Cylinder Head Style Complete
• Intake Valve Angle 15 degrees
• Intake Guide Material Bronze
• Exhaust Port Location Stock
• CNC Combustion Chamber Yes
• Intake Port Location Stock
• Intake Runner Volume 230cc
• Exhaust Runner Volume 75cc
• CNC Exhaust Runner No
• Deck Thickness .75”
• Part Number(s) 60025
• VALVETRAIN 60025
• Intake Runner No
• Finish Natural
• EXHAUST 60025
• INTAKE 60025
• CNC

AAIA Part Type Description

Engine Cylinder Head

Product Description - Abbreviated

Cyl. Head
