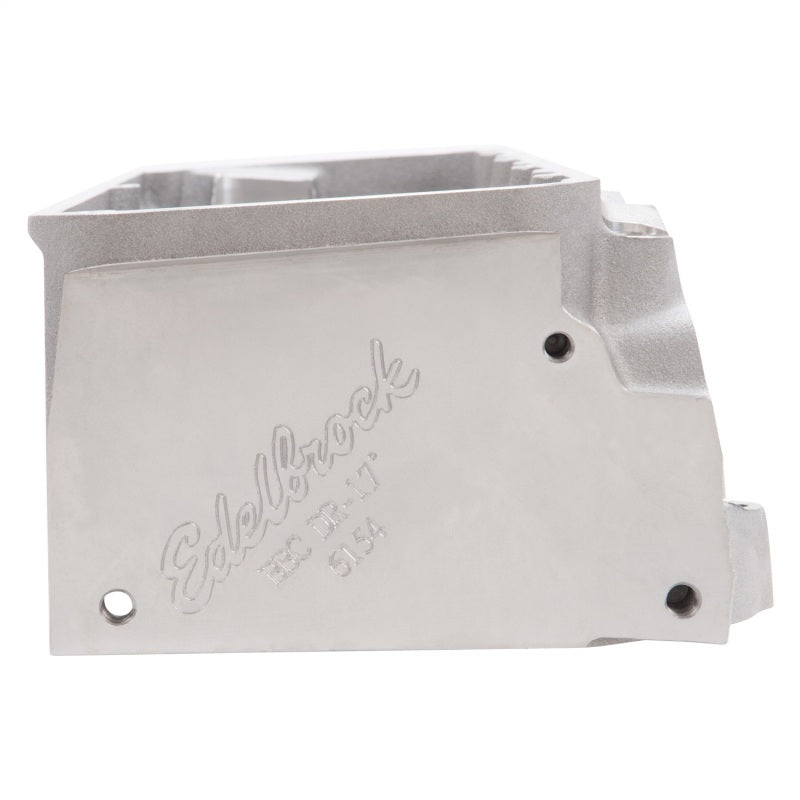

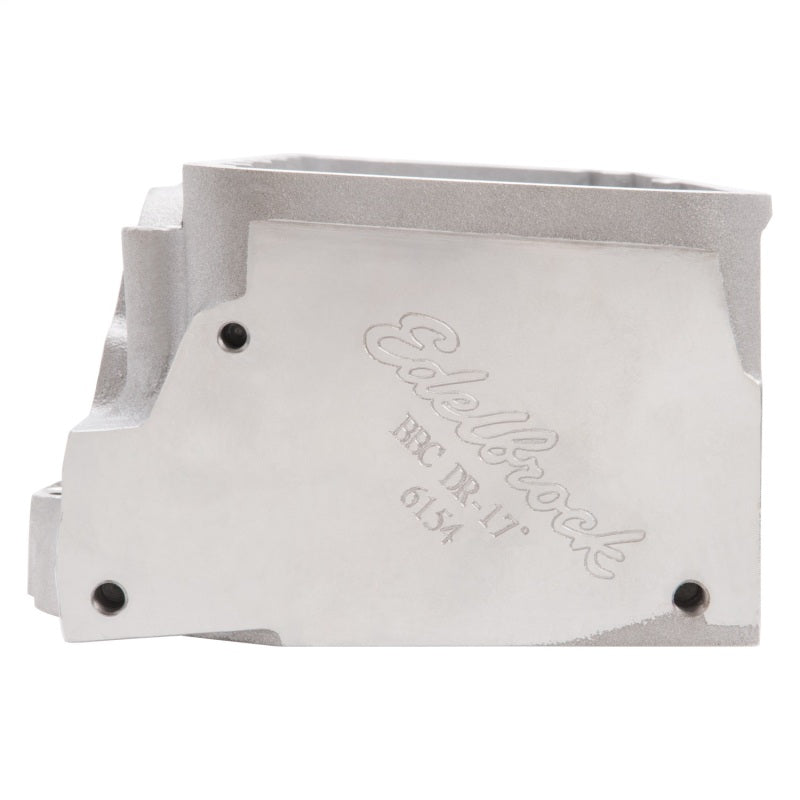

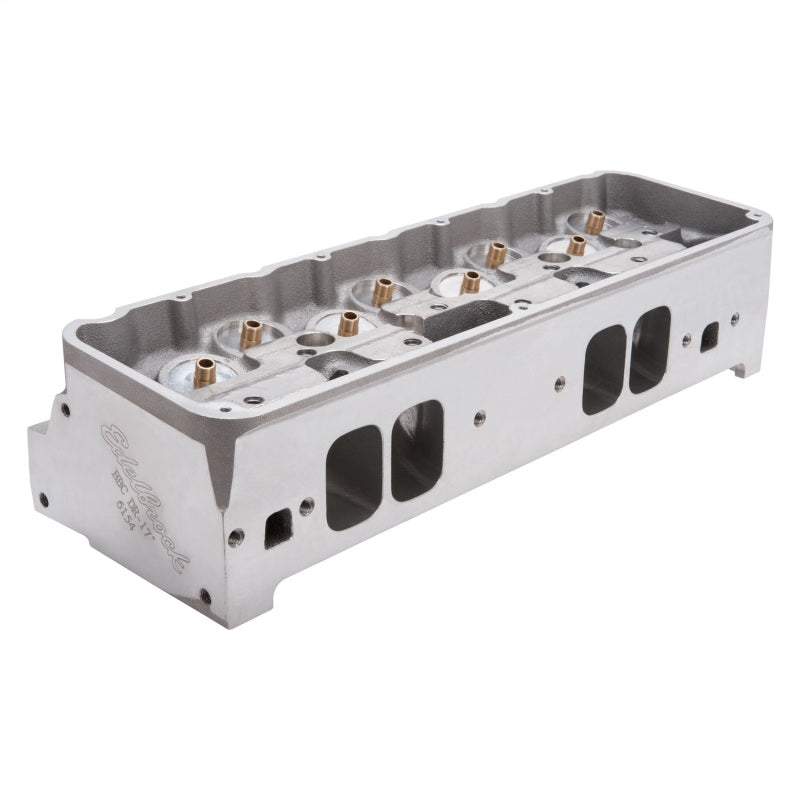

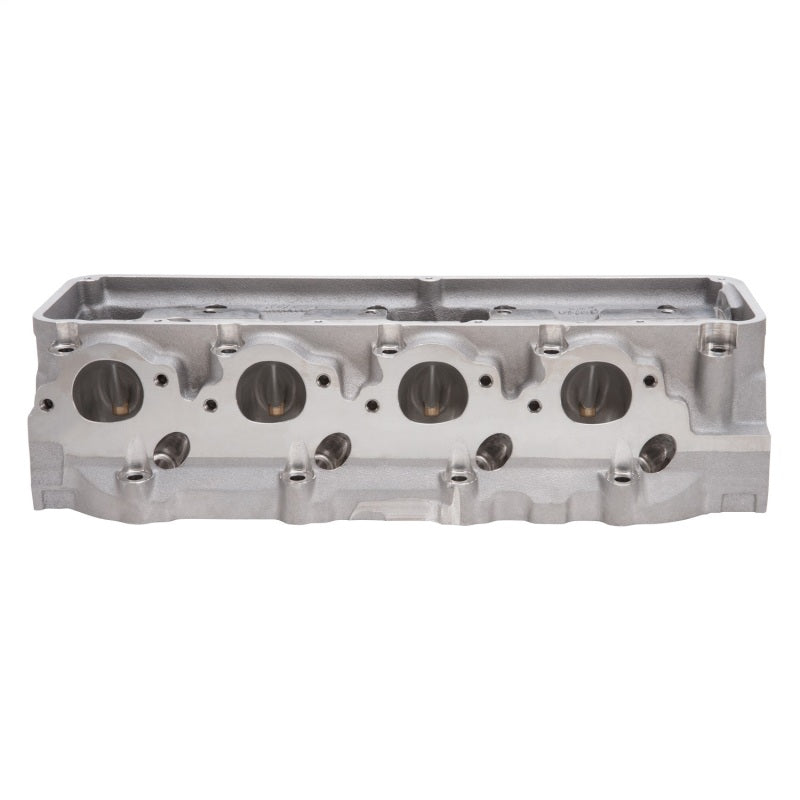

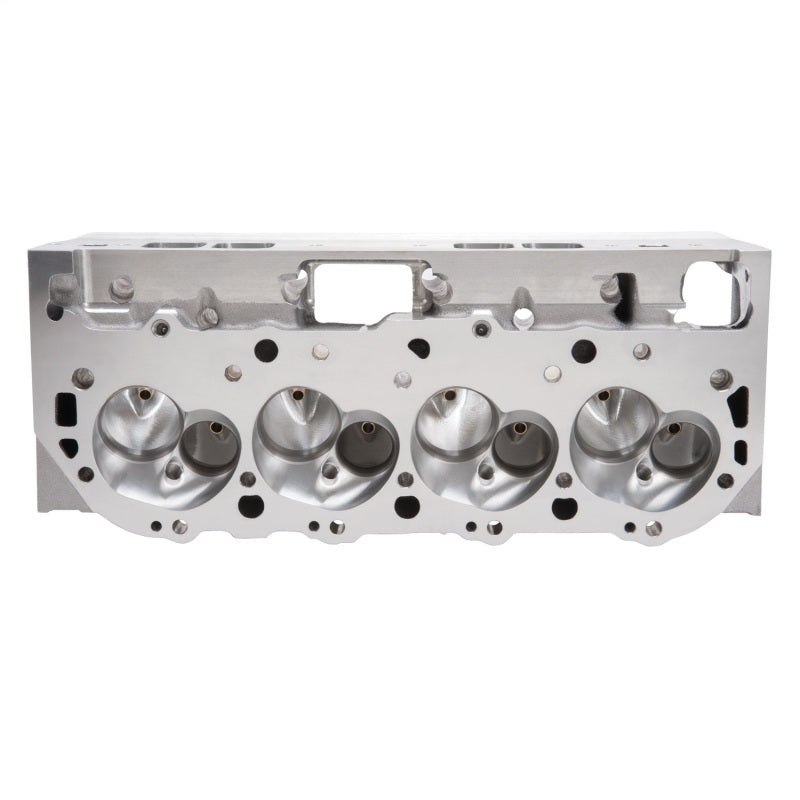

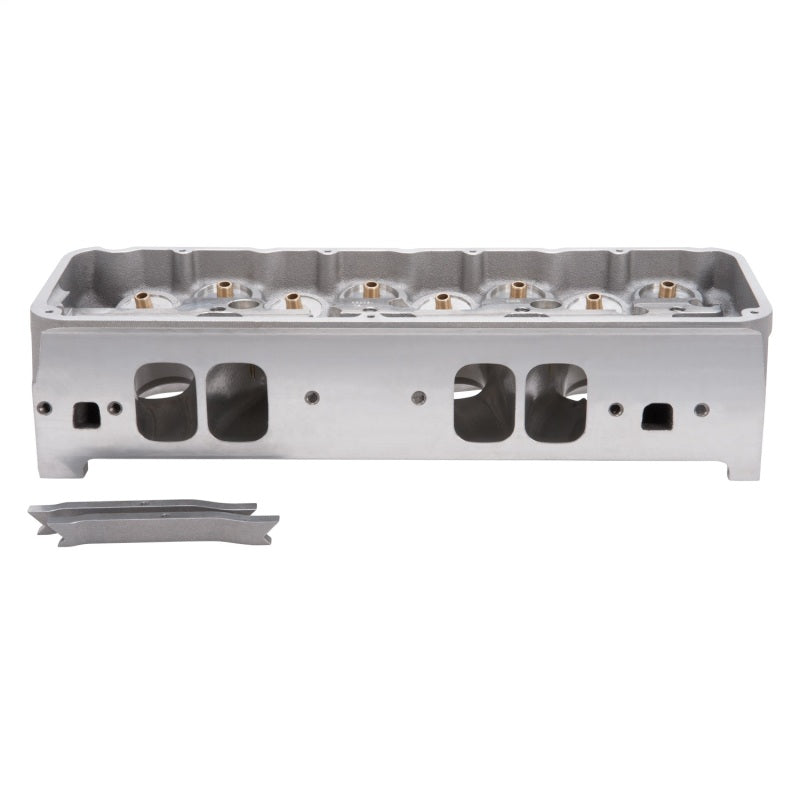

Edelbrock Cylinder Head BBC Pro-Port Victor High Port Conventional Dr-17 Hip CNC -Ported

In stock
Regular price $5,787.00
Product INFO
  • Vendor Edelbrock
  • SKU T14.128873
  • Barcode 615468
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 615468


Market Description

  • The Edelbrock 614 Big Block Chevy 24 Deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like all other Edelbrock Cylinder heads, Pro-Port cylinder heads are also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: These heads can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC heads for the professional cylinder head porter and engine builder - Pro-Port cylinder heads are cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only heads designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some Edelbrock Pro-Port Raw Heads Feature Our Special Hot Isostatic Pressing or HIP Process.
  • The DR17 is the next evolution in Edelbrock conventional style big-block Chevy cylinder heads geared for the sportsman racer. They are designed to deliver consistent and reliable performance through the whole race season. These cylinder heads are based off our popular Victor 24° Gen II Pro-Port Raw design, but features a revised valve angle and location for improved flow and performance. The casting is Hot Isostatic Pressing (HIP) processed for superior strength, durability and exceptional finish quality. Requires the use of shaft rocker system. Tall-deck applications will require the use of spacers. INSTALLATION NOTES: Deck thickness: 9/16", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.

Product Description - Extended

  • Edelbrock #615468 is a Finished E-CNC Version of the #615469 Pro-Port Edelbrock Victor 24 Deg BBC Cylinder Head. Features 0.400" Raised Intake Port & 17 Deg Intake Valve Angle. Raw/Bare Castings, HIP Treated.
  • XX CYL HEAD BBC ECNC PORT VICTOR HIGH PORT CONVENTIAL DR17 HIP CNC PORTED

Product Description - Short

  • Edelbrock Cylinder Head BBC Pro-Port Victor High Port Conventional Dr-17 Hip CNC -Ported
  • CYL HEADS RACE

Label Description

Pro Port BV3 Big-Block Chevy Cylinder Head HIP 11 Degrees CNC Ported

Product Description - Long

  • Victor CNC DR-17 Cylinder Heads for Big-Block Chevys, 92CC
  • CYLINDER HEAD

Features and Benefits

Polished Then Hard Anodized For Use w/Racing Fuel

Product Description - Invoice

  • Edelbrock BBC Cylinder Head
  • CYL HEADS-RACE

AAIA Part Type Description

Engine Cylinder Head

Product Description - Abbreviated

Cyl. Head
