ICON 01-26 GM 2500/3500 HD 0-1in/07-18 GM 1500 4in Rear VS 2.5 PB CDXS Pair

In stock
Regular price $2,842.00
Product INFO
  • Vendor ICON
  • SKU T14.1026570
  • Barcode 77701XP
In stock
Usually ships within 24 hours
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 77701XP


Market Description

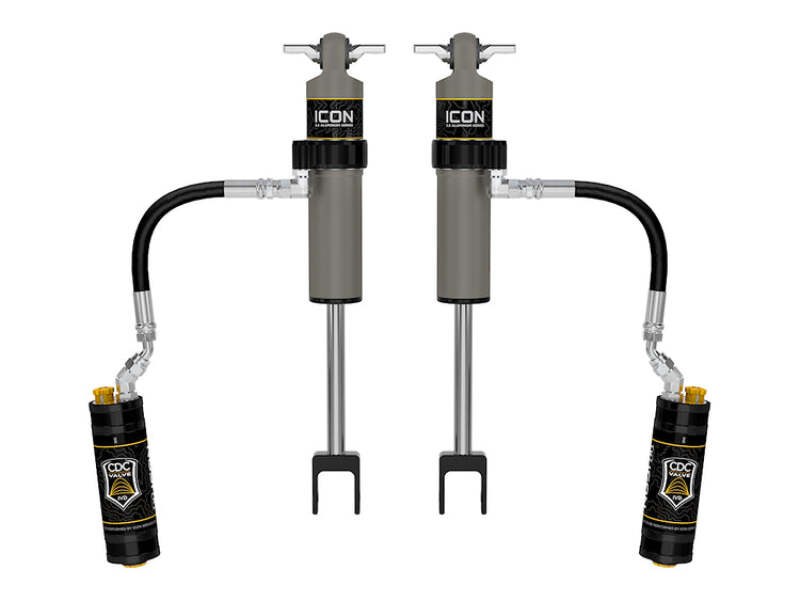

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

Product Description - Extended

ICON V.S. 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.

Features and Benefits

  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Nitrogen charged monotube design with piggyback reservoir
  • 6061 aircraft grade aluminum CNC machined components
  • 100% Rebuildable
  • 100% Revalveable

Associated Comments

  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
  • APPLICATION NOTE #305: Compatible with 20-26 GM 2500/3500 HD with 0-1.5" of rear lift
  • APPLICATION NOTE #304: Compatible with 01-19 GM 2500/3500 HD with 0-1" of rear lift
  • APPLICATION NOTE #303: Compatible with 07-18 GM 1500 with 4" of rear lift
  • APPLICATION NOTE #3: Will not fit Cab & Chassis models

Product Description - Short

  • ICON 01-26 GM 2500/3500 HD 0-1in/07-18 GM 1500 4in Rear VS 2.5 PB CDXS Pair
  • SHOCK ABSORBER PAIR

Product Description - Long

01-26 GM 2500/3500 HD 0-1"/07-18 GM 1500 4" REAR VS 2.5 PB CDXS PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description - Invoice

77701XP
