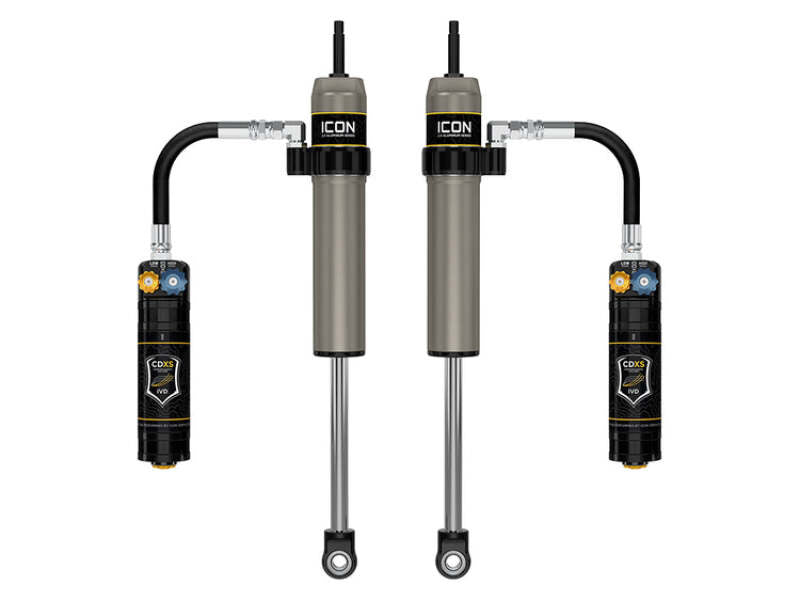

ICON 05-23 Toyota Tacoma 0-1.5in Lift Rear VS 2.5 Alum Remote Resi Shock Absorber w/ CDXS Pair

In stock
Regular price $2,859.00
Product INFO
  • Vendor ICON
  • SKU T14.1057430
  • Barcode 57805XP
In stock
Usually ships within 24 hours
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 57805XP


Market Description

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

Product Description - Extended

ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Features and Benefits

  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade shock oil for consistent suspension damping along a wide temperature range
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Nitrogen charged monotube design with remote reservoir
  • 6061 aircraft grade aluminum CNC machined components
  • Double-sealed Schrader caps reduce risk of damage
  • 100% Rebuildable and revalveable

Product Description - Short

  • ICON 05-23 Toyota Tacoma 0-1.5in Lift Rear VS 2.5 Alum Remote Resi Shock Absorber w/ CDXS Pair
  • SHOCK ABSORBER PAIR

Associated Comments

  • APPLICATION NOTE #185 : Will not fit 2WD Tacoma with 5 wheel lug studs
  • TECH NOTE: Compatible with 0-2" of rear lift on most Tacoma submodels
  • TECH NOTE: Compatible with 0-1.5" of rear lift on Tacoma TRD Pro

Product Description - Long

05-23 TACOMA 0-1.5" REAR 2.5 VS RR CDXS PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description - Invoice

57805XP
