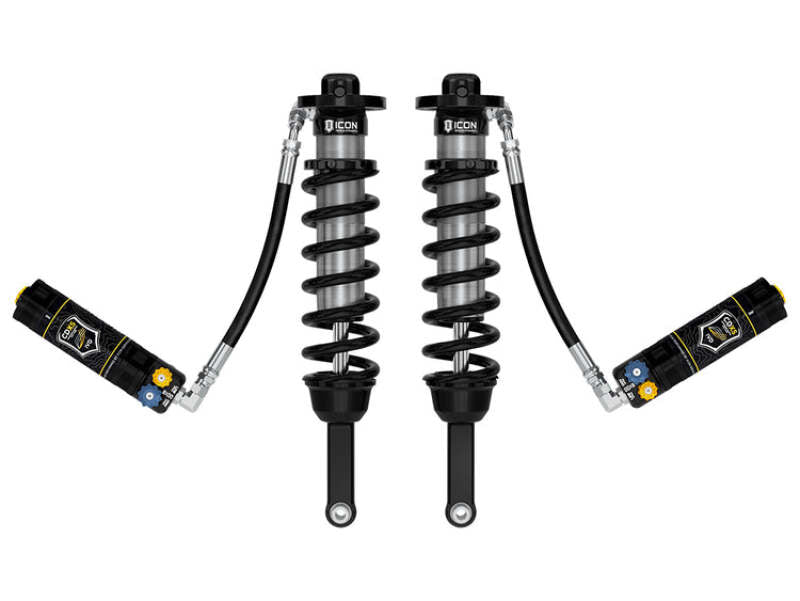

ICON 05-23 Toyota Tacoma Front VS 2.5 Series Remote Resi w/ CDXS Coilover Kit Pair

Manufacturer Part # : 58730X

Market Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Product Description - Extended

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Features and Benefits

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Vehicle specific tuned for superior shock damping and control
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• 5/8" PTFE-lined spherical bearings
• ICON engineered coil springs
• Billet aluminum upper mount
• CAD-plated threaded body
• Completely re-buildable

Associated Comments

• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #112: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #108: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
• APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
• APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
• APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
• OEM Wheels & Tires Fitment: Yes

Product Description - Short

• ICON 05-23 Toyota Tacoma Front VS 2.5 Series Remote Resi w/ CDXS Coilover Kit Pair
• COILOVER KIT

Product Description - Long

05-23 TACOMA 2.5 VS RR CDXS COILOVER KIT

AAIA Part Type Description

Coilover Set

Product Description - Invoice

58730X
