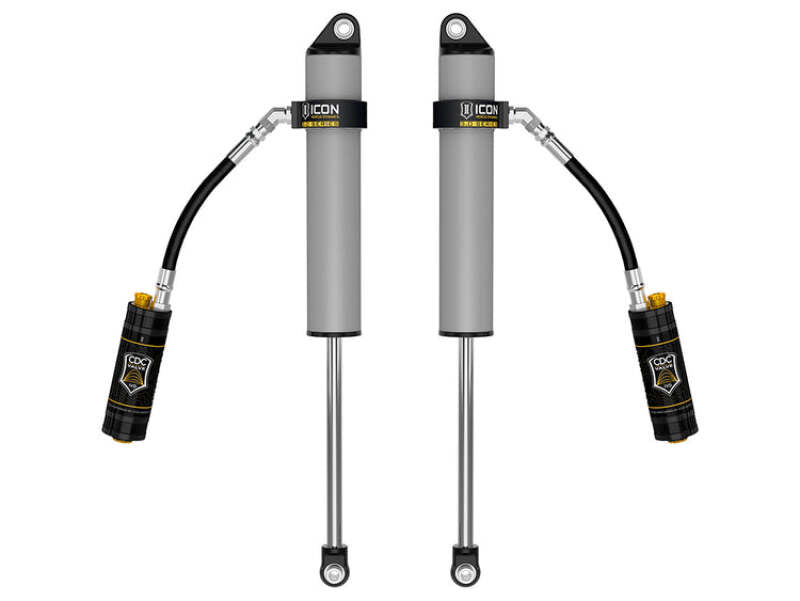

ICON 17-26 Ford F-250/350 SD 4WD 0-3in 3.0 Series VS RR CDEV Rear Coilover Pair

Manufacturer Part # : 61804EP

Market Description

• ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that, when used, creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
• The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Product Description - Extended

These ICON VS 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.

Features and Benefits

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• 7/8” diameter induction hardened, chrome plated shock shaft
• Offset upper eyelet allows fitment into factory shock mounts
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Associated Comments

• APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
• APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks
• APPLICATION NOTE #14: Included rear shocks are compatible with 0-3" of rear lift over stock
• APPLICATION NOTE #3: Will not fit F-350/F-450 cab & chassis models
• APPLICATION NOTE #150: Shocks are fully serviceable

Product Description - Short

• ICON 17-26 Ford F-250/350 SD 4WD 0-3in 3.0 Series VS RR CDEV Rear Coilover Pair
• CDEV SHOCK ABSORBERS

Product Description - Long

17-26 F250/F350 4WD 0-3" REAR 3.0 VS RR CDEV PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description - Invoice

61804EP
