AEM 12 Position Universal Trim Pot

In stock
Regular price $69.00
Product INFO
  • Vendor AEM
  • SKU T14.236980
  • Barcode 30-2056
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 30-2056


Market Description

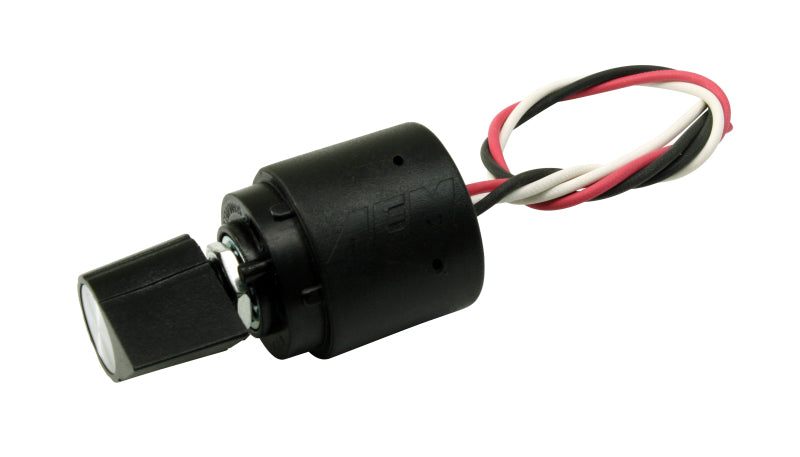

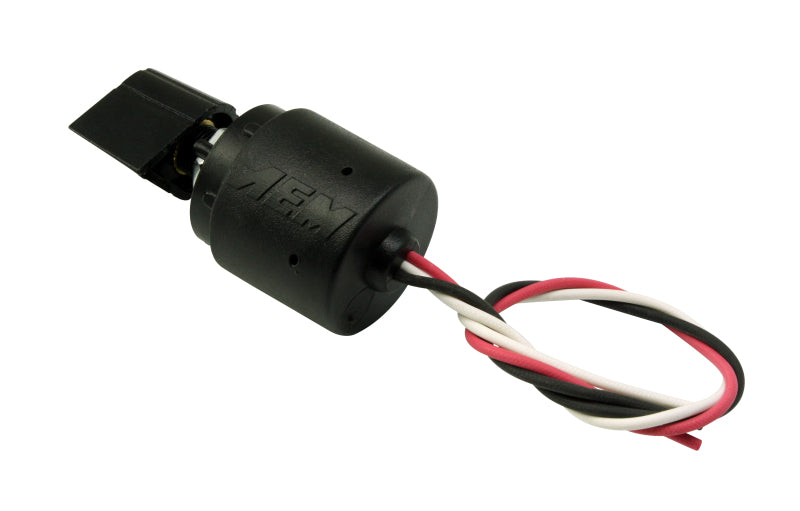

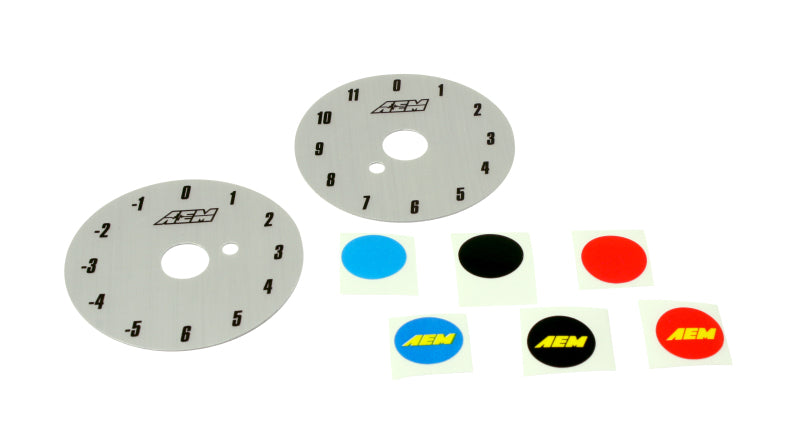

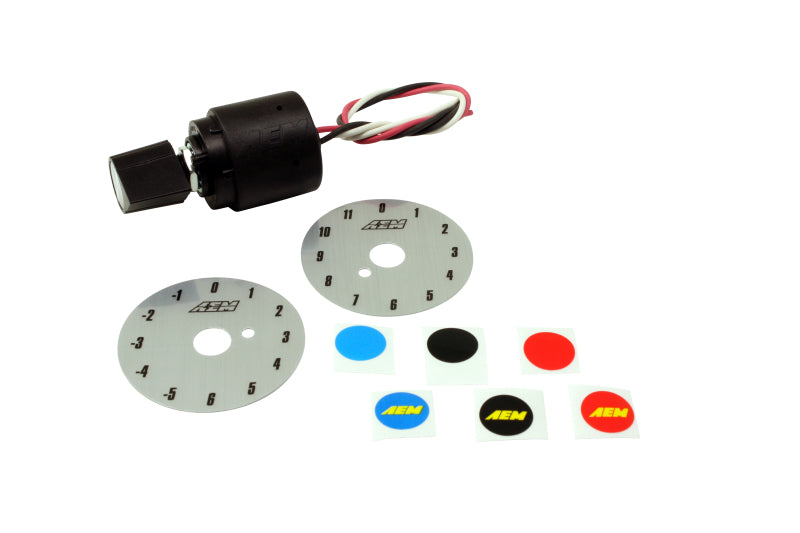

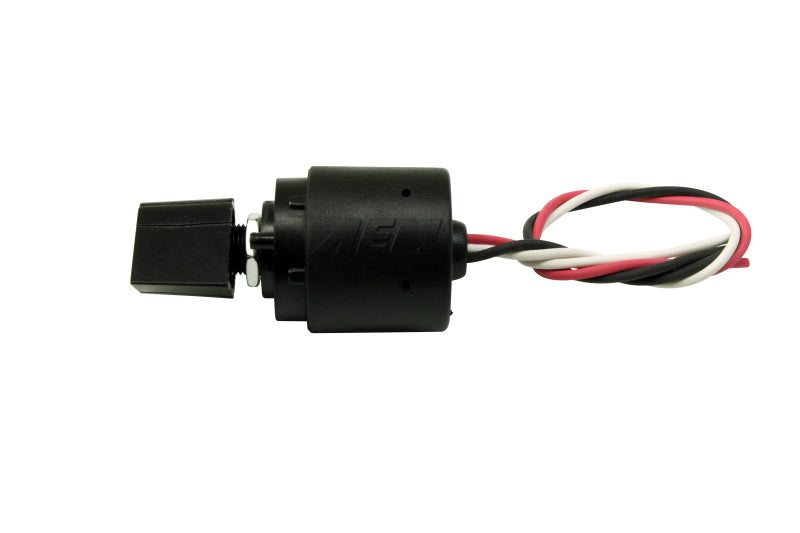

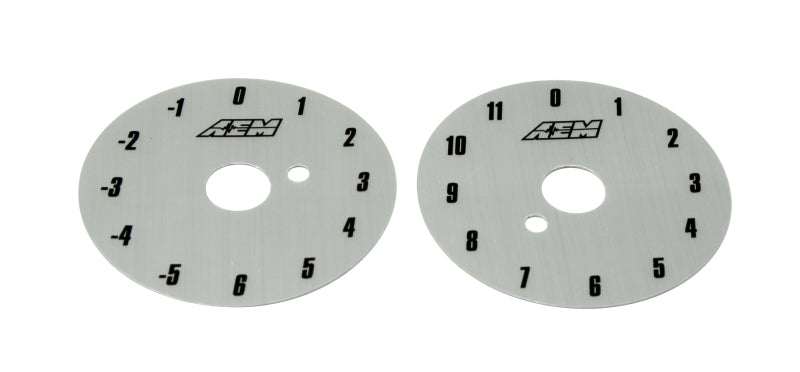

  • The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors
  • Includes a weatherproof-over-molded flying lead that has 12-inch insulated, color-coded wires, two brush silver Trim Position decals, and black AEM logo adjustment knob
  • Trim potentiometer can be used with virtually any engine management system
  • Adjusts a number of trims, including ignition timing, fuel, boost, etc.
  • Universal 12 Position Trim Pot

Features and Benefits

  • Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
  • 12 Position Trim Pot Performance Specifications
  • Knob Set Screw: 1/16" Allen
  • Total Resistance: 14.3KO
  • Cycles Minimum: 10,000
  • Supply Current: 5 Vdc
  • Degree Rotation: 330
  • Mounting: 3/8" Hole
  • Jam Nut: 1/2" Hex
  • Positions: 12

Product Description - Extended

  • Universal 12 Position Trim Pot, Includes Trim Pot and Decals.
  • Mounting: 3/8" Hole - Degree Rotation: 330

Product Description - Short

  • AEM 12 Position Universal Trim Pot
  • 12 Position Trim Pot

Product Description - Invoice

  • AEM - 12 Position Trim Pot
  • TRIM POT SWITCH

Product Description - Long

AEM 12 Position Trim Pot

AAIA Part Type Description

Multi-Purpose Switch

Product Description - Abbreviated

AEMEACCESWIT
