AEM

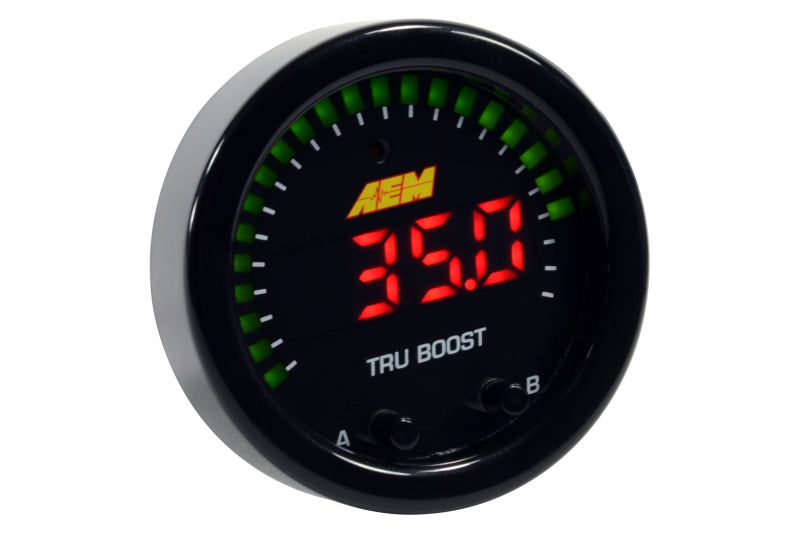

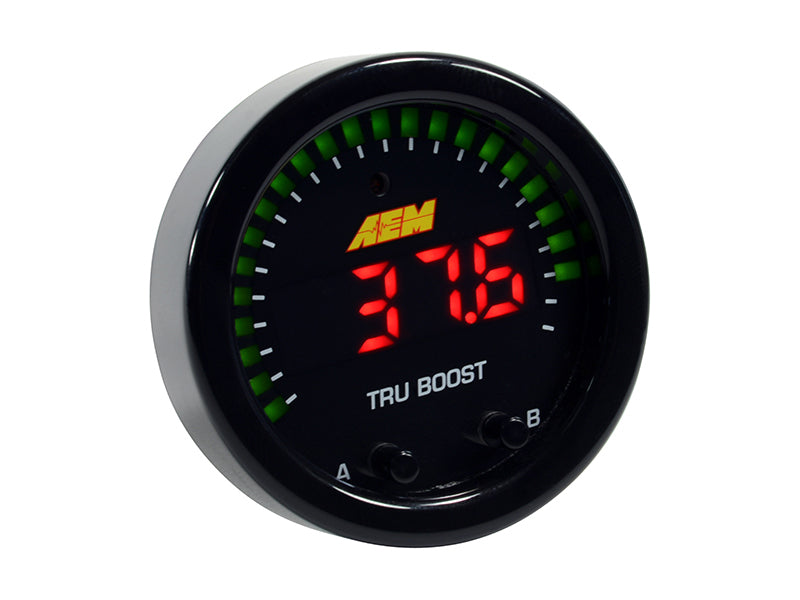

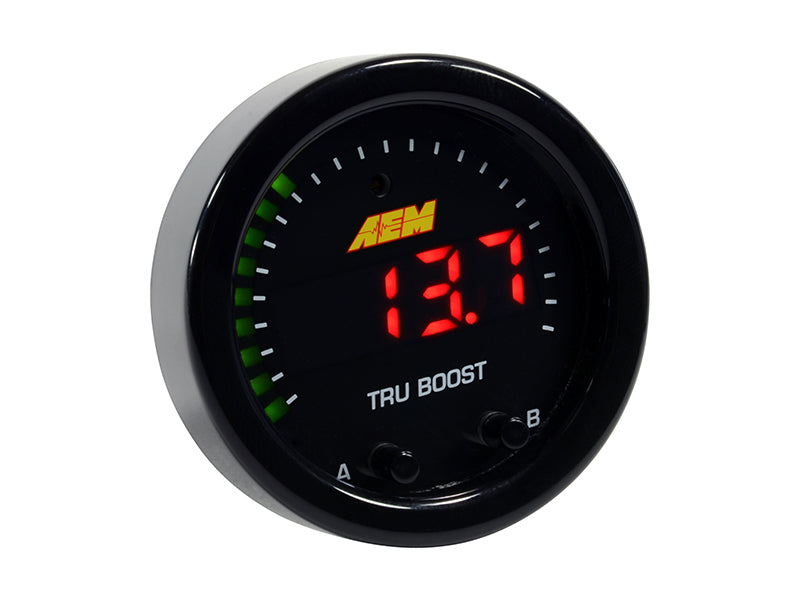

AEM X-Series Tru-Boost Controller Gauge w/ Boost Control Solenoid 80PSIg Internal MAP Sensor

In stock
Regular price $684.00
Product INFO
  • Vendor AEM
  • SKU T14.325468
  • Barcode 30-0352
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 30-0352


Market Description

  • All AEM Tru-Boost gauge programming is done using the faceplate buttons and no laptop is required. AEM's specially designed Boost Control Solenoid and all necessary hardware is included.Program Two Boost Levels + Scramble Boost Setting - Program two boost modes for different levels of performance (up to 80PSIg internal MAP sensor), and program a time-based scramble boost setting that is controlled using a switched input. You can also turn off the controller and use the gauge as a display.Change Wastegate Open Pressure-Ideal for reducing boost spikes and improving spool up.Display Boost Levels in PSIg (PSI), BAR or kPa (PAS) -See your boost in the units you prefer, and scale the 24 outer LEDs to match your peak boost levels for the perfect sweeping motion.Set Alarms and Display Peak Boost-Set the 24 green outer LEDs to flash based on boost pressure so you are alerted to an overboost condition. A ground output is included for triggering an optional LED warning light. Select the "B" button to see peak boost level and clear the value using the menu.Overboost Protection Built In-Protects your engine from an overboost condition by shutting the boost control solenoid off until it is reactivated by you through the buttons on the faceplate.Integrated Error Protection-Alerts you to a fault if the boost control solenoid is shorted or disconnected so you are never left guessing whether the Tru-BoostX is operational.Datalog using AEMnet CAN bus-Outputting channels over AEMnet provides so much more than just boost pressure! Send 13 channels of data over a 2-wire connection, including boost pressure, peak boost, boost target, boost scramble duty, overboost status, wastegate crack pressure, boost control solenoid status and more.
  • The Tru-BoostX Boost Controller Gauge delivers all of the features you loved about the original only now with AEMnet for data logging and a big, fat internal MAP sensor that can handle boost pressures up to 80 PSI of boost.
  • The Tru-BoostX Boost Controller gauge delivers digital accuracy but with the simplicity of a manual boost controller.

Product Description - Extended

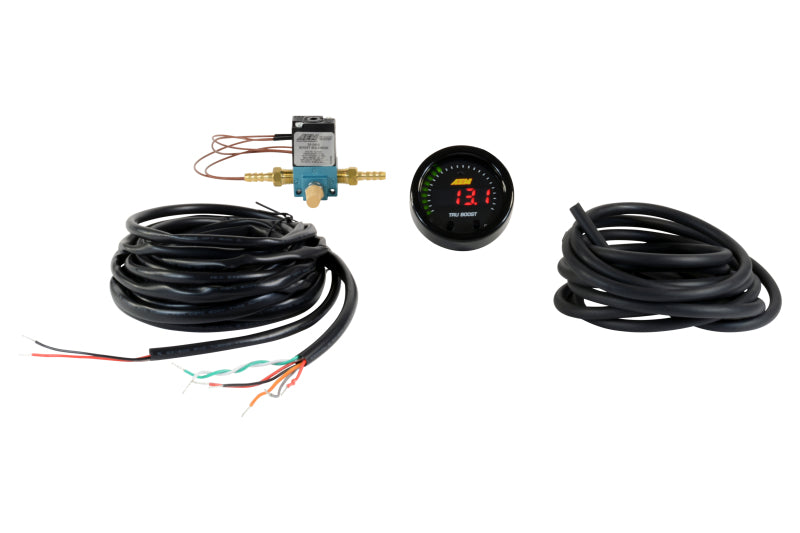

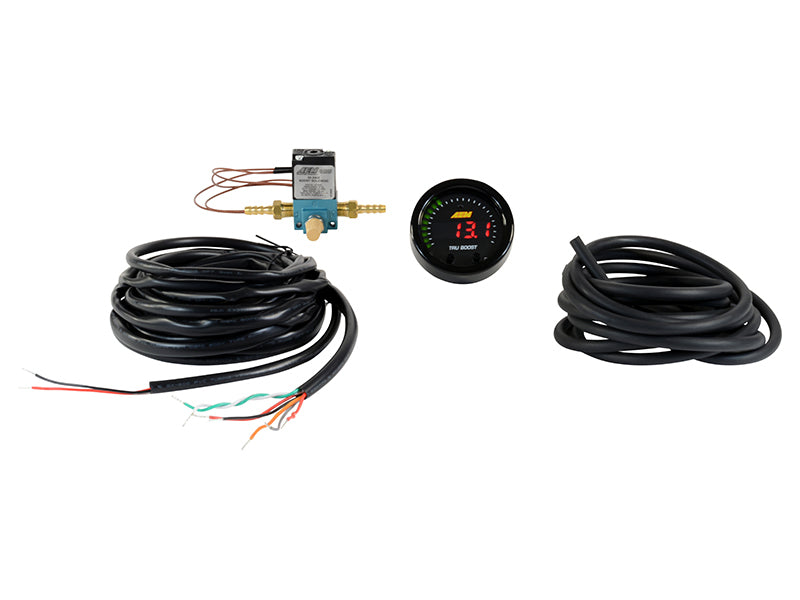

  • Tru-BoostX Controller Gauge with Boost Control Solenoid, 80 PSIg Internal MAP Sensor, Boost Hose Line and Wiring Harness.
  • 80 PSIg Internal MAP Sensor - Black Bezel - Black Face

Product Description - Short

  • AEM X-Series Tru-Boost Controller Gauge w/ Boost Control Solenoid 80PSIg Internal MAP Sensor
  • X-Series Tru-BoostX
  • X-Series Tru-boost

Features and Benefits

  • Overboost protection and programmable alarms, ground output for optional LED warning light
  • Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
  • Wastegate open pressure setting for controlling boost spikes and faster spool
  • On-board 80PSIg MAP sensor-no upgrade kit needed for high boost vehicles
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • Programmable center LED is 87% larger than original AEM gauges
  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • 24 green outer LEDs for quick reference to engine parameter
  • Two boost level settings and scramble boost setting
  • A boost display gauge and boost controller in one!
  • Display boost levels in PSI, BAR or kPa
  • Easy to program - no laptop required

Product Description - Long

  • Tru-BoostX Gauge with Boost Control Solenoid, 80 PSIg Internal MAP Sensor
  • AEM X-Series Tru-BoostX Gauge Controller Kit

AAIA Part Type Description

Turbocharger Electronic Boost Controller

Product Description - Invoice

X SERIES TruBoostX CONTRLR

Product Description - Abbreviated

AEMEMULTBOOS
