Edelbrock Carburetor Two-Barrel Progressive Throttle Linkage Kit 3X2

Manufacturer Part # : 1033

Market Description

• The Edelbrock part #1033 Progressive Linkage Kit is designed to smooth throttle response, eliminate flat spots and improve fuel economy. It achieves this by only opening the center carburetor at less than 50% (or 33%) pedal travel thus sharpening the venturi signal and eliminating the bottom end bog found in traditional multiple carburetor setups that open simultaneously. This kit can also be installed in a non-progressive configuration, if so desired, or can progressively operate a dual two-barrel carburetor configuration.- Due to the need for making fine adjustments and inspections, Edelbrock recommends installing the carburetors and linkage kit prior to installing the manifold on the engine. If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations- Capped rod may require trimming to clear the manifold- If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations- Be sure to always check that the arms will not become inverted after any adjustment. Some trial and error will berequired to achieve a properly balanced set up- Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage
• The Edelbrock part #1033 Progressive Linkage Kit is designed to smooth throttle response, eliminate flat spots and improve fuel economy. It achieves this by only opening the center carburetor at less than 50% (or 33%) pedal travel thus sharpening the venturi signal and eliminating the bottom end bog found in traditional multiple carburetor setups that open simultaneously. This kit can also be installed in a non-progressive configuration, if so desired, or can progressively operate a dual two-barrel carburetor configuration.
• Due to the need for making fine adjustments and inspections, Edelbrock recommends installing the carburetors and linkage kit prior to installing the manifold on the engine. If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations.
• If you have another make or model of manifold, it may be necessary to alter some of the details of this installation. This kit has a relatively universal application and can be safely installed in a variety of configurations.
• Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
• Be sure to always check that the arms will not become inverted after any adjustment. Some trial and error will be required to achieve a properly balanced set up.
• Capped rod may require trimming to clear the manifold.

Product Description - Extended

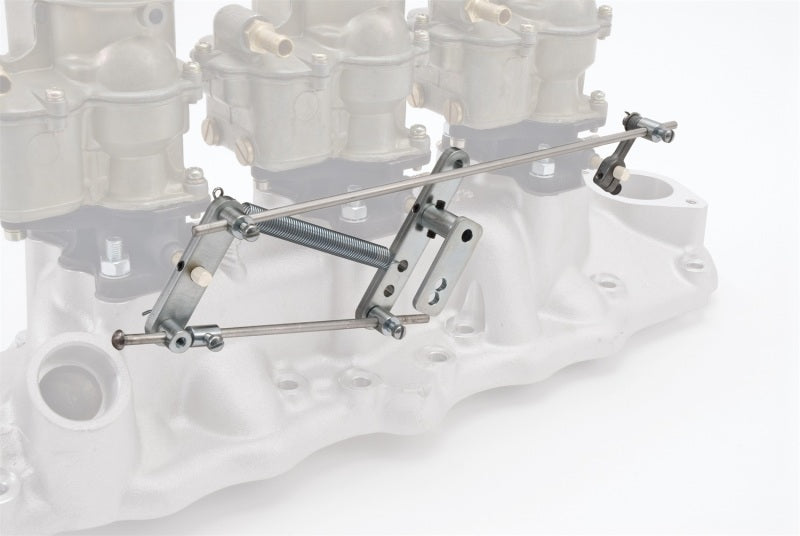

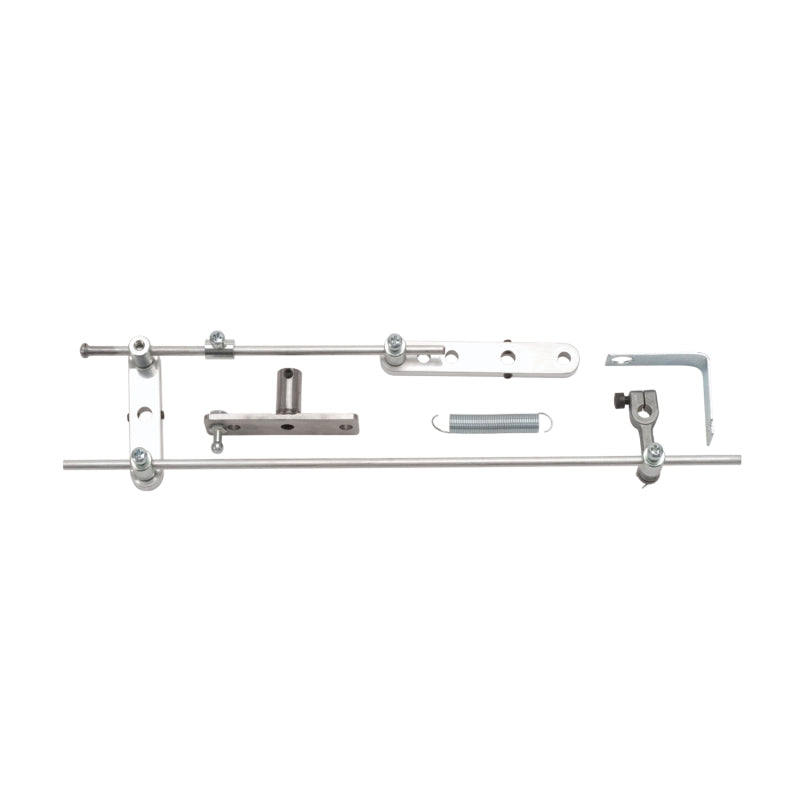

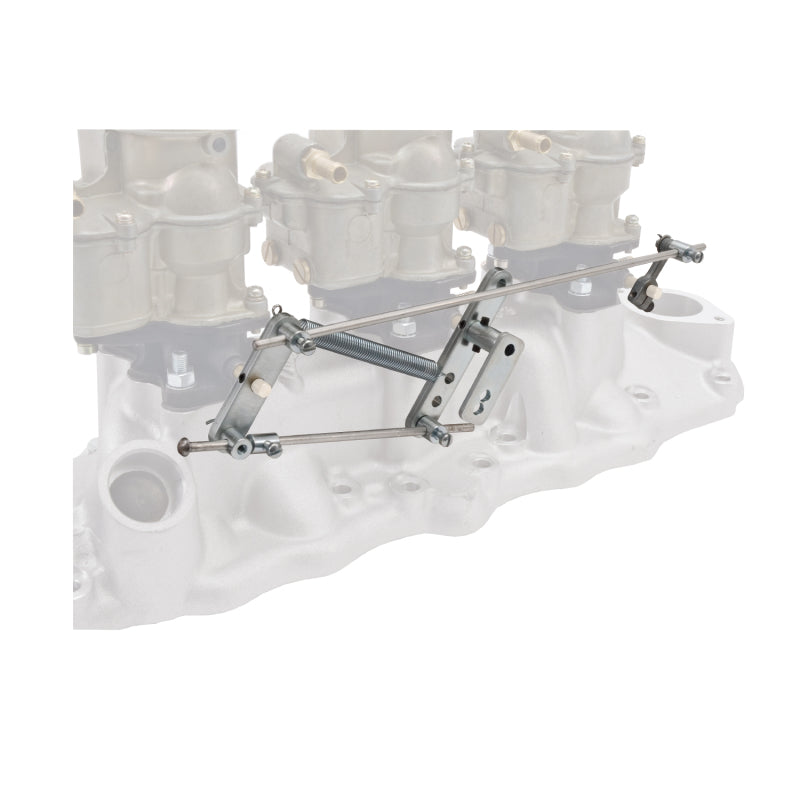

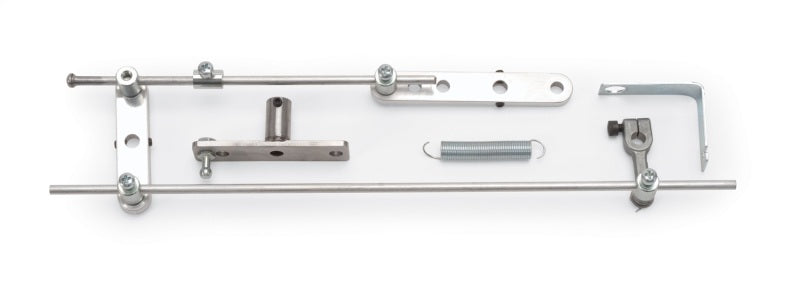

• The Edelbrock 1033 throttle linkage kit is an adjustable progressive linkage kit for triple (3) Edelbrock 94 2 bbl carburetors. The kit comes with return spring, bracket and linkage with provision for throttle connection.
• 94 Carburetor Progressive Throttle Linkage Kit for Tripple Carb Set-up

Key Search Words

2 bbl; 1033; Edelbrock; 3 Deuce; Triple 2 Barrell; 2 Barrell; small block Chevy; SBC; 3 bolt; linkage; throttle linkage; progressive linkage; C-357-B; 3-Carbs; 5418; 5419; 54191

Product Description - Long

• 94â„¢ Carburetor Progressive Throttle Linkage Kit for Tripple Carb Set-up
• Edelbrock 94™ Straight Throttle Linkage Kit

Product Description - Short

• Edelbrock Carburetor Two-Barrel Progressive Throttle Linkage Kit 3X2
• CARB COMPONENTS

Label Description

Carburetor Progressive Throttle Linkage Kit for Triple Carb Set-up

AAIA Part Type Description

Carburetor Accelerator Linkage Kit

Product Description - Invoice

Edelbrock Throttle Linkage Kit

Features and Benefits

With Progressive Opening

Shipping Restrictions

{ eo : 3in.}

Product Description - Abbreviated

Linkage Kit
