Edelbrock Chevy Gen III/IV LS Pro-Flo 4+ EFI Engine Management System

In stock
Regular price $3,294.00
Product INFO
  • Vendor Edelbrock
  • SKU T14.1030657
  • Barcode 36130
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 36130


Market Description

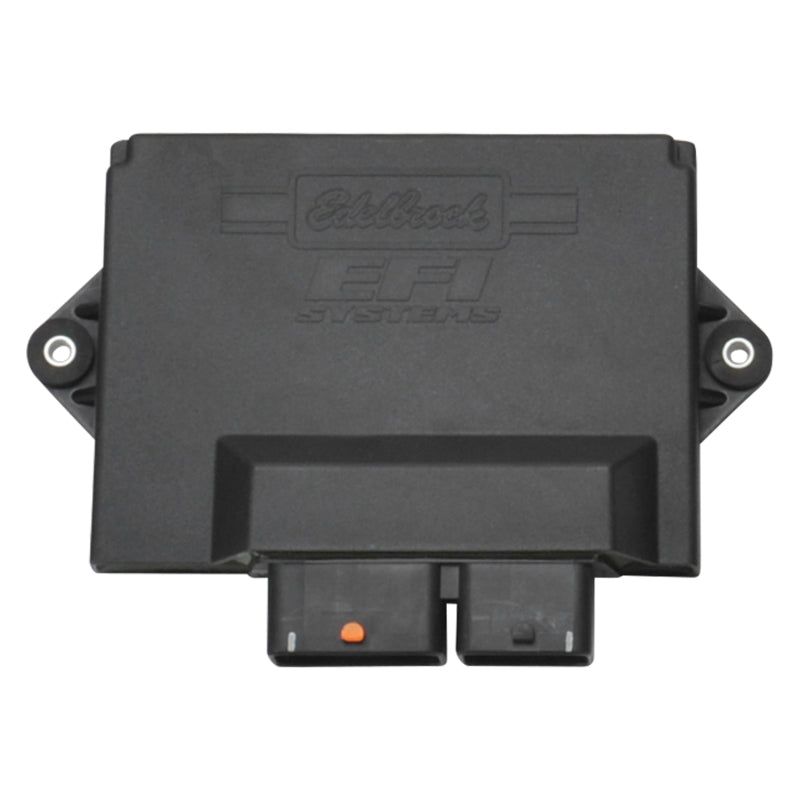

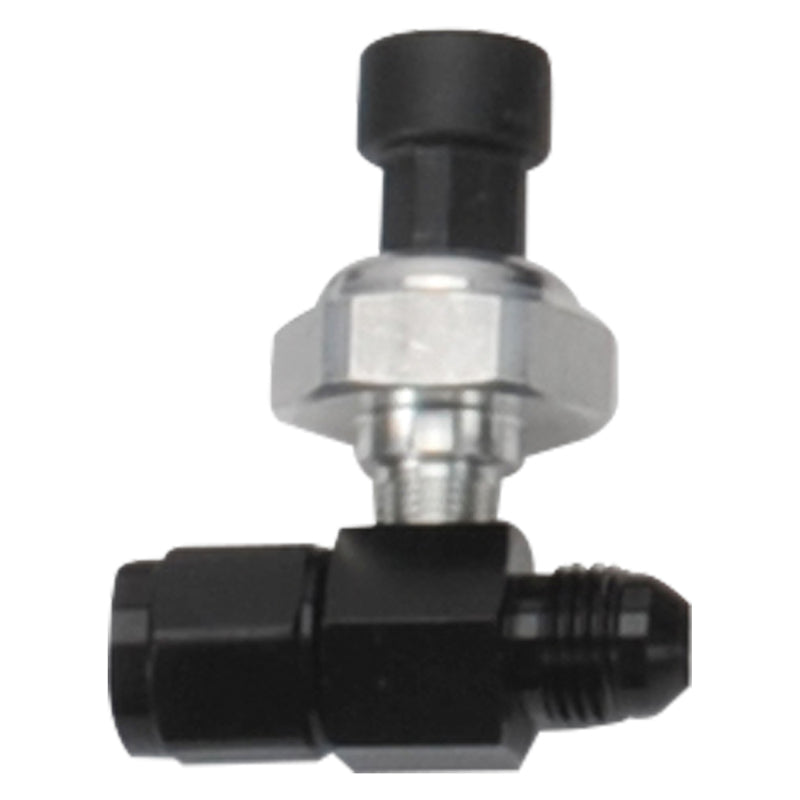

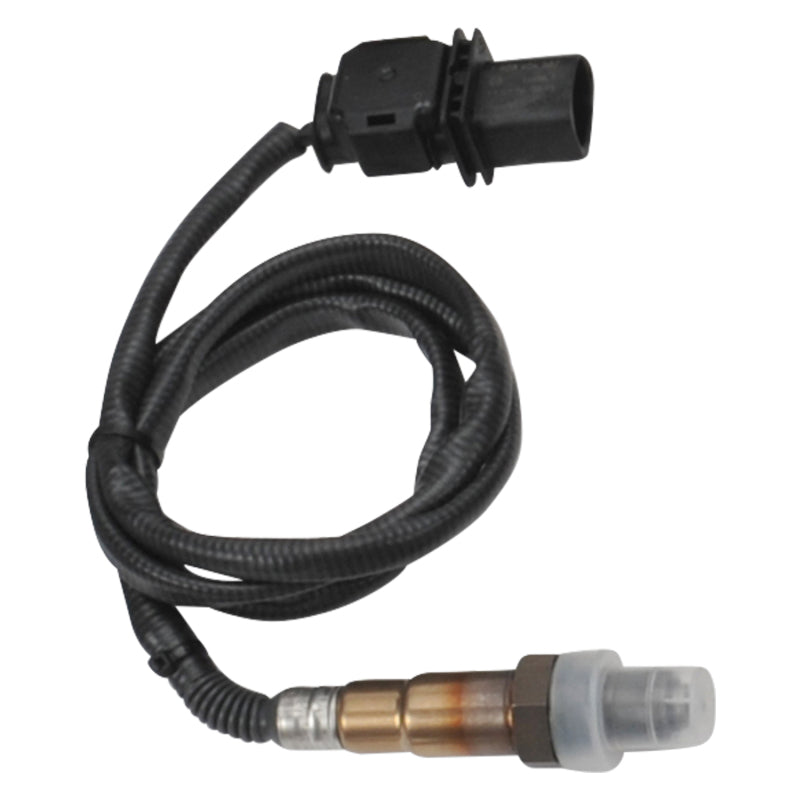

  • MAP, O2, and fuel pressure sensors. Note that some supporting wiring harnesses for drive-by-wire and alternator configuration are necessary determined by the reluctor wheel (either 24x or 58x). LS applications implement a speed density fueling strategy using an OEM MAP sensor which eliminates the factory MAF sensor, inlet air piping and air box. This allows unlimited options in your air intake design. The Pro-Flo 4+ ECU provides mounting versatility with a compact weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock's E-Tuner 4 software for Android tablets and smartphones. A non-adjustable Alternator Control is set to regulate at 14.5 volts and only OEM alternators are supported. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. Pro-Flo 4+ is covered by a 2-year warranty and is backed by the industry's most extensive technical support team.

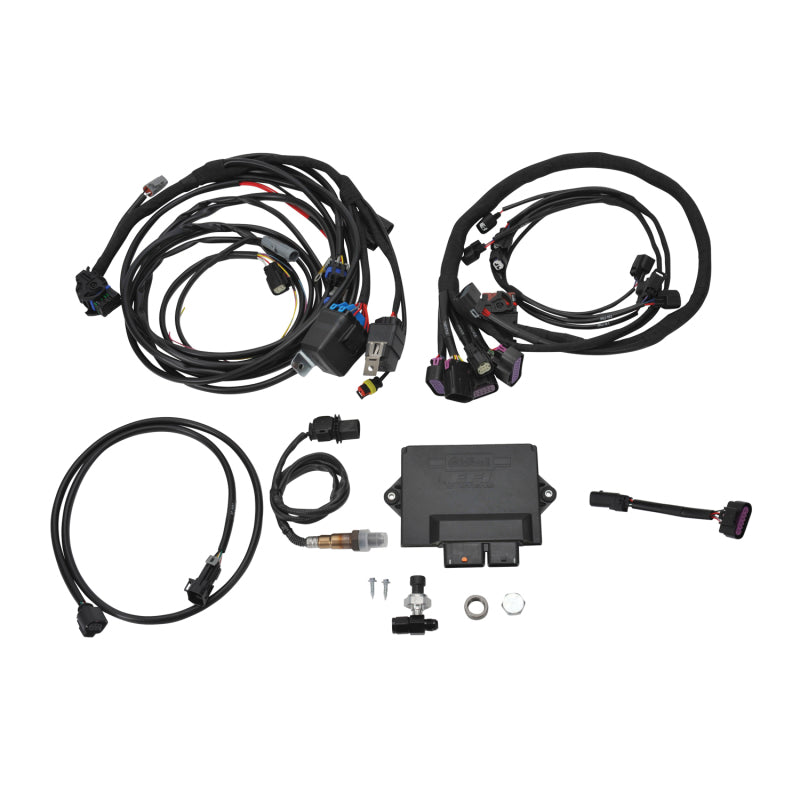

  • Edelbrock Pro-Flo 4+ kit #36130 is an EFI engine management system that simplifies the installation of a modern factory Chevy Gen III/IV LS engine with EFI and drive-by-wire (DBW) into a non-EFI muscle car, truck or hot rod. Pro-Flo 4+ allows you to leave the factory ECU and wiring harnesses at the junkyard by providing a plug-and-play control system that is specially designed for the Gen III/IV LS engine, implementing DBW throttle that is calibrated for best performance in hot rod engine swap applications and is fully compatible with all factory actuators. This system also supports dual DBW throttle bodies for use with the Cross-Ram LS3 intake manifold. Pro-Flo 4+ kit #36130 includes an ECU with base calibration

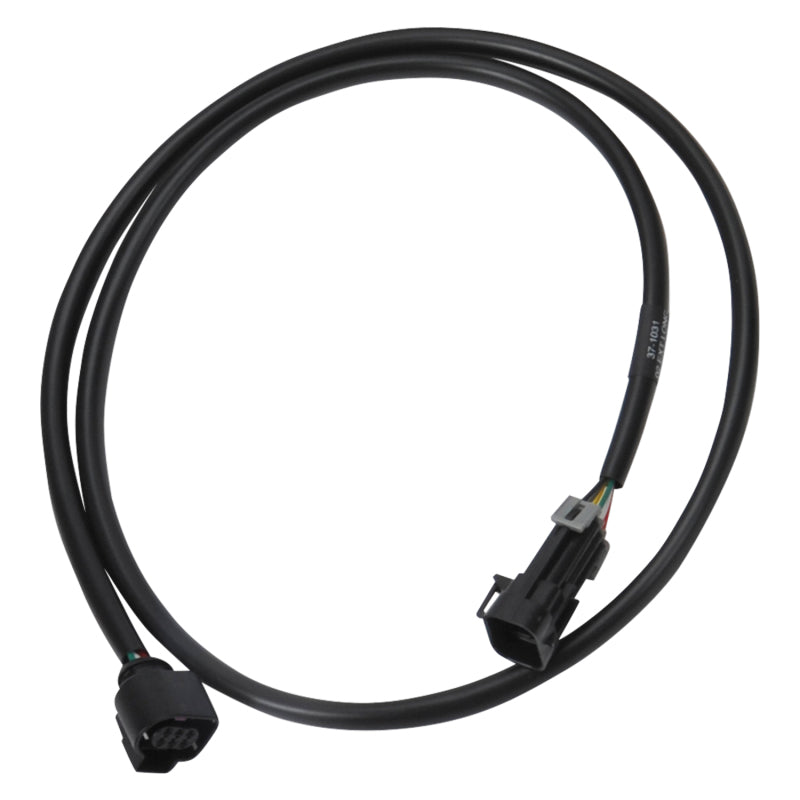

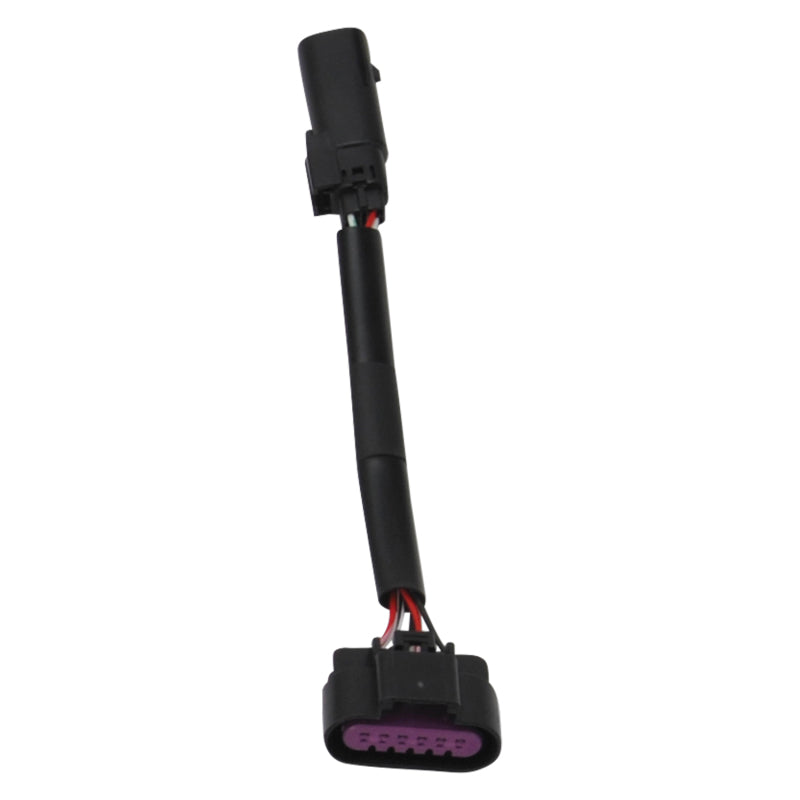

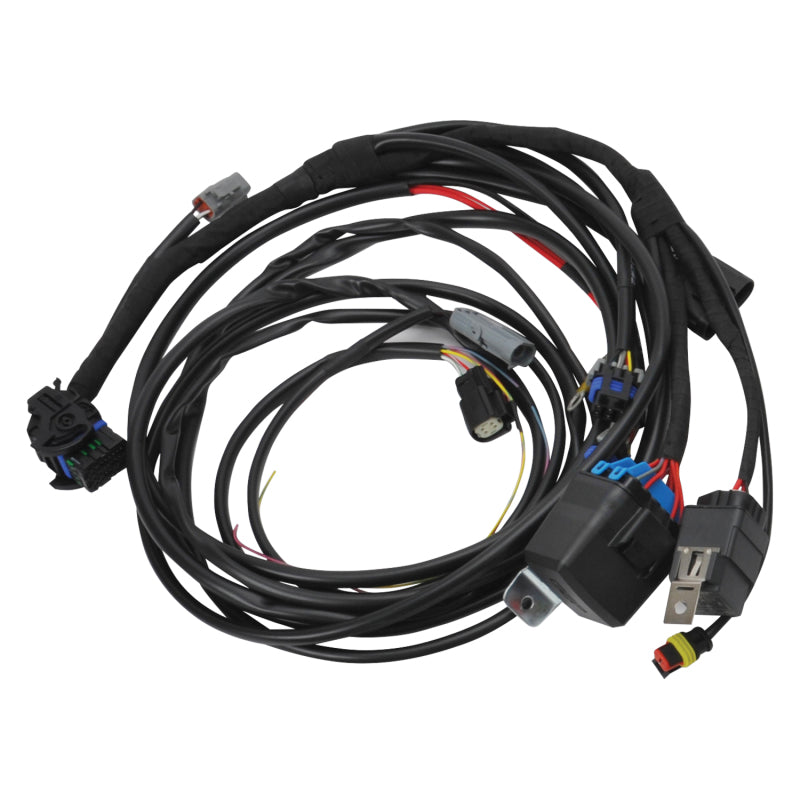

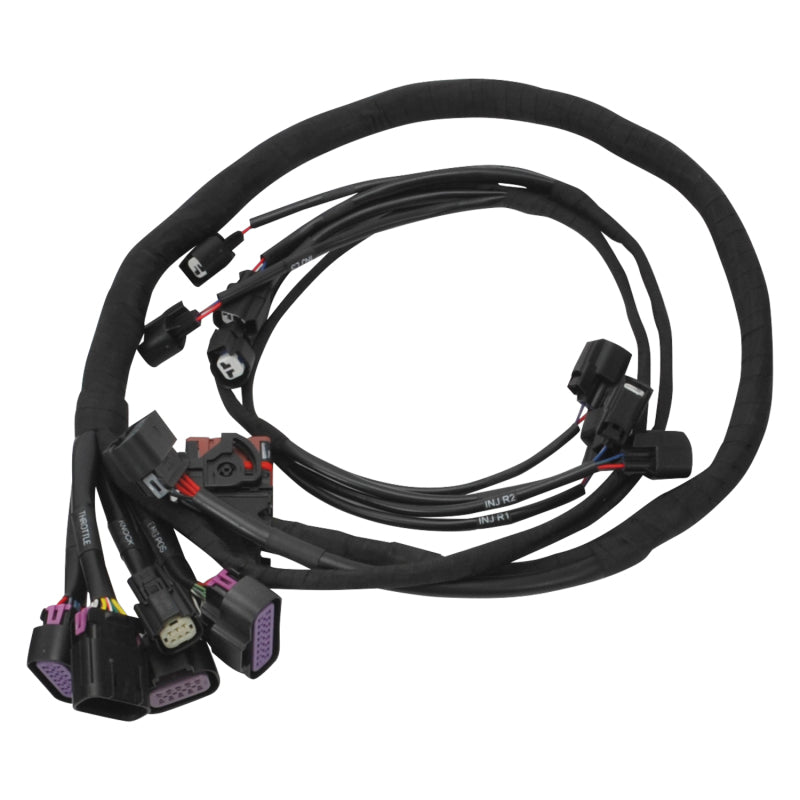

  • OEM-style wiring harnesses

Product Description - Extended

  • This item requires additional components to complete the installation. See below for a list of items required to be purchased separately.
  • Pro-Flo 4+ simplifies installing a modern factory Chevy Gen III/IV LS engine into a non-EFI vehicle

Label Description

Pro-Flo 4+ EFI Engine Management System #36130 for Chevy Gen III/IV LS w/Tablet

Product Description - Long

Pro-Flo 4+ EFI Fuel Management System #36130 for Chevy Gen III/IV LS w/Tablet

Product Description - Short

Edelbrock Chevy Gen III/IV LS Pro-Flo 4+ EFI Engine Management System

Features and Benefits

  • Works with most intake manifolds with OEM DBW throttle bodies
  • Works with 2- and 4-wire OEM alternator
  • Supports 24x and 58x crank/cam types
  • Simple plug-and-play installation
  • Supports dual throttle bodies
  • No laptop tuning required

Product Description - Invoice

Pro-Flo 4+ EFI Kit Chevy LS Gen III/IV

AAIA Part Type Description

Fuel Injection Calibration Module

Product Description - Abbreviated

ProFlo4+ EFI
