Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access

Name: Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access
Brand: Edelbrock
SKU: T14.126147
Price: 61591.00 NZD
Availability: OutOfStock

In stock

No reviews

$61,591.00

Product INFO

Vendor Edelbrock
SKU T14.126147
Barcode 46760

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 46760

Market Description

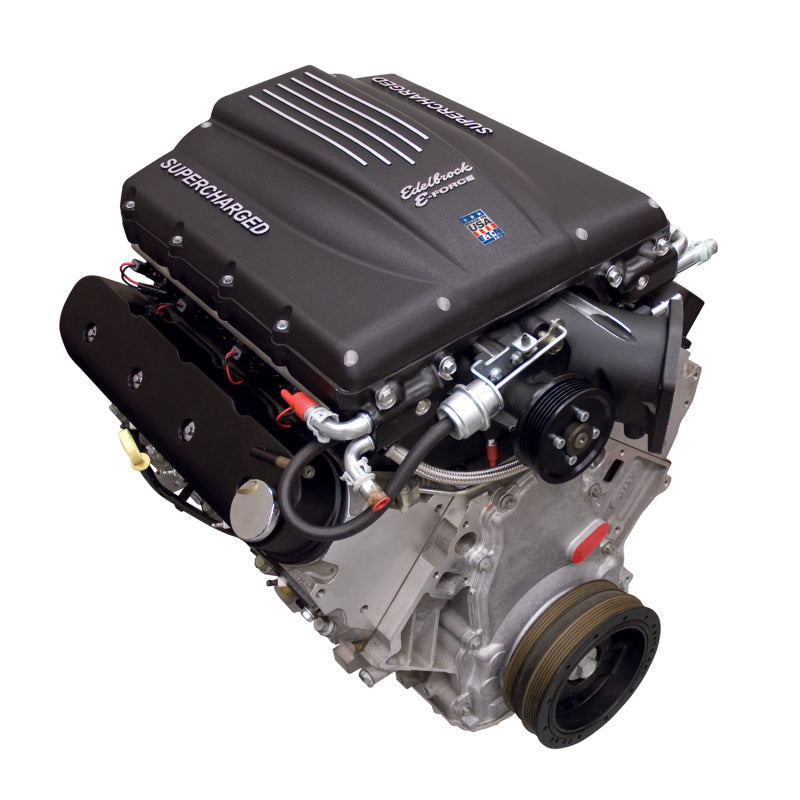

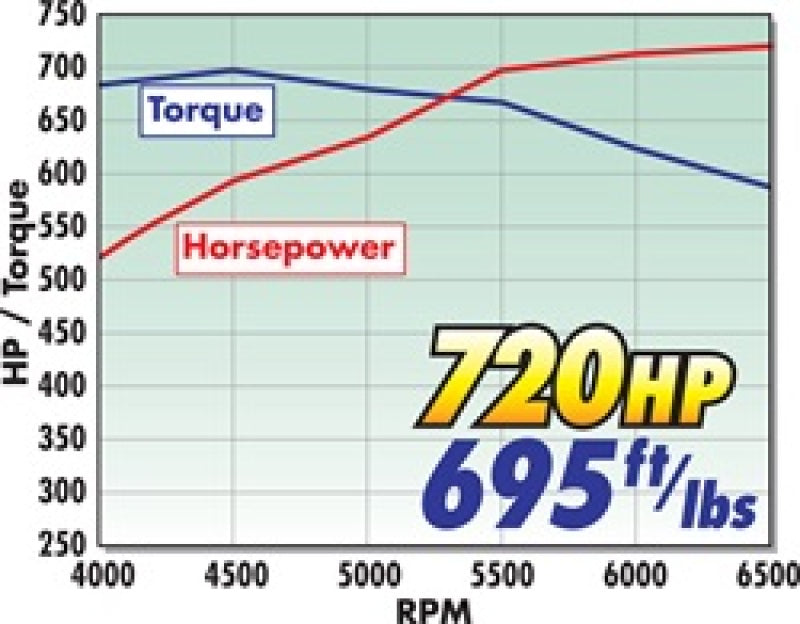

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons.Sitting on top is an Edelbrock E-Force supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.Engine Specifications: - Displacement: 416 c.i.d.- Bore: 4.065"- Stroke: 4.000"- Bore: 4.065"- Stroke: 4.0"- Horsepower: 720 hp- Torque: 695 ft-lbs.- Compression: 9.5:1- Block: LS3 Aluminum- Crankshaft: Forged 4340- Pistons: Forged Aluminum - 18cc- Rods: Forged H-Beam- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA- Rocker Arms: LS3, 1.7 ratio- Induction: E-Force Supercharger System #1540- Cylinder Heads: GM with Edelbrock Valve Springs #5768- Finish: Black powder coated- Warranty: 2-year / Unlimited mileage

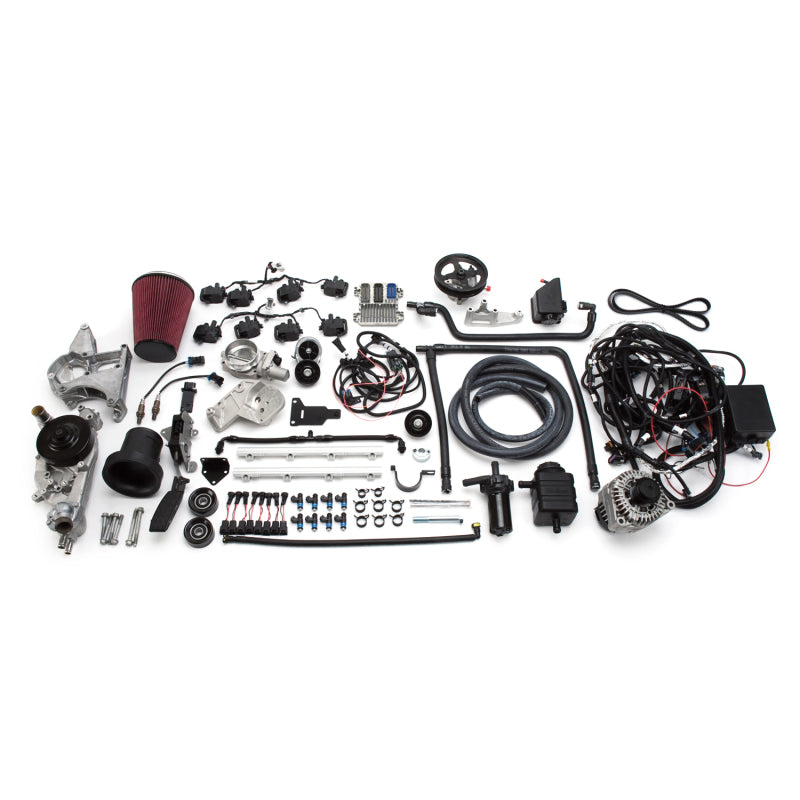

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. Sitting on top is an Edelbrock supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a driver's side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation. Engine Specifications: Displacement: 416 c.i.d.
Cylinder Heads: GM with Edelbrock Valve Springs #5768
Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA
Induction: Supercharger System #1540
Warranty: 2-year / Unlimited mileage
Pistons: Forged Aluminum - 18cc
Rocker Arms: LS3, 1.7 ratio
Finish: Black powder coated
Crankshaft: Forged 4340
Torque: 695 ft-lbs.
Block: LS3 Aluminum
Rods: Forged H-Beam
Horsepower: 720 hp
Compression: 9.5:1
Stroke: 4.000in
Bore: 4.065in
Stroke: 4.0in

Key Search Words

Edelbrock; Edelbrock Valve Cover; Valve Cover; PCV; Breather; PCV Baffle; Baffle; Breather hole; PCV hole; 1-1/4in. diameter hole; Aluminum roller rocker; Aluminum; Stamp steel; sand cast; 4683; Signature Series Valve Covers; Chevrolet; 396-502; V8; 65 lat

Product Description - Extended

Edelbrock part #46760 Supercharged LS 416 crate engine is a complete 416 c.i.d. supercharged, LS engine, that produces an astounding 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas
CRATE ENGINE LS3 SC W/COMPLETE EFI/ACCESSORIES

Product Description - Short

Edelbrock Crate Engine Eforce Supercharged Ls 416 CI w/ Complete EFI And Access
CRATE ENGINE

Label Description

Crate Engine #46760 GM LS3 Gen V 416, Supercharged, 720 HP, 695 ft-lbs
Supercharged LS 416 Crate Engine

Product Description - Long

Supercharged LS 416 Crate Engine and Electronics

Application Summary

Chevrolet:Small-Block Gen IV LS3:416 (6.8L)

Product Description - Invoice

Supercharged GM LS 416 crate engine

AAIA Part Type Description

Engine Complete Assembly

Features and Benefits

Black Powder-Coat Finish

Shipping Restrictions

{ eo : 8in.}
