Manufacturer Part # : 77678
Market Description

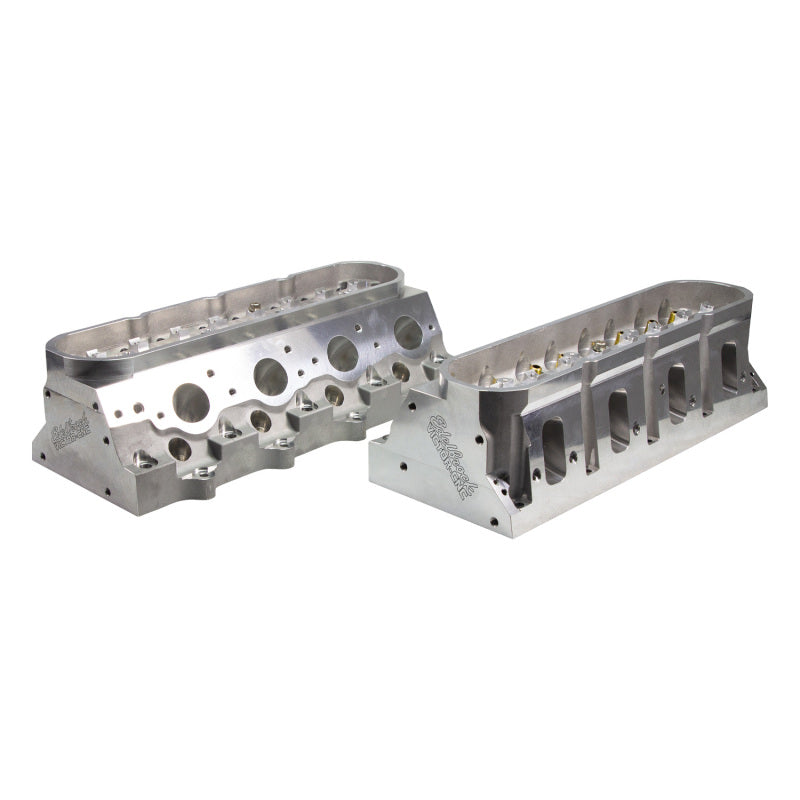

The Edelbrock Victor CNC 12 6-Bolt Head for GM LS7 291cc/69cc Individual #77678 is designed for maximum effort naturally aspirated and boosted applications. It features .220 raised intake runners and .100 raised exhaust ports that provide a better line of sight into the cylinders and allow for an improved short turn. The raised intake runner design fits both stock and aftermarket LS7 intake manifolds and can be used with stock or aftermarket valve trains. The head utilizes the GM LS 6-bolt design, making it compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and improves head gasket sealing – ideal for high compression naturally aspirated engines and high boost applications. Features include a 12-degree valve angle and fully CNC-machined ports for maximum airflow. CNC-machined runners and chambers, as well as the .220 raised intake ports and 12-degree valve angle, increase overall flow capability, while a revised water jacket design enhances thermal conductivity and tunability. The manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700 thick deck and .400 raised valve cover rail make this head ideal for maximum horsepower and high valve lift applications. All Edelbrock Victor CNC heads feature patented Clean Cast Technology(TM) , a process that eliminates casting flaws and promotes a smoother internal surface finish for greater air and coolant flow. These benefits provide more power and increased cooling ability. Part #77678 is a bare head that features: 291cc runners, 69cc chambers, 2.200 intake/1.615 exhaust valves, copper valve seats and no down nozzles.
Features and Benefits
Premium 110 BHN aluminum alloy, .220" raised intake port, .100" raised exhaust port, CI PM valve seats, 307cc or 291cc intake port volume, 2.250" or 2.200" x 1.615" valve job
Product Description - Extended
The Edelbrock Victor CNC 12 6-Bolt Head for GM LS7 291cc/69cc Individual #77678 is specifically designed for maximum effort naturally aspirated and boosted applications.
Product Description - Short
Edelbrock LS7 Victor CNC 291cc 2.200in x 1.615in VJ Copper Bare Head
Label Description
Victor CNC LS7 291CC Copper Seat 2.200/1.615 - Bare
Product Description - Invoice
Victor CNC LS7 Head Copper Valve seats
AAIA Part Type Description
Engine Cylinder Head
Product Description - Abbreviated
Cyl. Head
