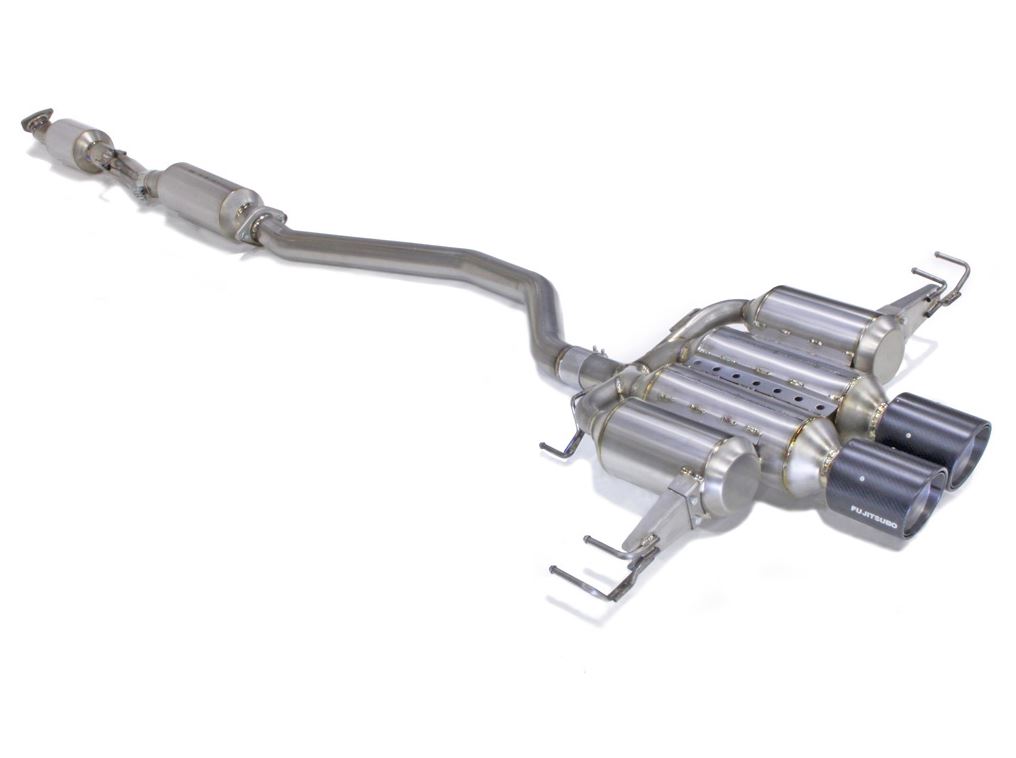

FUJITSUBO A-RM+C: CIVIC TYPE R FL5 23-24

In stock
Regular price $6,133.00
Regular price $6,814.00 Sale Sale price $6,133.00
Product INFO
  • Vendor FUJITSUBO
  • SKU FUJ-270-52114
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

 Detailed Description


product nameProduct Name A-RM+c
Product numberItem Number 270-52114
pricePrice
Certification acquisition displayAuthorized Number JQR60234102 K20Ct
JAN CODE 4944997253147
Compatible car modelsApplication FL5 Civic Type R (Civic)
Body model: 6BA-FL5
Engine model: K20C
Year: R4.9~ (2022.9~)

NoticesSpecial Note
remarksRemarks Body: titanium, tail: carbon.
*When using this product, the genuine exhaust electronic control valve cannot be used.
Genuine exhaust valve canceller is included.
Proximity exhaust noise was measured at 3500 rpm since the specified rotation speed was not reached.

Specificationspecification

    modelType
    • Titanium + carbon model
    outlet shapeTailtip Style f118 round slash (carbon W)
    pipe diameterPipe Diameter f70.0-f60.5

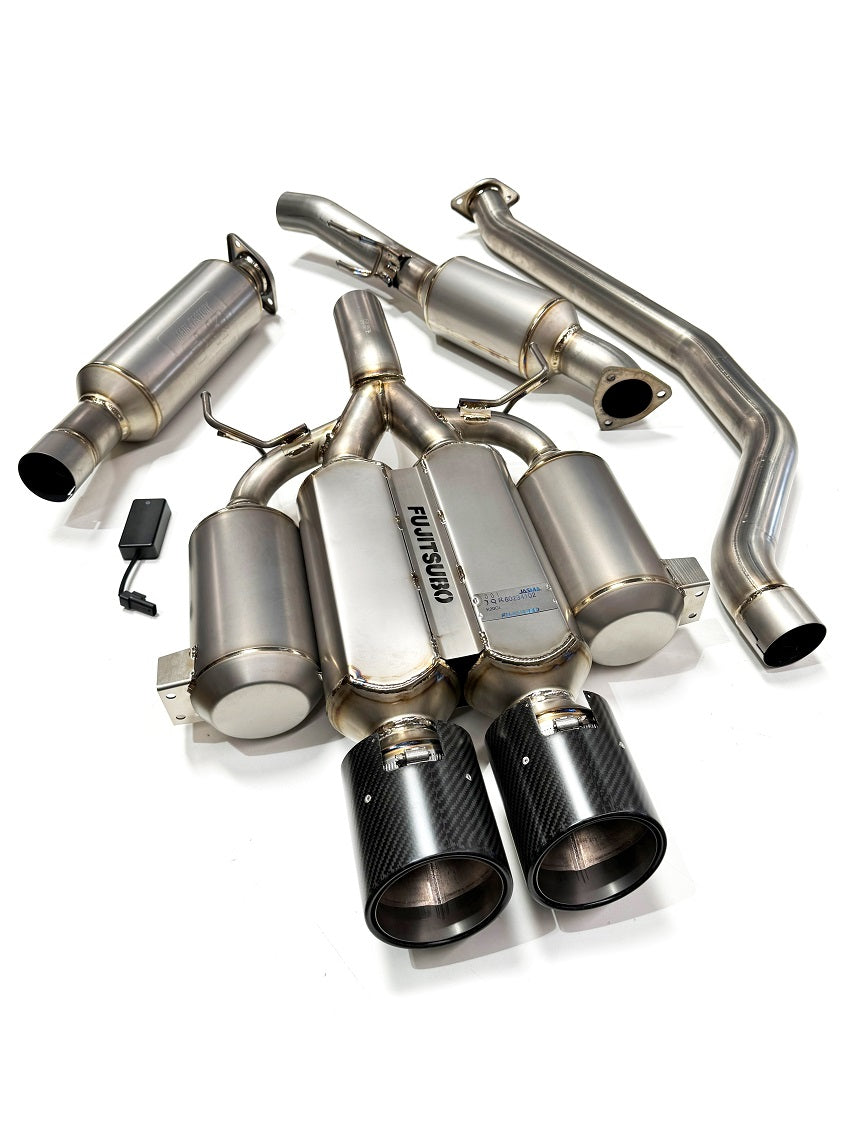

    Accessories listFitting Parts • 080-37001 Plate Gasket×1 [Click here to order]
    • 080-37601 Plate Gasket×1 [Click here to order]
    •M10×20 Flange bolt/flange nut set×2
    •Slit clamp installation kit SLIT -HC70×2
    •ARM+c dedicated split bracket [L]×1
    •ARM+c dedicated split bracket [R]×1
    •M8 plate washer×4
    •M8 nut (S45C)×4
    •M8×25mm bolt (8T) ×4
    •M8 spring washer ×4
    •Valve canceller ×1
    •Special carbon tail pipe set ×2



    Number



    Standard (STD) FUJITSUBO
    Intermediate acceleration (40km/h?80km/h, 2nd gear)Acceleration 3.5 seconds 3.4 seconds
    Maximum powerPeak Power 214kw(291.0ps)/6144rpm 218kw(296.5hp)/6465rpm
    Maximum torquePeak Torque 418.5Nm (42.7kg?m) / 3215rpm 420.4Nm (42.9kg-m)/3565rpm
    Muffler weightWeight 18.3kg 12.9kg
    Volume IdlingIdling Exhaust Noise 65dB 71dB
    Close-range exhaust noise (4875 rpm)Proximity Exhaust Noise 83dB 89dB
    2000rpmExhaust Noise 70dB 81dB
    3000rpmExhaust Noise 76dB 78dB
    1000rpm to 3000rpmExhaust Noise 86dB 91dB



    Road ClearanceGround height



    Measurement vehicle 6BA-FL5
    Roof height 1410mm (vehicle inspection certificate 1400mm)
    Measurement area Intermediate Pipe
    Axle distance etc. 970mm behind the front axle
    Minimum ground clearance 144mm



    *In-house test values. Data may vary depending on the vehicle and conditions used.
