ICON 09-12 Ram 2500/3500 4.5in Stage 3 Suspension System

In stock
Regular price $8,565.00
Product INFO
  • Vendor ICON
  • SKU T14.749779G
  • Barcode K214552T
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K214552T


Market Description

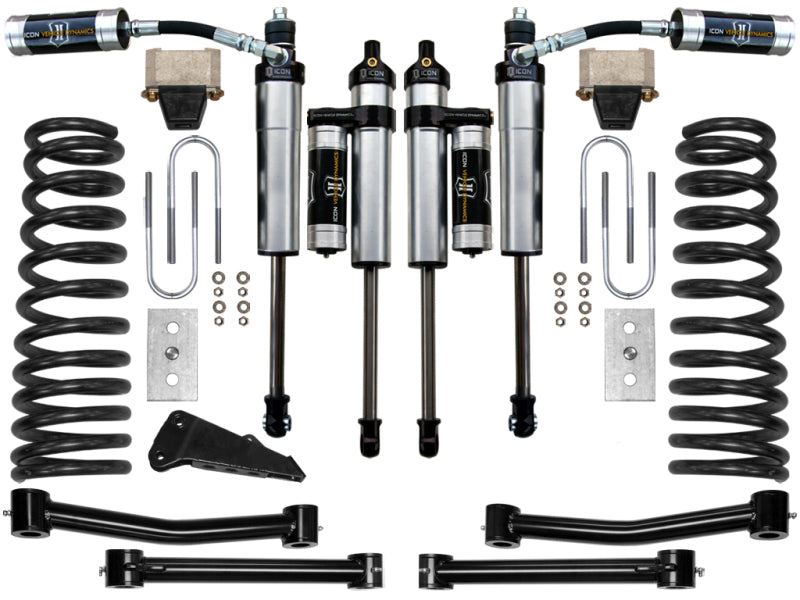

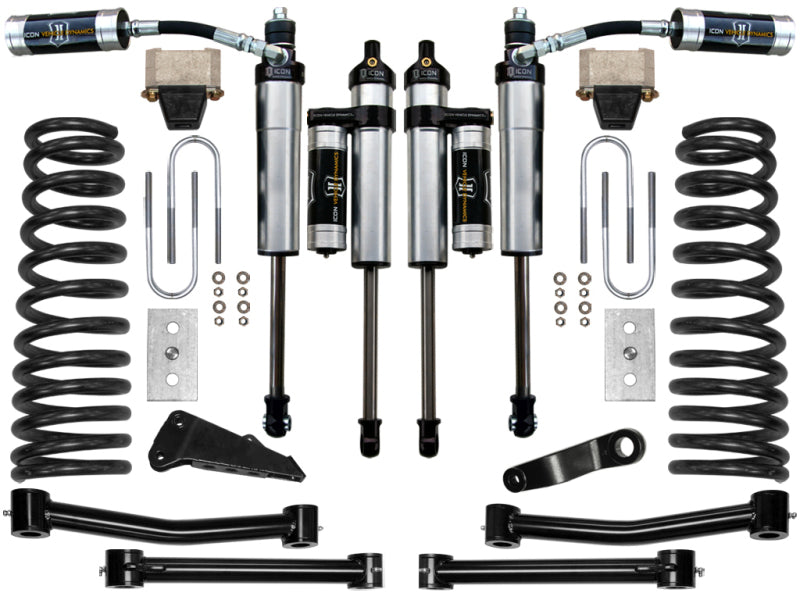

2009-2012 Ram 2500/3500 4.5" Stage 3 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 3 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5" V.S. Series shocks, rear 2.5" lift blocks with u-bolts. ICON 2.5" Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap & rod ends, 7/8" shafts for strength, and the industry only forged stem on a 2.5" shock with rolled threads. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This mid-level performance system with billet link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.

Features and Benefits

  • 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • ICON engineered dual rate coil springs with match tuned 2.5" V.S. Series reservoir shocks
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Correctly positioned steering and track bar components
  • Heavy-duty steel upper and lower link bars
  • No drive shaft modifications needed
  • Level stance front to rear
  • Less body roll than stock

Associated Comments

  • APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
  • APPLICATION NOTE #101: CALL ICON FOR 2013 RAM 2500/3500 VEHICLES
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • OEM Wheels & Tires Fitment: Yes
  • Ships in Multiple Boxes

Product Description - Extended

2009-2012 RAM 2500/3500 4.5" LIFT STAGE 3 SUSPENSION SYSTEM

Product Description - Short

  • ICON 09-12 Ram 2500/3500 4.5in Stage 3 Suspension System
  • 4.5" SUSP SYS STG 3

Product Description - Long

09-12 RAM 2500/3500 4.5" STAGE 3 SUSPENSION SYSTEM

Product Description - Invoice

09-12 RAM HD 4.5" STAGE 3 SUSP SYSTEM

AAIA Part Type Description

Suspension Lift Kit
