ICON 11-16 Ford F-250/F-350 7in Stage 4 Suspension System

In stock
Regular price $11,112.00
Product INFO
  • Vendor ICON
  • SKU T14.749723G
  • Barcode K67303
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K67303


Market Description

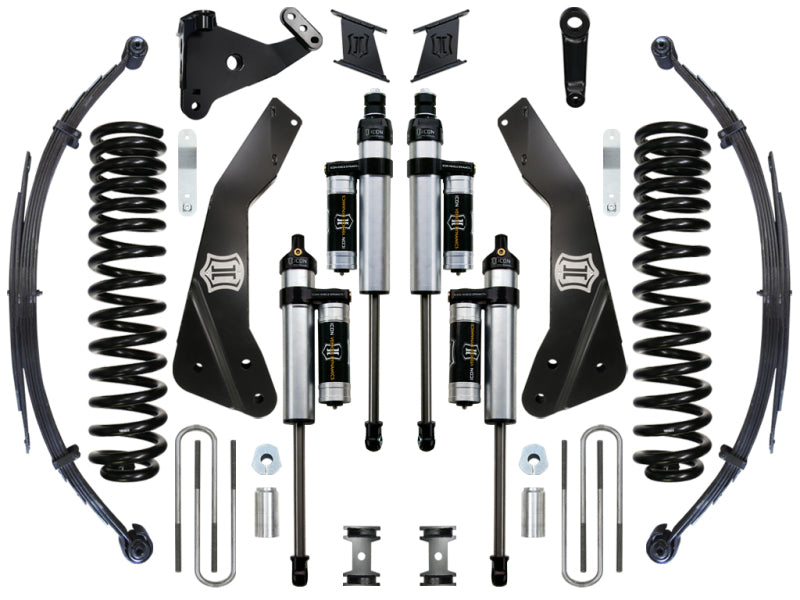

ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity. ICON’s 7” Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 4 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop brackets with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.5 Aluminum Series piggyback reservoir front & rear shocks. ICON 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

Features and Benefits

  • 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series piggyback reservoir shocks
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Rear progressive design leaf pack for smooth compliant ride
  • Correctly positioned steering and track bar components
  • No drive shaft modifications needed
  • Heavy duty radius arm drop brackets
  • Decreased body roll

Associated Comments

  • APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • APPLICATION NOTE #57: RETAINS FACTORY BLOCK FOR TRUCK TO SIT LEVEL WITH FRONT OF TRUCK
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • OEM Wheels & Tires Fitment: Yes
  • Ships in multiple boxes

Product Description - Extended

2011-2016 FORD F250/F350 7" LIFT STAGE 4 SUSPENSION SYSTEM

Product Description - Short

  • ICON 11-16 Ford F-250/F-350 7in Stage 4 Suspension System
  • SUSPENSION SYSTEM

Product Description - Long

11-16 FORD F250/F350 7" STAGE 4 SUSPENSION SYSTEM

Product Description - Invoice

11-16 F250/F350 7" STAGE 4 SUSP SYSTEM

AAIA Part Type Description

Suspension Lift Kit
