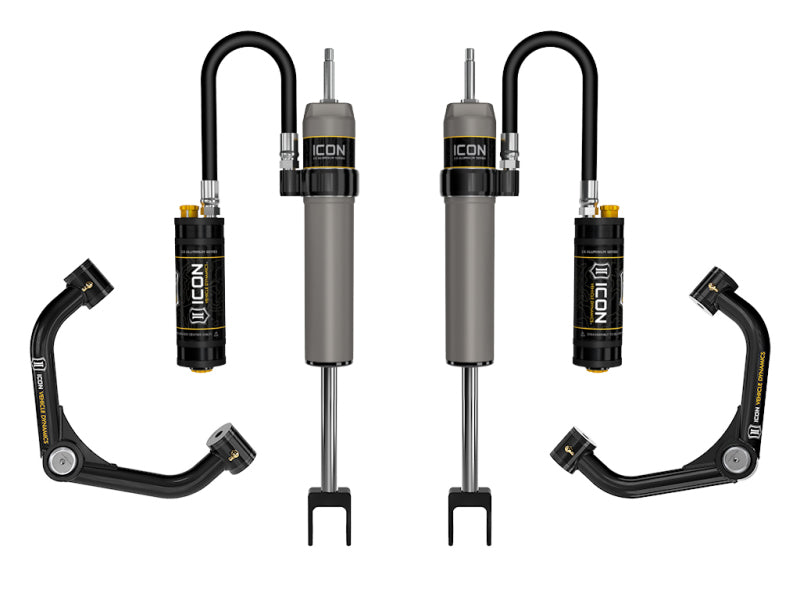

ICON 11-19 GM HD 0-2in 2.5 CDCV Shock System w/Upper Control Arm

Name: ICON 11-19 GM HD 0-2in 2.5 CDCV Shock System w/Upper Control Arm
Brand: ICON
SKU: T14.355260
Price: 4082.00 NZD
Availability: OutOfStock

In stock

No reviews

$4,082.00

Product INFO

Vendor ICON
SKU T14.355260
Barcode 78725

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 78725

Market Description

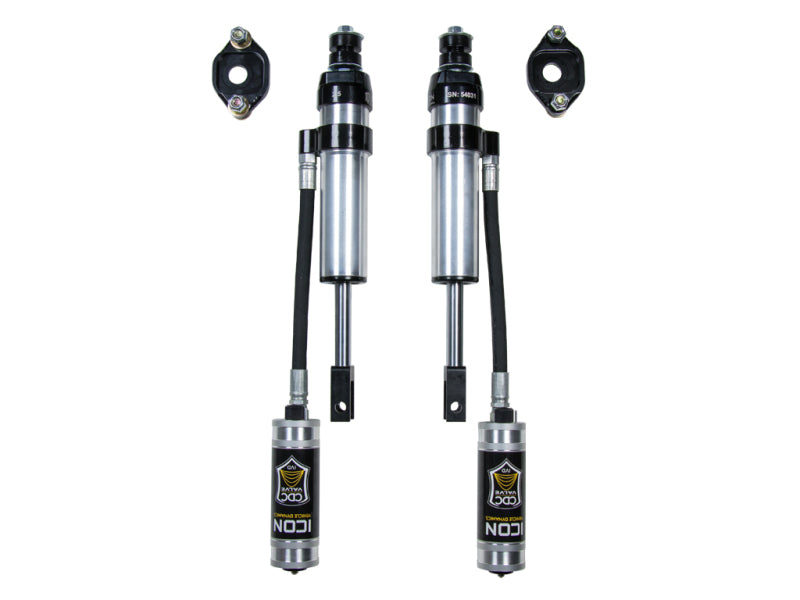

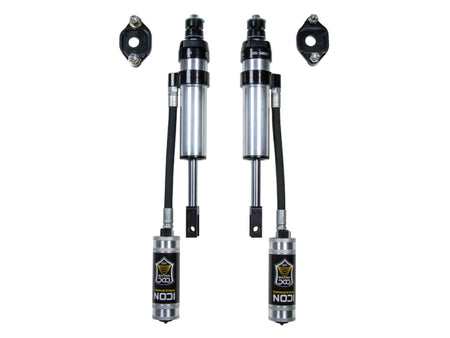

To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all of ICON's Shock Absorbers, the V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

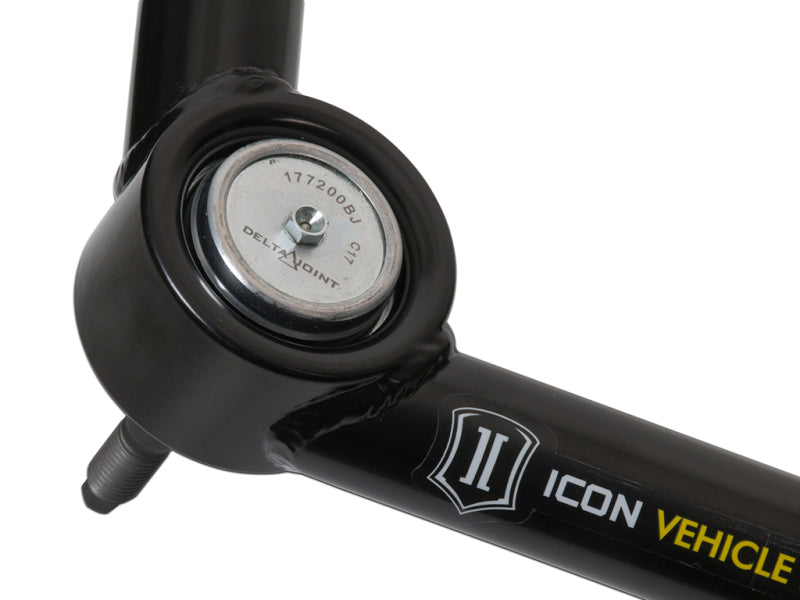

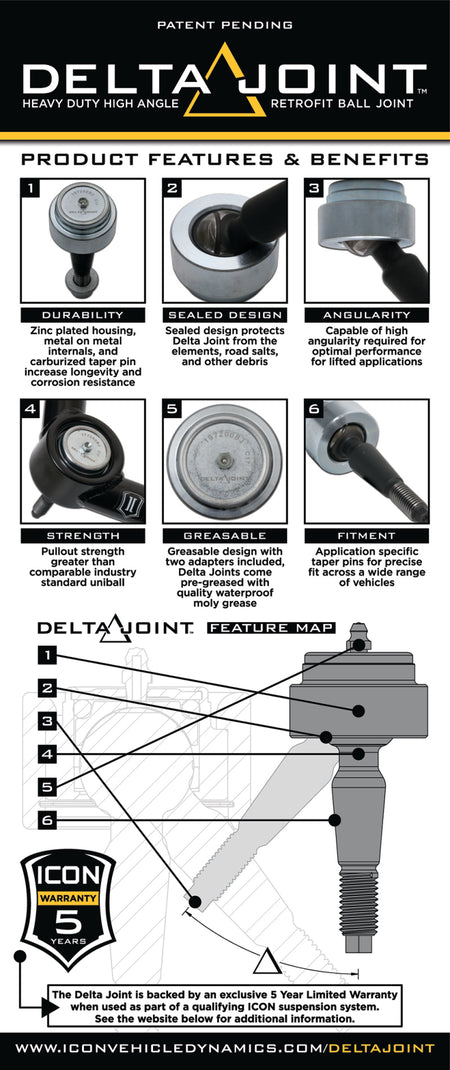

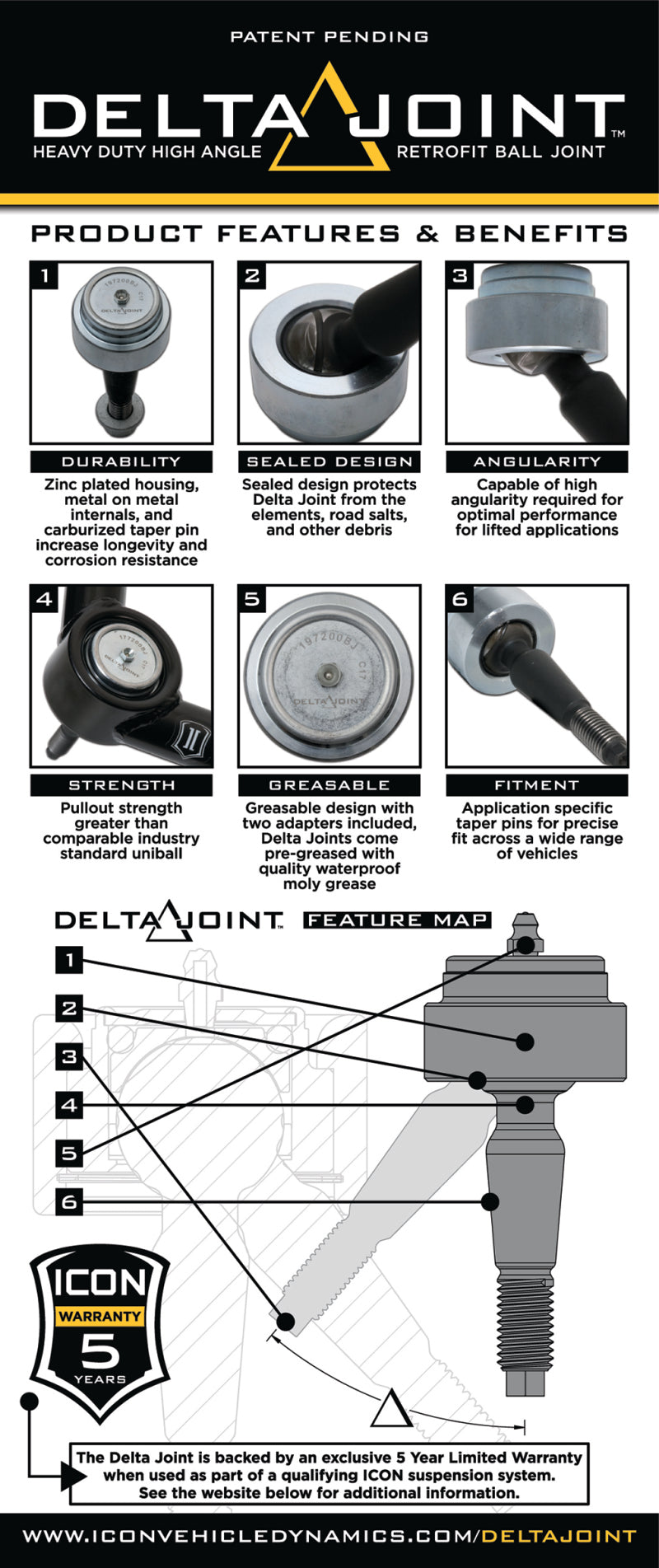

These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Take the performance of your 2011-2019 GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel (nearly 50%) when paired with our 2.0 or 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2011-2019 GM HD.

Features and Benefits

One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
PTFE lined spherical bearings and application specific mounting hardware
7/8" diameter induction hardened, chrome plated shock shaft
Nitrogen charged monotube design with remote reservoir
6061 aircraft grade aluminum CNC machined components
CNC Machined Bushing Housings and Sleeves
Black Semi-Gloss Powder Coat Finish

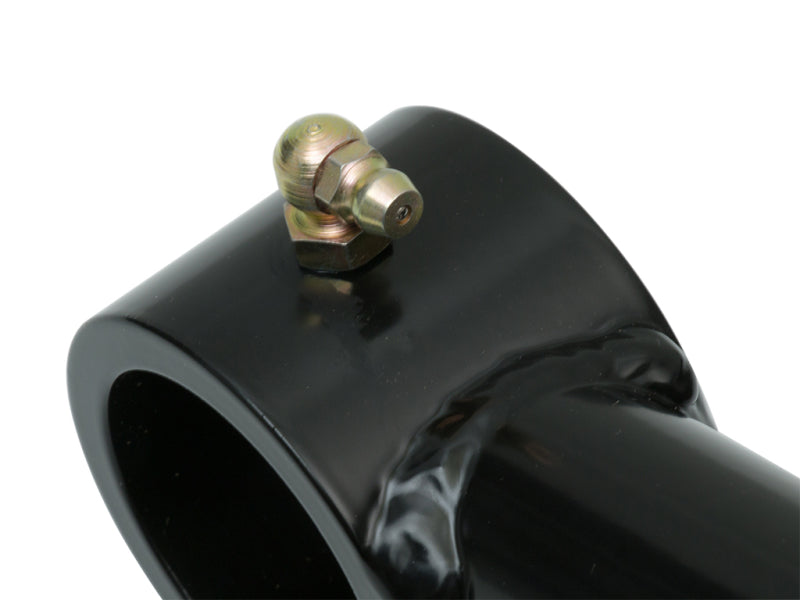

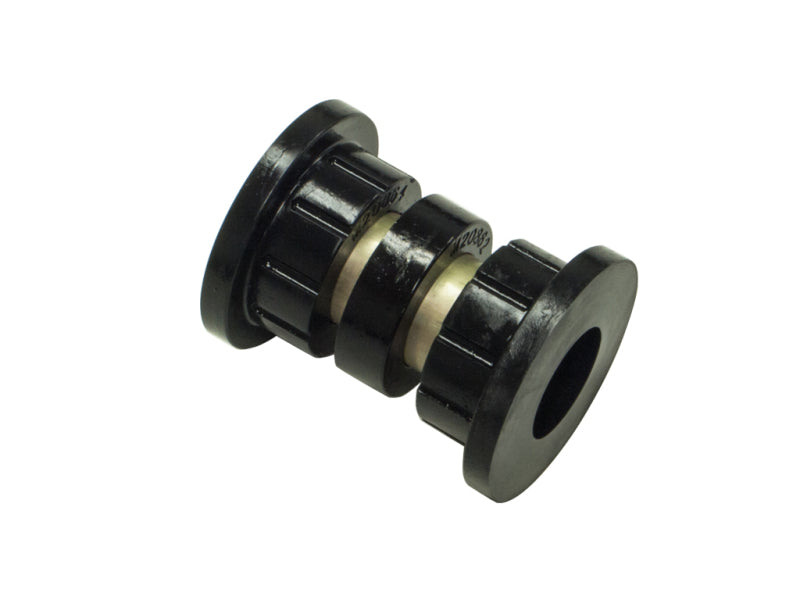

Serviceable Dual Stage Bushings
1026 DOM Steel Construction
Built-In Caster Correction
ICON Delta Joint
100% Rebuildable
100% Revalveable
CNC Bent Tubing

Associated Comments

Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5.5” Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.5” Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.5” Backspace / 12mm Offset
Factory Wheels & Tires Fitment: Yes

Product Description - Extended

2011-2019 GM HD 0-2" LIFT 2.5 REMOTE RESERVOIR CDCV SHOCK SYSTEM WITH UCA

Product Description - Short

ICON 11-19 GM HD 0-2in 2.5 CDCV Shock System w/Upper Control Arm
GM HD UCA/SHOCK KIT

Product Description - Long

11-19 GM HD 0-2" 2.5 CDCV SHOCK SYSTEM W/ UCA

Product Description - Invoice

11-19 GM HD 0-2" 2.5 CDCV SHOCKS W/ UCA

AAIA Part Type Description

Suspension Control Arm Kit
