ICON 12-15 Toyota Hilux 0-3in Stage 1 Suspension System

In stock
Regular price $3,335.00
Product INFO
  • Vendor ICON
  • SKU T14.750097G
  • Barcode K53141
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K53141


Market Description

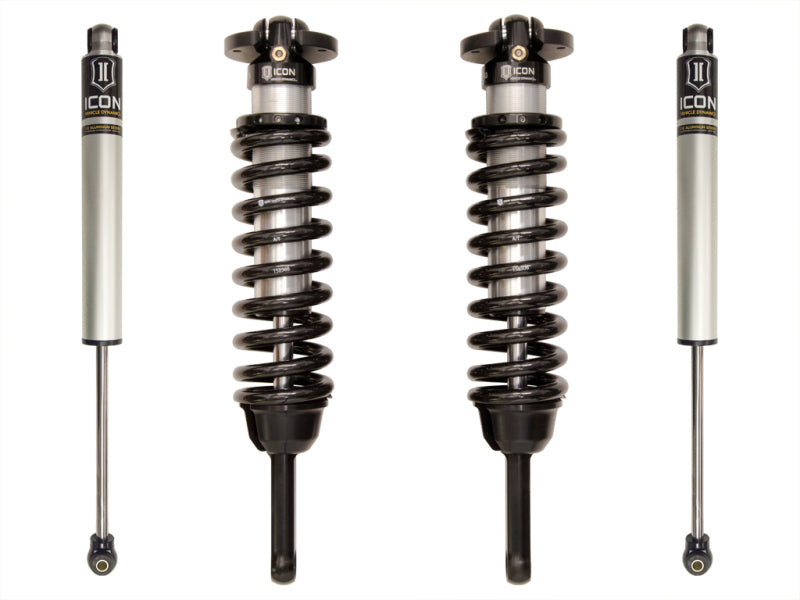

ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 1 system provides a baseline level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” coilover shocks feature a internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3” allowing you to level the Hilux front to back, and install a larger tire when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all-around feel on any terrain. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.

Associated Comments

  • APPLICATION NOTE #82: Rear Springs Can Be Added For Additional Rear Lift Height Up To 2’” To Match The Front 3” Lift Height Adjustment
  • Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
  • OEM Wheels & Tires Fitment: Yes
  • Ships in multiple boxes

Features and Benefits

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Improved shock durability for the varying terrains and many uses this vehicle faces
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • 6061 Aircraft grade aluminum CNC machined components
  • Adjustable coilovers from 0-3" of lift height
  • 2.0 aluminum body rear shock with 5/8" shaft

Product Description - Extended

2012-2015 TOYOTA HILUX 0-3" LIFT STAGE 1 SUSPENSION SYSTEM

Product Description - Short

  • ICON 12-15 Toyota Hilux 0-3in Stage 1 Suspension System
  • SUSPENSION SYSTEM

Product Description - Long

12-15 HILUX 0-3" STAGE 1 SUSPENSION SYSTEM

Product Description - Invoice

12-15 HILUX STAGE 1 SUSP SYSTEM

AAIA Part Type Description

Suspension Lift Kit
