ICON 14-18 Ram 2500 4WD 4.5in Stage 4 Suspension System

In stock
Regular price $10,019.00
Product INFO
  • Vendor ICON
  • SKU T14.749777G
  • Barcode K214524P
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K214524P


Market Description

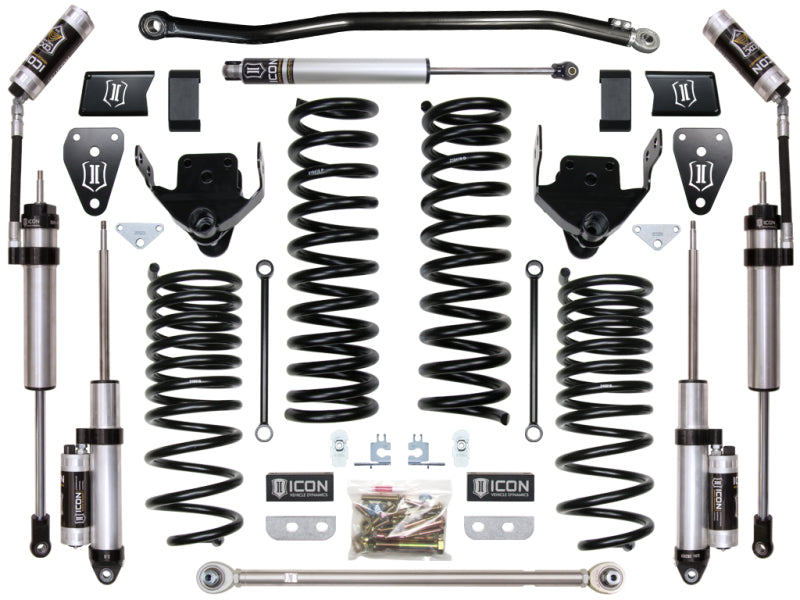

  • ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 4 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 4 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.
  • This system includes multi-rate rear coil springs for a more compliant ride. The lighter initial rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary rate allows the truck to maintain exceptional ride quality over larger obstacles, while at the same time retaining factory payload capacity (at a reduced ride height). These performance systems were specifically developed for the 3/4 ton truck enthusiast who enjoys aggressive off-road adventures and does not tow or haul heavy loads.

Associated Comments

  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING
  • APPLICATION NOTE #103: VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFTS REQUIRE CARRIER SHIM KIT 214211
  • APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
  • APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
  • APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
  • OEM Wheels & Tires Fitment: Yes
  • Ships in Multiple Boxes

Features and Benefits

  • Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
  • ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
  • Increased wheel travel and ride quality over stock with no loss in towing capacity
  • Level stance from front to rear of vehicle
  • Decreased body roll

Product Description - Extended

2014-2018 DODGE RAM 2500 4WD 4.5" LIFT STAGE 4 SUSPENSION SYSTEM (PERFORMANCE)

Product Description - Long

14-18 DODGE RAM 2500 4WD 4.5" STAGE 4 SUSPENSION SYSTEM (PERFORMANCE)

Product Description - Short

  • ICON 14-18 Ram 2500 4WD 4.5in Stage 4 Suspension System
  • 4.5" SUSP SYSTEM

Product Description - Invoice

14-18 RAM 2500 4WD 4.5 STAGE 4 SYS (PER)

AAIA Part Type Description

Suspension Lift Kit
