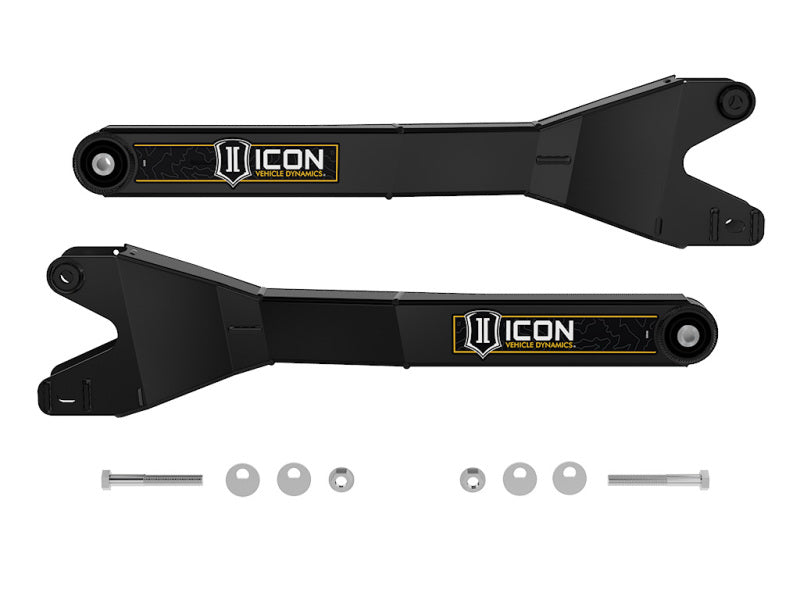

ICON 2005+ Ford Super Duty Radius Arm System

In stock
Regular price $2,979.00
Product INFO
  • Vendor ICON
  • SKU T14.478153
  • Barcode 64041
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : 64041


Market Description

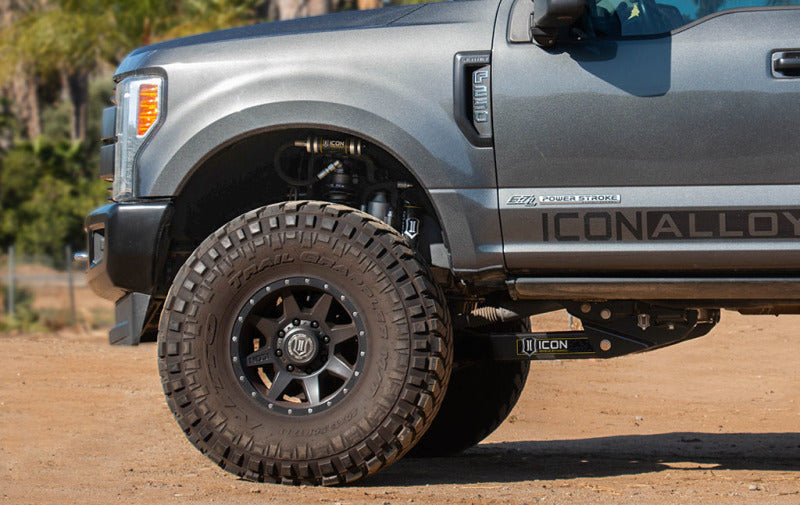

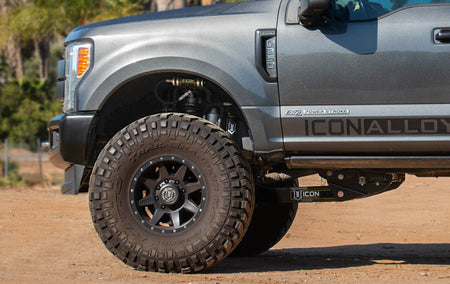

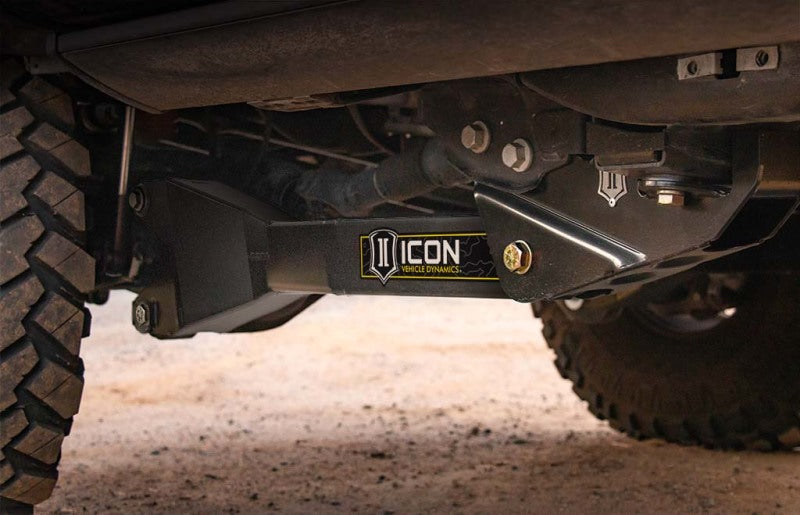

  • The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4” to 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
  • The ICON Vehicle Dynamics Ford F-250 & F-350 Super Duty Radius Arm System is designed with adjustable caster cams for use with 2.5-3” lifts with the radius arm installed in the factory pivot, eliminating the need for caster bushings. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4.5” and 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Product Description - Extended

  • The ICON Vehicle Dynamics Ford Super Duty 4WD Radius Arm System is designed with adjustable caster cams and their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock.
  • 2005-UP FORD F-250/F-350 SUPER DUTY RADIUS ARM SYSTEM

Associated Comments

  • TECH NOTE: Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # 64040, 64045, or, 64055)
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
  • TECH NOTE: Compatible with 0-3" front lift height without need for caster bushings
  • Recommended Aftermarket Tires: Up to a 37" x 12.50"
  • OEM Wheels & Tires Fitment: Yes

Features and Benefits

  • Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
  • Replaceable sealed pivot bushing provides maintenance free operation
  • Built in caster adjustment for optimized return to center
  • CNC machined and laser cut steel components
  • Semi-gloss black powder coat finish
  • Fully boxed design

Product Description - Short

  • ICON 2005+ Ford Super Duty Radius Arm System
  • RADIUS ARM KIT

Product Description - Long

  • 05-UP FSD RADIUS ARM SYSTEM
  • 05-22 FSD RADIUS ARM SYSTEM

Product Description - Invoice

  • FSD RADIUS ARM SYSTEM
  • 64041
