ICON

ICON 2005+ Toyota Tacoma RXT Stage 1 System

Name: ICON 2005+ Toyota Tacoma RXT Stage 1 System
Brand: ICON
SKU: T14.749948G
Price: 5828.00 NZD
Availability: OutOfStock

In stock

No reviews

$5,828.00

Product INFO

Vendor ICON
SKU T14.749948G
Barcode K53161

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K53161

Market Description

Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-UP Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.
Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-2023 Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.
The 2005-2023 Toyota Tacoma is an extremely reliable truck that has served as a versatile platform for drivers seeking the ultimate off-road adventure. From the brutal deserts of the Southwest, to the slickrock of Moab, to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly for this popular Toyota. ICON Vehicle Dynamics’ engineers have pushed this vehicle to extremes in order to develop the most sophisticated suspension components on the market. Unable to leave “well-enough” alone, ICON is once again aiming to raise the bar in Tacoma performance with the introduction of the RXT Rear Suspension System.

Product Description - Extended

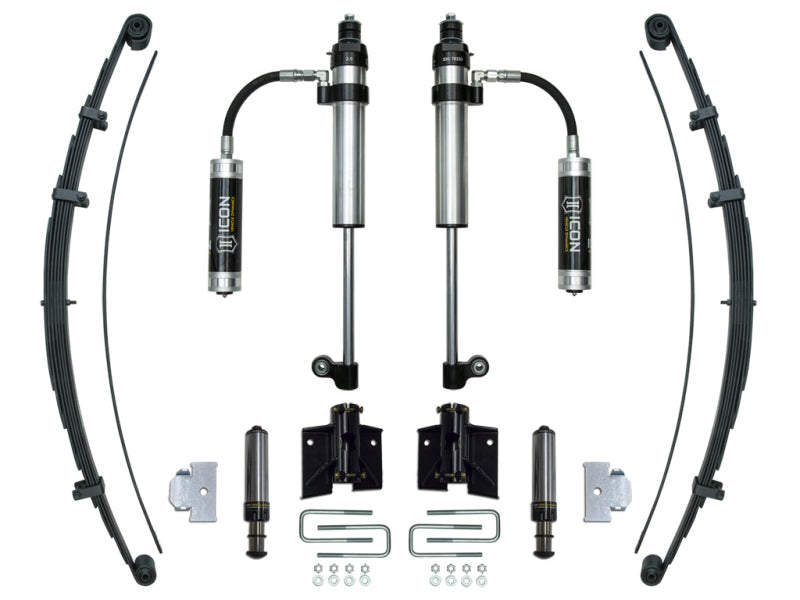

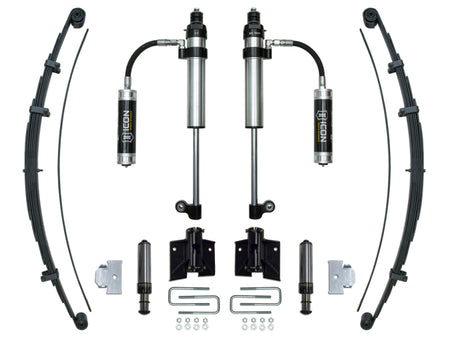

The RXT Suspension System includes 2.5 Aluminum Series rear shocks and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit for a 20% increase in wheel travel and the ability to adjust the leaf spring rate.
2005-UP TACOMA RXT STAGE 1 UPGRADE SYSTEM

Associated Comments

APPLICATION NOTE #87: Installation of complete ICON system required to attain advertised wheel travel. Use of any other manufacturers components will not provide advertised wheel travel and could cause unknown damage.
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have 1.375-2.125" of rear lift over stock, depending on rear spring configuration and rear weight
TECH NOTE: Most Tacoma submodels withh have rear lift height range of 1.875-2.625", depending on rear spring configuration and rear weight
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes

Features and Benefits

ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel

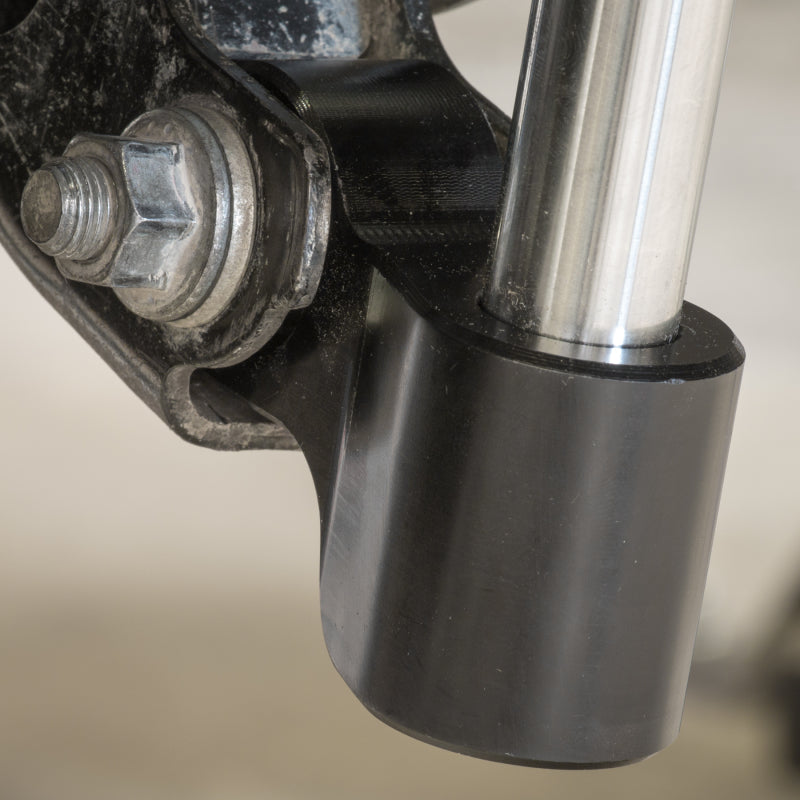

ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install
ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
ICON RXT Rear Shock: Corrosion resistant anodized aluminum shock bodies with 7/8" shafts
ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼” CNC machined nitro steel shaft
ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
ICON RXT Rear Shock: Simple and straightforward installation
ICON Hydraulic Rear Bump Stop Kit: Fully serviceable

Product Description - Short

ICON 2005+ Toyota Tacoma RXT Stage 1 System
05+ TACOMA RXT STG 1
SUSPENSION SYSTEM

Product Description - Invoice

05-UP TACOMA RXT STAGE 1 UPGRADE SYSTEM
K53161

Product Description - Long

05-23 TACOMA RXT STAGE 1 SYSTEM

AAIA Part Type Description

Suspension Lift Kit
