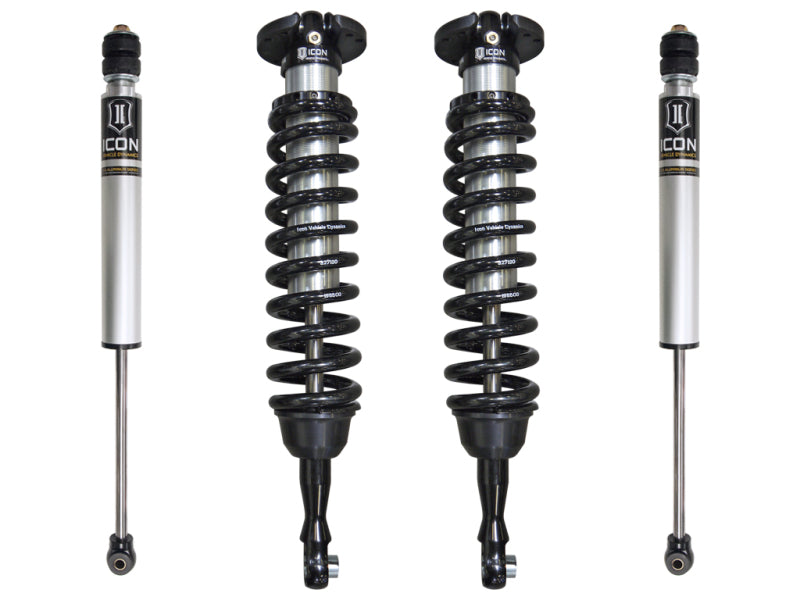

ICON 2007+ Toyota Tundra 1-3in Stage 1 Suspension System

In stock
Regular price $3,425.00
Product INFO
  • Vendor ICON
  • SKU T14.750099G
  • Barcode K53021
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K53021


Market Description

ICON Vehicle Dynamics Toyota Tundra Stage 1 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Associated Comments

  • APPLICATION NOTE #24: Factory UCA's Will Not Align Properly Past 2.5” Of Lift. Above 2.5” Of Lift An Aftermarket UCA Is Recommended.
  • APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
  • APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
  • OEM Wheels & Tires Fitment: Yes

Features and Benefits

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.0 VS Aluminum Series with 5/8" polished chrome shaft
  • 6061 Aircraft grade aluminum CNC machined components
  • Adjustable coilovers from 1-3" of lift height

Product Description - Extended

2007-2021 TOYOTA TUNDRA 1-3" LIFT STAGE 1 SUSPENSION SYSTEM

Product Description - Short

  • ICON 2007+ Toyota Tundra 1-3in Stage 1 Suspension System
  • SUSPENSION SYSTEM

Product Description - Long

07-21 TUNDRA 1-3" STAGE 1 SUSPENSION SYSTEM

Product Description - Invoice

07-21 TUNDRA STAGE 1 SUSPENSION SYS

AAIA Part Type Description

Suspension Lift Kit
