ICON 2017+ Ford F-250/F-350 7in Stage 4 Suspension System

Manufacturer Part # : K67114

Market Description

• The Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit, which further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured knowing that you have the best suspension solution on the market.
• The Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit, which further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured knowing that you have the best suspension solution on the market.

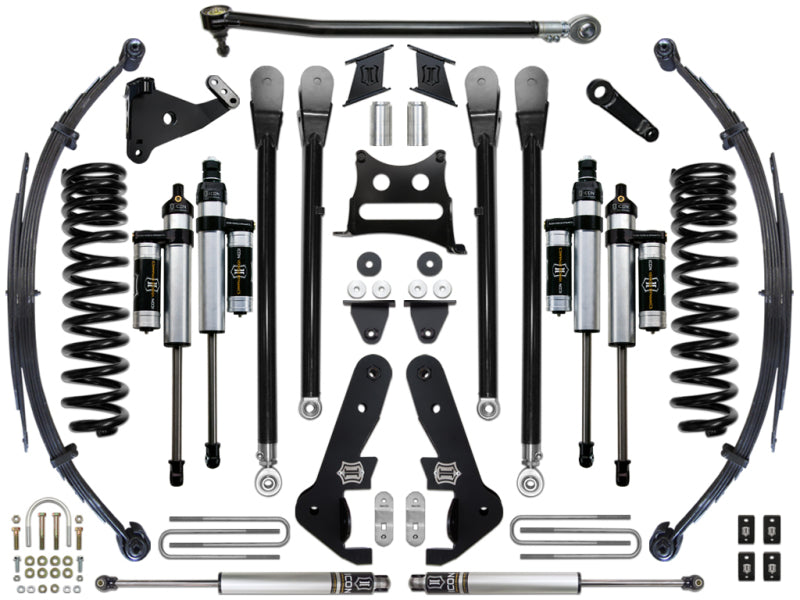

• This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. ICON's 7" Stage 4 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.

Associated Comments

• TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height of 6.75" over stock. May require taller rear blocks with springs to sit level.
• APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms.
• TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height of 7.75" over stock. May require taller rear blocks with springs to sit level.
• APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #57: FACTORY BLOCK MUST BE USED IN CONJUNCTION WITH ICON LEAF SPRINGS FOR TRUCK TO SIT LEVEL
• APPLICATION NOTE #118: OEM STABILIZER DOES NOT WORK WITH REQUIRED DRAG LINK FLIP ON THIS KIT
• APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• TECH NOTE: 2017-2019 Super Duty models will have front lift height of 7" over stock.
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• OEM Wheels & Tires Fitment: Yes
• Ships in multiple boxes

Features and Benefits

• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Progressive leaf springs improve ride quality without reducing towing capacity
• FK Rod End bearings provide extended longevity and minimal deflection
• Approximately 50% increased front wheel travel over stock
• Lifetime guarantee against coil spring breakage or sag
• Fits 2017-2022 F-250 / F-350 4WD applications
• Shocks are fully rebuildable and revalvable

Product Description - Extended

• 2017-2022 FORD F-250/F-350 7" LIFT STAGE 4 SUSPENSION SYSTEM
• 2017-UP FORD F-250/F-350 7" LIFT STAGE 4 SUSPENSION SYSTEM

Product Description - Short

• ICON 2017+ Ford F-250/F-350 7in Stage 4 Suspension System
• SUSPENSION SYSTEM

Product Description - Long

• 17-UP FORD F-250/F-350 7" STAGE 4 SUSPENSION SYSTEM
• 17-22 FORD F-250/F-350 7" STAGE 4 SUSPENSION SYSTEM

Product Description - Invoice

• 17+ FORD F-250/F-350 7" STAGE 4 SUSP SYS
• 17-22 FORD F-250/F-350 7" STG 4 SUSP SYS

AAIA Part Type Description

Suspension Lift Kit
