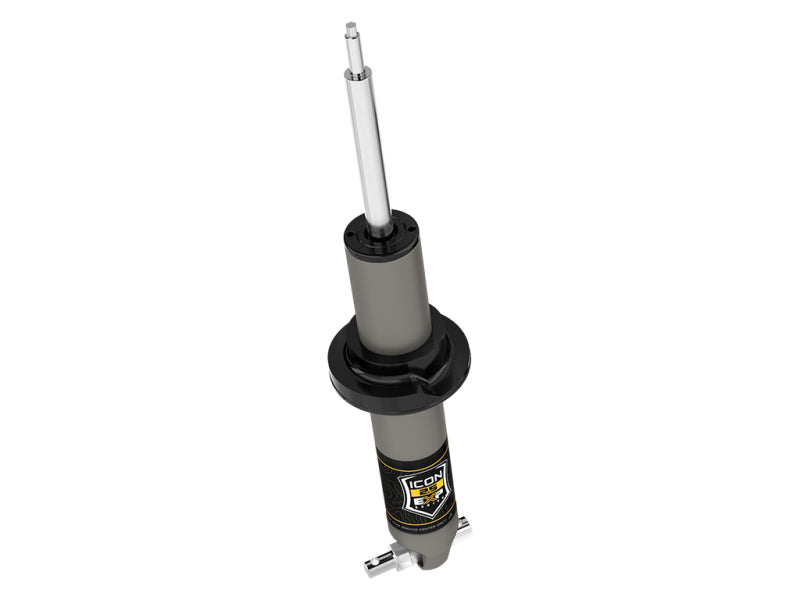

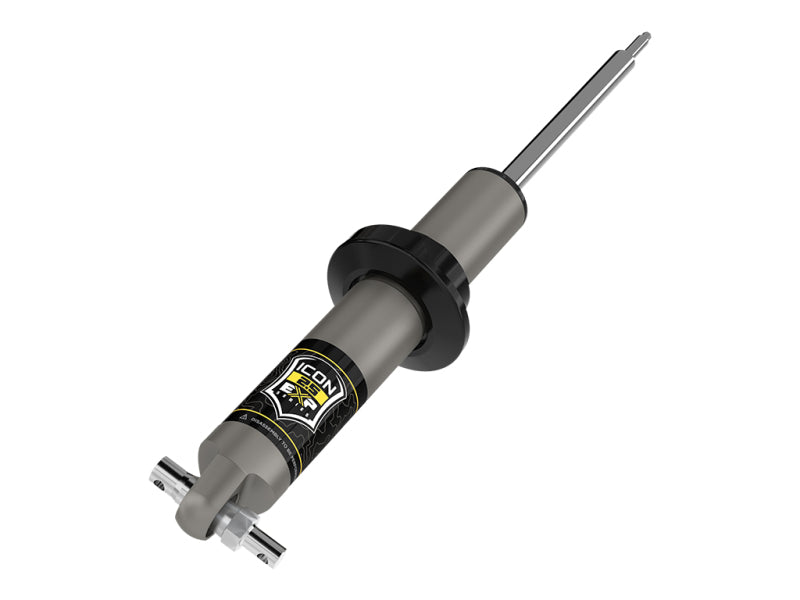

ICON 2021+ Ford Bronco Hoss 1.0 Front EXP Coilover 2.5in

Manufacturer Part # : 48601

Market Description

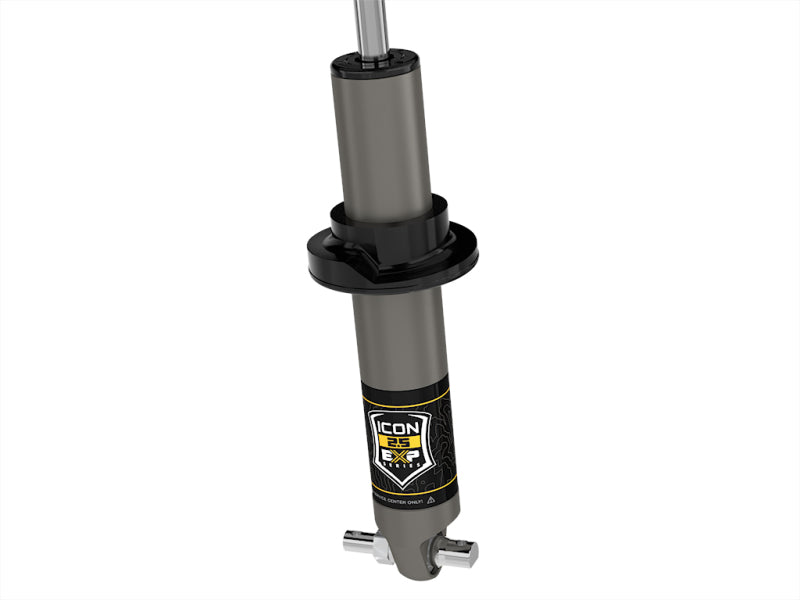

• EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
• EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco’s OE upper shock and spring mounts.
• The 2021-2023 Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
• The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 1.375" to 3” of lift over stock on Bronco’s equipped with the OE HOSS 1.0 suspension package.
• HOSS 1.0 is Ford's "base" suspension system for Broncos with the Base, Big Bend, Outer Banks and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 is most easily identified by the BLACK shock bodies of the OE shocks.

Associated Comments

• TECH NOTE: Due to increased wheel travel and lift height provided by these coilovers, ICON upper control arms with Delta Joint Pro, part numbers 48400DJ or 48500DJ, are recommended. Other aftermarket front upper control arms may not be compatible and it is the duty of the installer to verify fitment. Failure to cycle suspension and check for ball joint bind issues may lead to component failure and/or injury.
• Recommended Aftermarket Tires: 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require coilover bump stop spacers along with trimming and modifications)
• TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain ideal front end alignment.
• APPLICATION NOTE #138: Recommended crash bars part #42000 on Non-Sasquatch equipped vehicles when running 35" tires
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #139: When running 37" tires crash bar removal may be required but is not recommended
• APPLICATION NOTE #147: When running 37" tires use bump stop spacer kit part # 611082 in the front
• TECH NOTE: Only compatible with 2021-2023 Ford Bronco equipped with HOSS 1.0 Suspension Package
• TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
• TECH NOTE: Not compatible with Bronco Raptor
• OEM Wheels & Tires Fitment: Yes

Product Description - Extended

• Based on ICON’s 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package.
• 2021-UP FORD BRONCO HOSS 1.0 SUSPENSION PACKAGE 2.5 FRONT EXP COILOVER

Features and Benefits

• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Adjustable ride heights from 1.375-3” of front lift over stock with the use of snap ring
• Vehicle specific design for 2021-2023 Ford Bronco with HOSS 1.0 Suspension Package
• PTFE lined spherical bearing for extended longevity and minimal deflection
• CNC machined 6061 aluminum components with a black anodized finish
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• High strength alloy CNC machined lower bar pin
• Utilizes factory coil and coil hardware
• Fully rebuildable and re-tunable

Product Description - Short

• ICON 2021+ Ford Bronco Hoss 1.0 Front EXP Coilover 2.5in
• EXP COILOVER

Product Description - Long

• 21-UP BRONCO HOSS 1.0 PKG 2.5 FRONT EXP COILOVER
• 21-23 BRONCO HOSS 1.0 PKG 2.5 FRONT EXP COILOVER

Product Description - Invoice

• 21-UP BRONCO HOSS 1.0 FRONT EXP CO
• 48601

AAIA Part Type Description

Coilover
