ICON 95.5-04 Toyota Tacoma 0-3in Stage 3 Suspension System

In stock
Regular price $4,819.00
Product INFO
  • Vendor ICON
  • SKU T14.749954G
  • Barcode K53013
VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K53013


Market Description

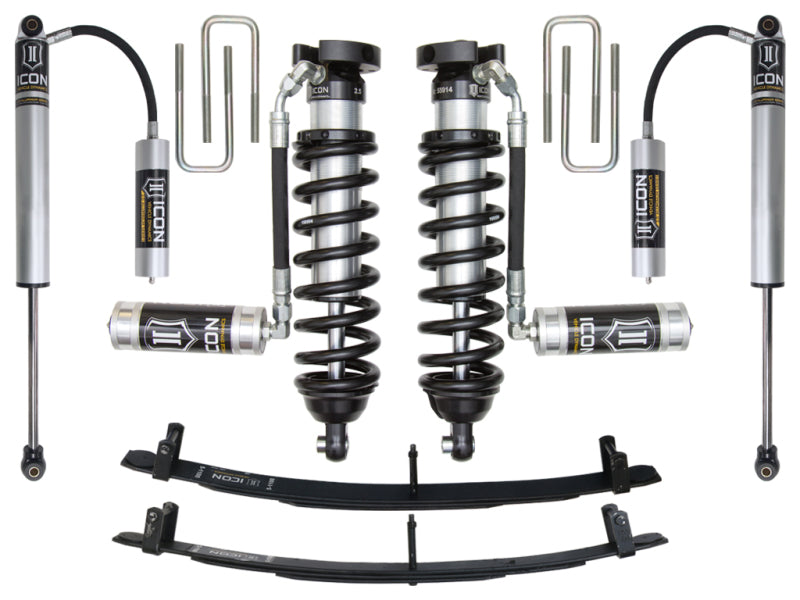

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring a remote reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Product Description - Extended

  • ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
  • 1995.5-2004 TACOMA 0-3" LIFT STAGE 3 SUSPENSION SYSTEM

Associated Comments

  • APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
  • APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
  • OEM Wheels & Tires Fitment: Yes
  • Ships in Multiple Boxes

Features and Benefits

  • 2.0 aluminum body rear remote reservoir shock with 5/8" polished chrome plated steel shaft
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Corrosion resistant CAD plated coilover shock body with 7/8" hardened chrome shaft
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • FK rod end bearings for extended longevity and minimal deflection
  • Adjustable remote reservoir coilovers from 0-3" of lift height
  • 6061 Aircraft grade aluminum CNC machined components

Product Description - Short

  • ICON 95.5-04 Toyota Tacoma 0-3in Stage 3 Suspension System
  • SUSPENSION SYSTEM
  • TACOMA STG 3 SYS

Product Description - Long

95.5-04 TACOMA 0-3" STAGE 3 SUSPENSION SYSTEM

Product Description - Invoice

  • 95.5-04 TACOMA 0-3" STAGE 3 SUSP SYSTEM
  • K53013

AAIA Part Type Description

Suspension Lift Kit
