ICON 05-22 Toyota Tacoma 0-2in Stage 3 Exp Suspension System Billet

Name: ICON 05-22 Toyota Tacoma 0-2in Stage 3 Exp Suspension System Billet
Brand: ICON
SKU: T14.793128G
Price: 4842.00 NZD
Availability: OutOfStock

In stock

No reviews

$4,842.00

Product INFO

Vendor ICON
SKU T14.793128G
Barcode K53222

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K53222

Market Description

Rounding out the Stage 3 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks with remote reservoirs specially tailored for the 2005-2023 Tacoma. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.
This Stage 3 system features the 2005-2023 Toyota Tacoma EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers providing 0-2” of suspension lift, custom-tuned performance and maximum travel all in an economical package.
The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2005-2022 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind.

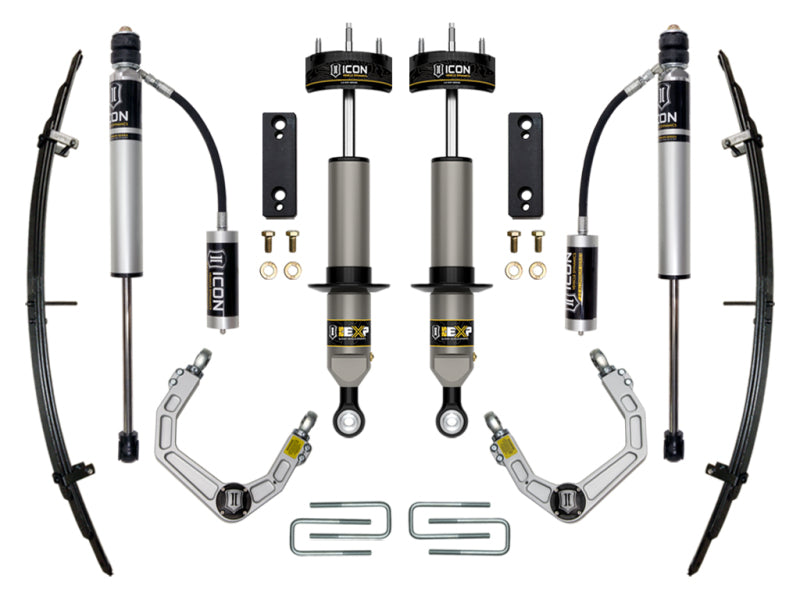

The ICON Vehicle Dynamics Stage 3 EXP suspension system for the 2005-2023 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33" tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
The rear leaf spring Add-a-Leaf kit improves ride quality by softening the rear spring rate compared to stock. This 3-leaf spring installs in place of the OE overload leaf and eliminates the aggressive ramp up in spring rate provided by the OE overload. This equates to improved ride quality and suspension performance, on and off-road, while also lifting the rear of the truck 1.5” over stock.
The included sway bar relocation brackets help minimize sway bar link bind through the suspension travel range and offer’s sway bar clearance from the EXP coilovers. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

Product Description - Extended

The ICON EXP suspension system for the Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift for a proper stance and fitment of up to 33" tires.

Features and Benefits

Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
Adjustable front ride heights from 0-2” of front lift over stock with the use of snap ring
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
UCAs feature the patented (U.S. Pat. 10731700) Delta Joint for extended longevity
Allows for full wheel travel without overstressing OE components
All ICON shock absorbers are fully rebuildable and re-tunable
Vehicle specific design for 2005-2023 Toyota Tacoma

Associated Comments

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Minor fender trimming may be required)
APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
OEM Wheels & Tires Fitment: Yes

Product Description - Short

ICON 05-22 Toyota Tacoma 0-2in Stage 3 Exp Suspension System Billet
SUSPENSION SYSTEM

Product Description - Long

05-23 TACOMA 0-2" STAGE 3 EXP SUSPENSION SYSTEM BILLET

AAIA Part Type Description

Suspension Lift Kit

Product Description - Invoice

K53222
