ICON 2017+ Ford F250/F350 7in Stage 4 Suspension System w/ Radius Arm

Name: ICON 2017+ Ford F250/F350 7in Stage 4 Suspension System w/ Radius Arm
Brand: ICON
SKU: T14.794177G
Price: 12612.00 NZD
Availability: OutOfStock

In stock

No reviews

$12,612.00

Product INFO

Vendor ICON
SKU T14.794177G
Barcode K67114R

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K67114R

Market Description

This ICON Vehicle Dynamics 7” suspension system is a great way to lift your 4WD 2017-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. This suspension system is perfect for on-road and off-road use including towing, job site duty, and hardcore off-road adventure. ICON's 7" Stage 4 System is comprised of dual rate coil springs, progressive leaf springs, 4-Link kit, adjustable track bar, dual opposing steering stabilizer kit, ICON 2.5 Aluminum Series piggyback reservoir front and rear shocks, plus all of the necessary hardware for installation.

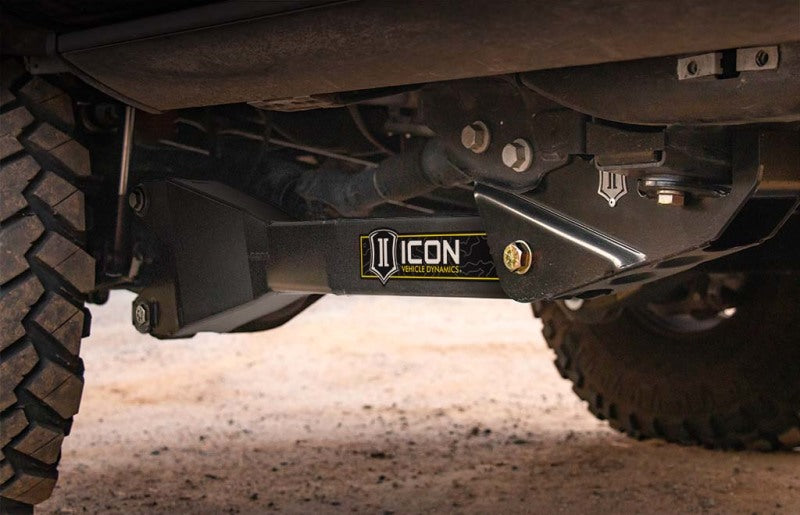

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Associated Comments

TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height of 6.75" over stock. May require taller rear blocks with springs to sit level.
TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height of 7.75" over stock. May require taller rear blocks with springs to sit level.
APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #57: FACTORY BLOCK MUST BE USED IN CONJUNCTION WITH ICON LEAF SPRINGS FOR TRUCK TO SIT LEVEL.
APPLICATION NOTE #118: OEM STABILIZER DOES NOT WORK WITH REQUIRED DRAG LINK FLIP ON THIS KIT
APPLICATION NOTE #8: THIS SYSTEM MAY REQUIRE A CARRIER BEARING DROP BRACKET KIT (33700)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
TECH NOTE: 2017-2019 Super Duty models will have front lift height of 7" over stock.
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes

Features and Benefits

Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
ICON shocks feature vehicle specific tune for superior performance and ride quality
Progressive leaf springs improve ride quality without reducing towing capacity
FK Rod End bearings provide extended longevity and minimal deflection
Approximately 50% increased front wheel travel over stock
Lifetime guarantee against coil spring breakage or sag
Fits 2017-2022 F-250 / F-350 4WD applications
Shocks are fully rebuildable and revalvable

Product Description - Extended

2017-2022 FORD F-250/F-350 SUPER DUTY 7" LIFT STAGE 4 SUSPENSION SYSTEM WITH RADIUS ARM
2017-UP FORD F-250/F-350 SUPER DUTY 7" LIFT STAGE 4 SUSPENSION SYSTEM WITH RADIUS ARM

Product Description - Short

ICON 2017+ Ford F250/F350 7in Stage 4 Suspension System w/ Radius Arm
SUSPENSION SYSTEM

Product Description - Long

17-UP FORD F250/F350 7" STAGE 4 SUSPENSION SYSTEM W RADIUS ARM
17-22 FORD F250/F350 7" STAGE 4 SUSPENSION SYSTEM W RADIUS ARM

Product Description - Invoice

17-UP FSD 7" STAGE 4 SUSP SYS RADIUS ARM
17-22 FSD 7" STAGE 4 SUSP SYS RADIUS ARM

AAIA Part Type Description

Suspension Lift Kit
