ICON 2021+ Ford F-150 2WD 0-3in Stage 1 Suspension System

Name: ICON 2021+ Ford F-150 2WD 0-3in Stage 1 Suspension System
Brand: ICON
SKU: T14.786540G
Price: 3221.00 NZD
Availability: OutOfStock

In stock

No reviews

$3,221.00

Product INFO

Vendor ICON
SKU T14.786540G
Barcode K93121

Do you have questions about this product?

Ask an expert!

VETERAN & FIRST RESPONDER DISCOUNT

Veterans, Active-Duty Military, First Responders Discount

FASTER SHIPPING

99% of orders leave the warehouse within 1-3 days of payment

EASY RETURN POLICY

Returns accepted within 30 days of purchase

Manufacturer Part # : K93121

Market Description

ICON Vehicle Dynamics 2021-2023 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON Vehicle Dynamics 2021-UP Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-UP F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Product Description - Extended

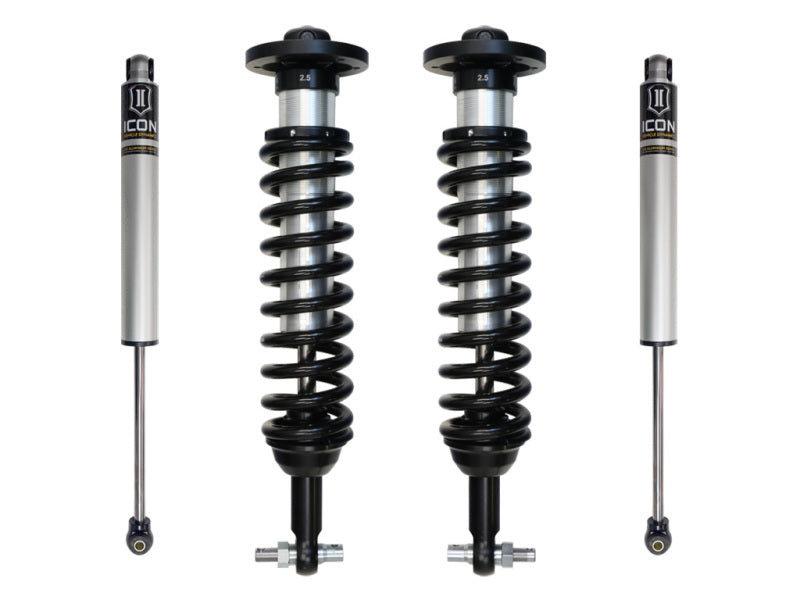

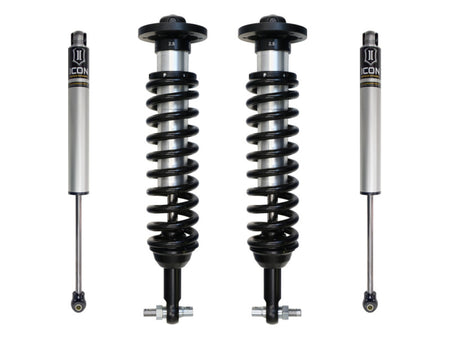

Stage 1 includes 2.5” coilovers with internal reservoirs with height adjustability from 0-3” of lift. ICON 2.0 Aluminum Series monotube rear shocks balance the performance of the truck from front to rear.
2021-UP FORD F150 2WD 0-3" LIFT STAGE 1 SUSPENSION SYSTEM

Associated Comments

APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
TECH NOTE: Only compatible with rear wheel drive (2WD/RWD) models
TECH NOTE: Not compatible with models equipped with BlueCruise
OEM Wheels & Tires Fitment: Yes
Ships in multiple boxes

Features and Benefits

Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Increased wheel travel and ride quality over stock with no change in towing capacity
100% bolt-on system - no drilling, cutting, or welding necessary for install
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.0 Aluminum Series rear shocks with 5/8" induction hardened shafts
2.0 Aluminum Series rear shocks with 5/8" induction hardened shafts
FK Rod End bearings for extended longevity and minimal deflection
Adjustable coilovers provide 0-3" of lift height over stock
6061 aircraft grade aluminum CNC machined components
High strength alloy CNC machined lower bar pins

Product Description - Short

ICON 2021+ Ford F-150 2WD 0-3in Stage 1 Suspension System
SUSPENSION SYSTEM

Product Description - Long

2021-UP FORD F150 2WD 0-3" STAGE 1 SUSPENSION SYSTEM
21-23 FORD F150 2WD 0-3" STAGE 1 SUSPENSION SYSTEM

Product Description - Invoice

21-UP FORD F150 2WD 0-3" STG 1 SUSP SYS
K93121

AAIA Part Type Description

Suspension Lift Kit
