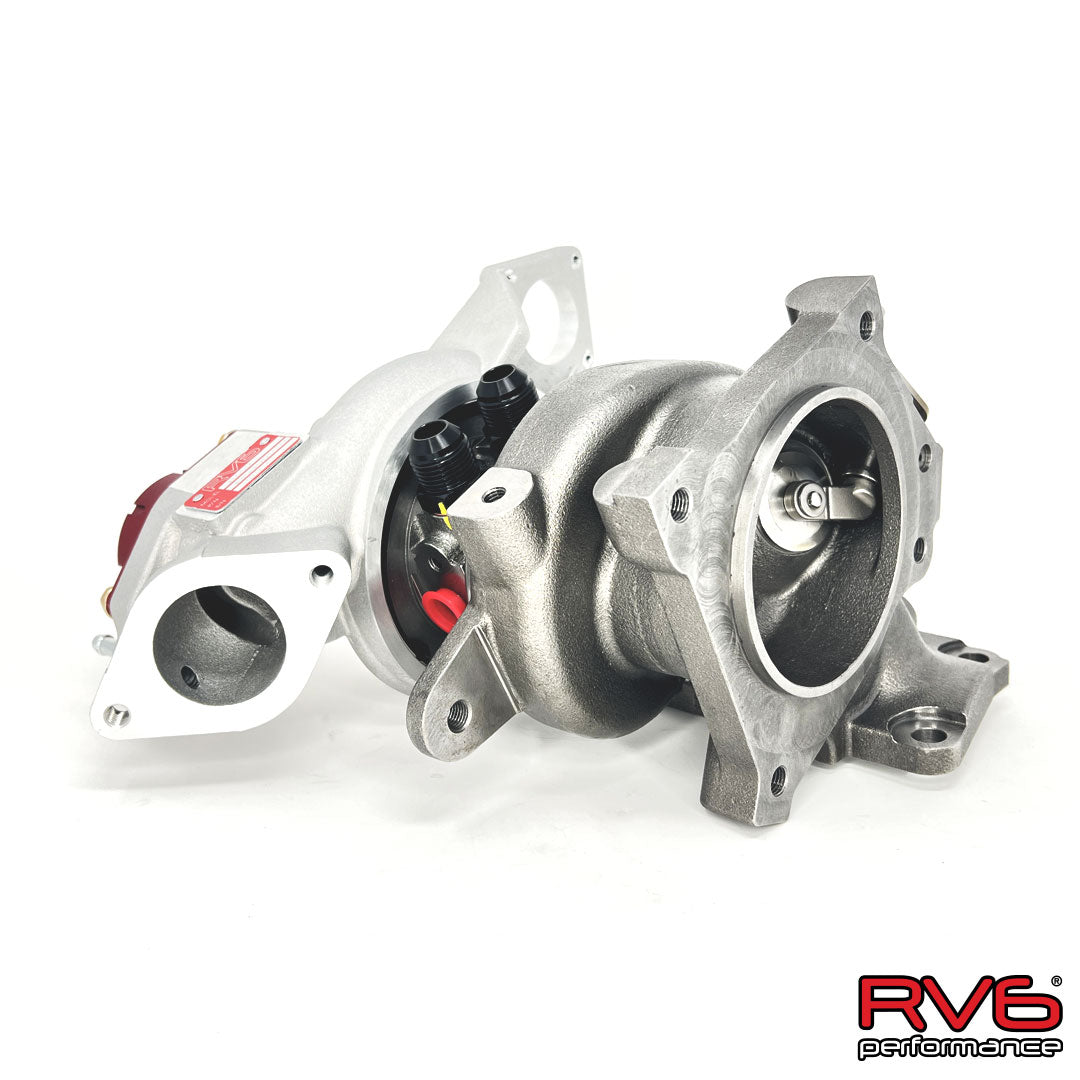

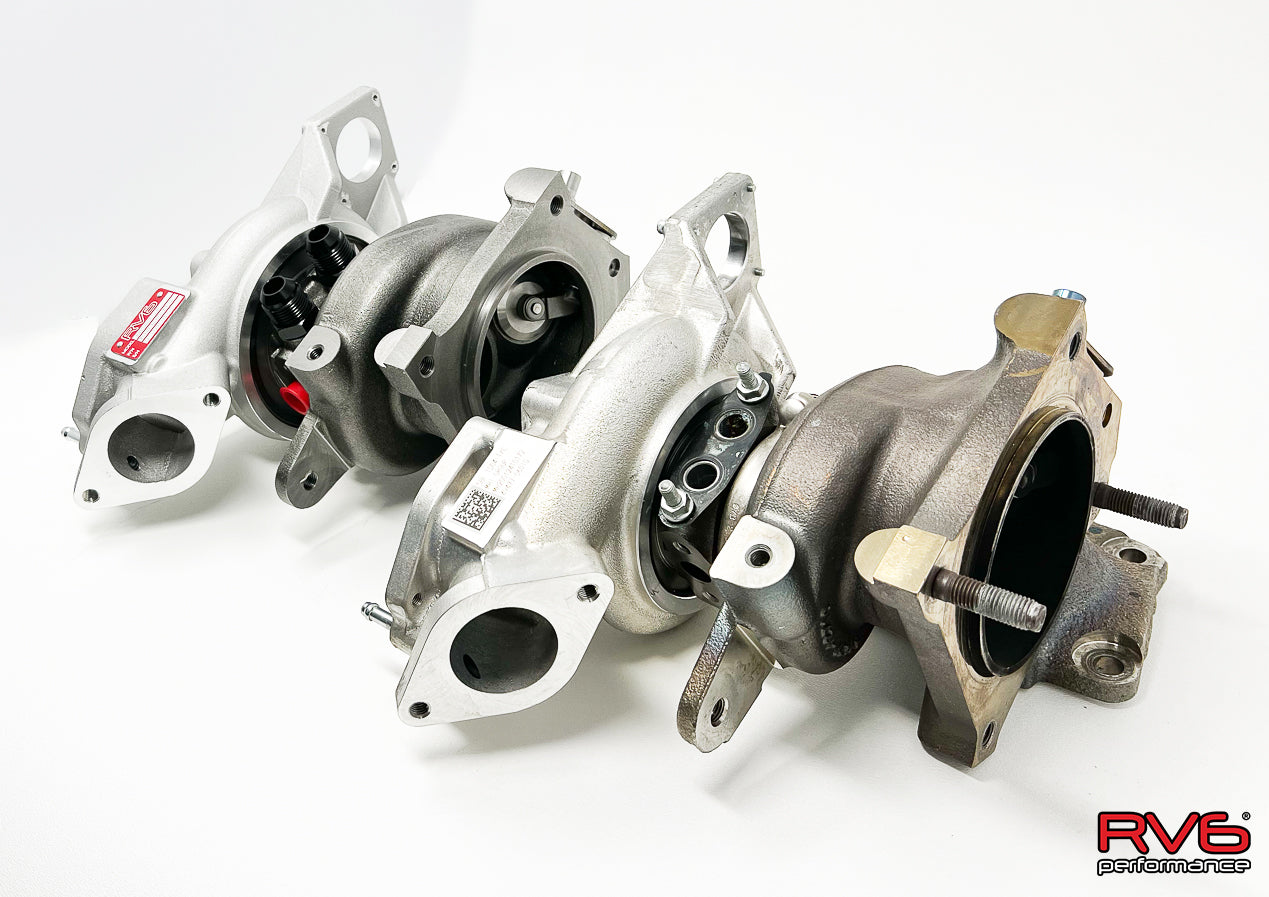

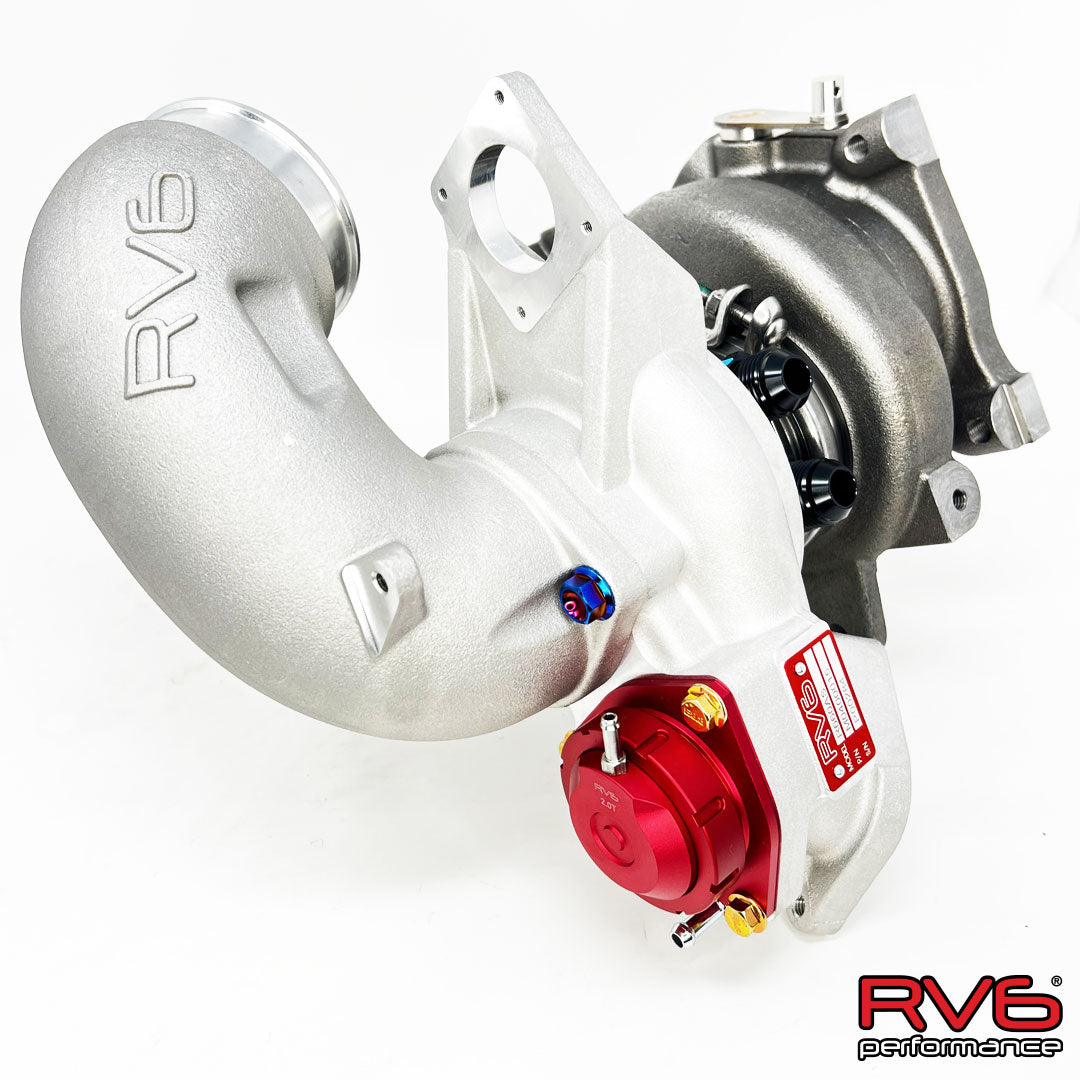

The RV6 R660AS is the result of almost 2 years of development and 3 revisions — a robust, reliable turbocharger for the FL5 Civic Type R and DE5 Integra Type S 2.0T. RV6's goal was reliability beyond the limits of the stock TD04 format, which struggles to make more than 400HP dependably. To get there, RV6 over-built and upsized everything, building the R660 around a TD05 bearing housing roughly twice the size of the TD04. That allows a full-size 8mm ceramic ball bearing for quick spool and increased thrust loads, with oversized coolant passages and -10AN coolant lines for ample cooling.
The larger TD05 bearing housing enabled a 0.81 A/R turbine housing that significantly reduces back pressure between the turbo and engine, solving many issues with unstable boost and overheating. Compressor and turbine wheels use FEA-optimized blade designs: a lightweight point-milled forged billet compressor wheel and a MAR-M super-alloy turbine wheel and shaft chosen to tolerate higher temperatures and loads. The carbon fiber inlet pipe requires an RV6 inlet pipe and elbow and a race/big bore MAF housing.
Specifications
- Compressor: 54mm inducer / 67mm exducer
- Turbine: 54mm inducer / 49mm exducer
- Turbine housing A/R: 0.81
Features

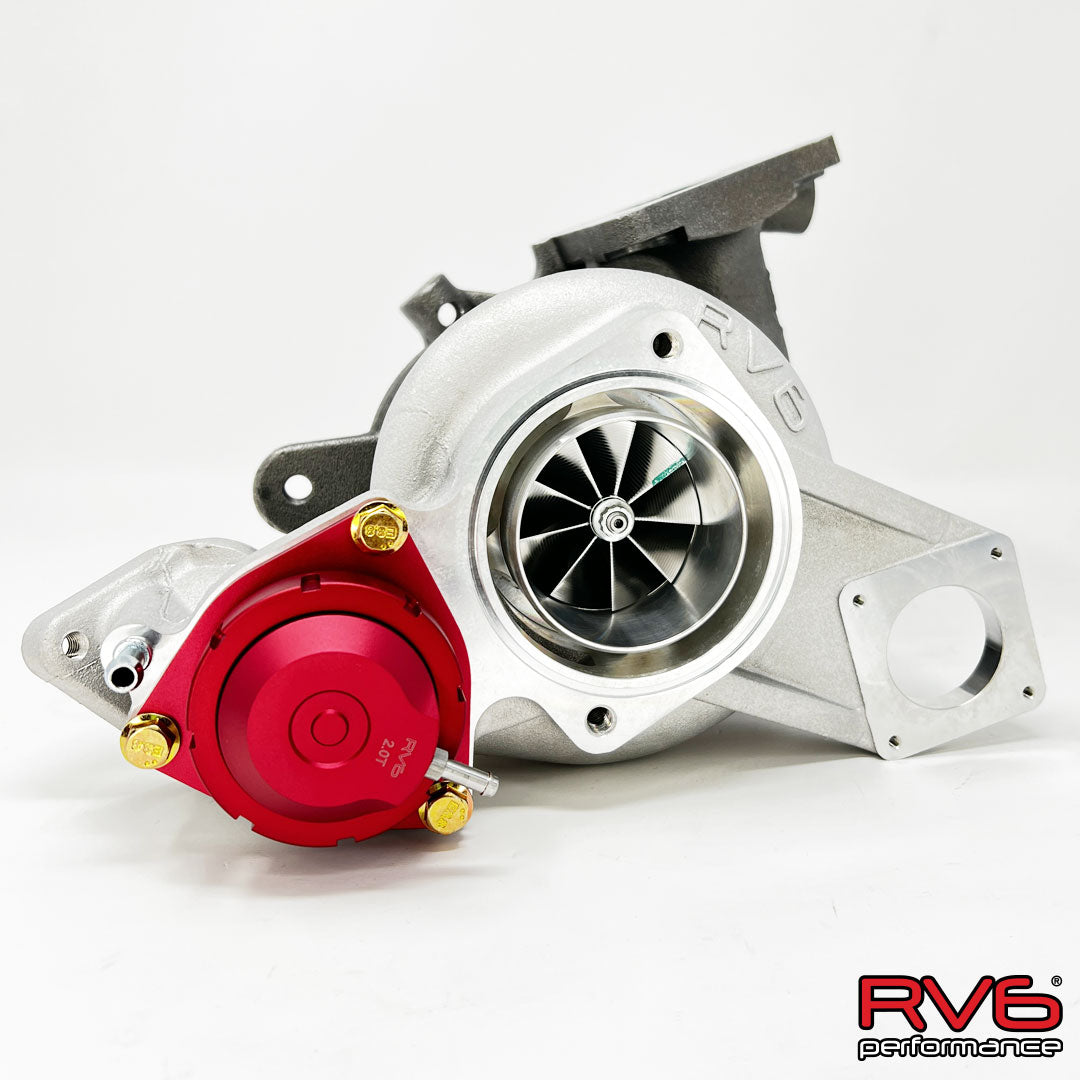

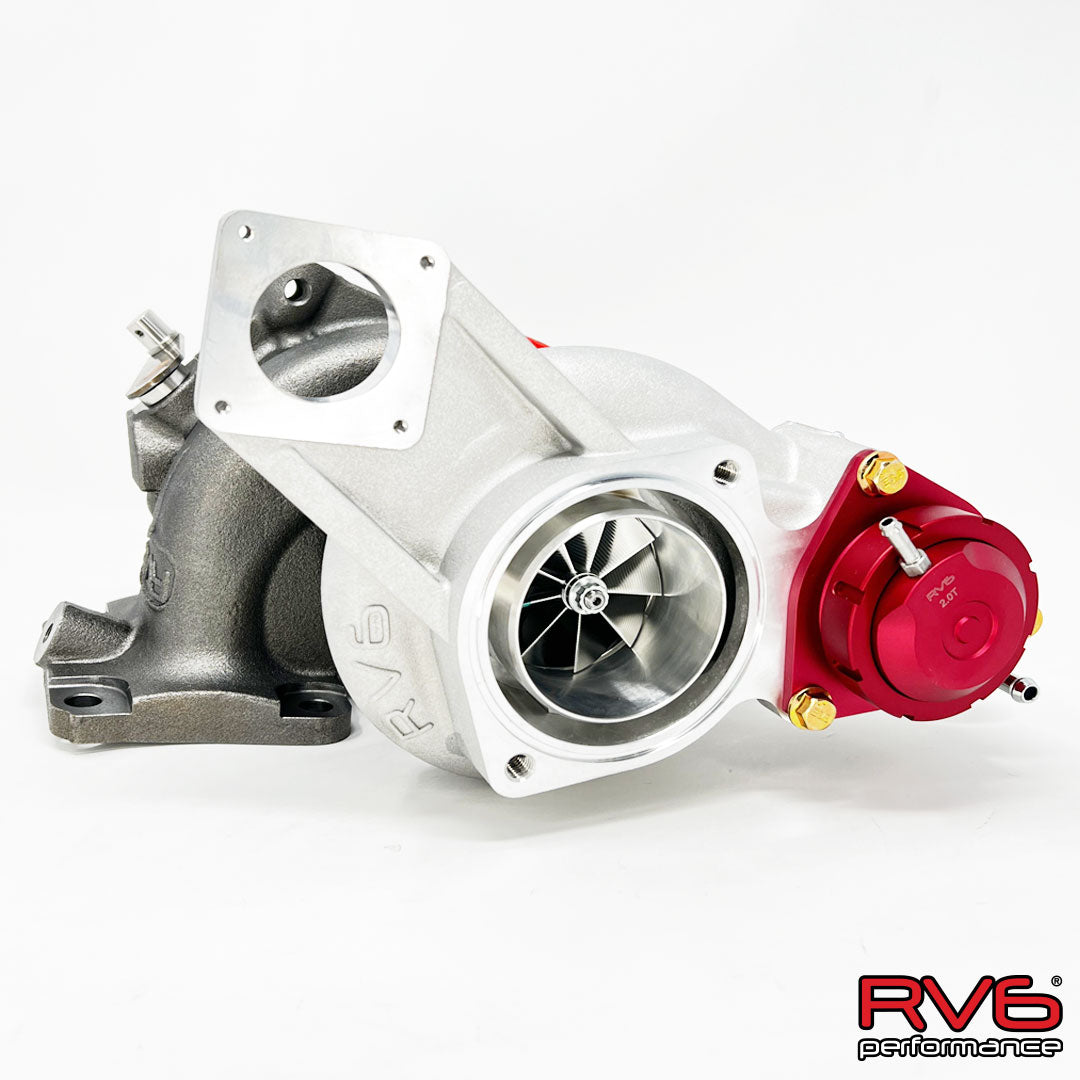

- AntiSurge/T51R Mod compressor cover, 76mm inlet
- 82mm inlet pipe
- Direct drop-in design
- Oversized 8mm dual ceramic ball bearing
- Oversized TD05 bearing housing and coolant passages
- MAR-M super-alloy turbine wheel

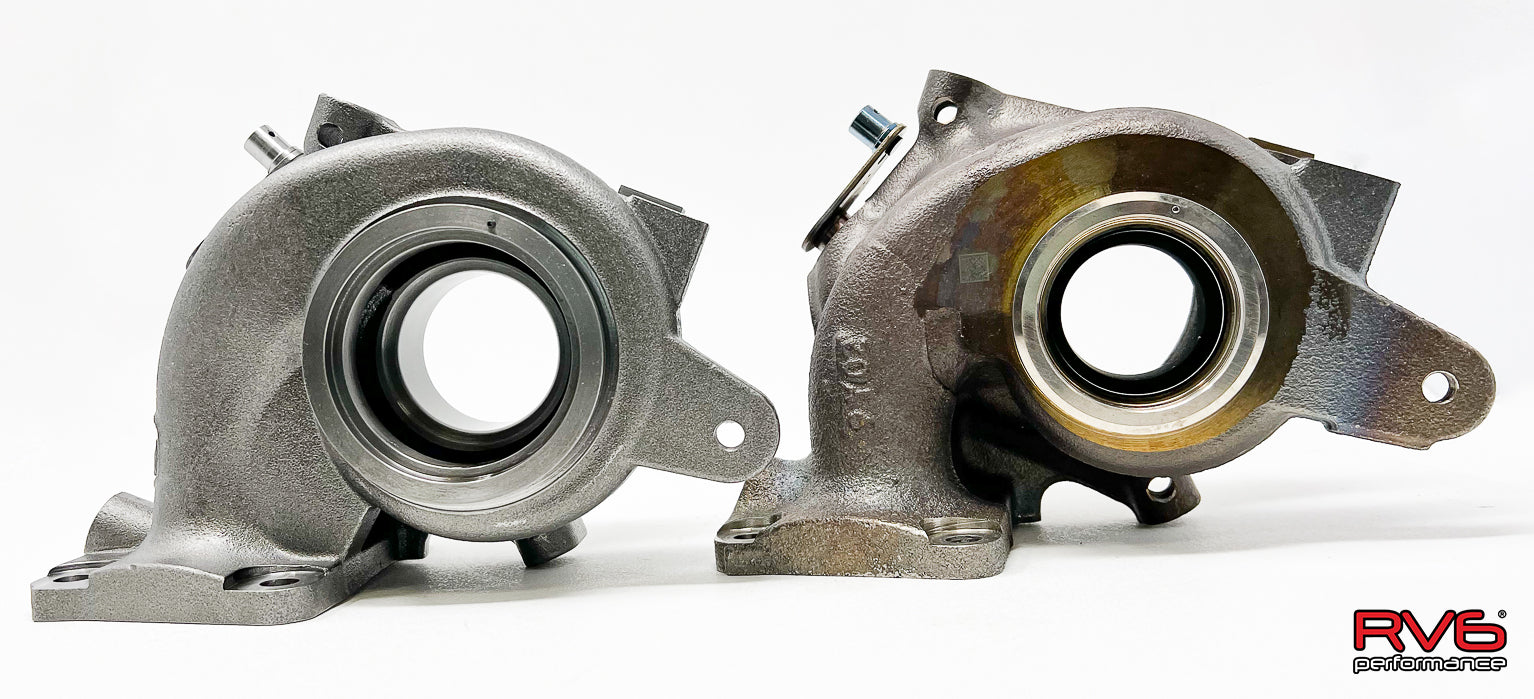

- High-temperature high-silicon turbine housing

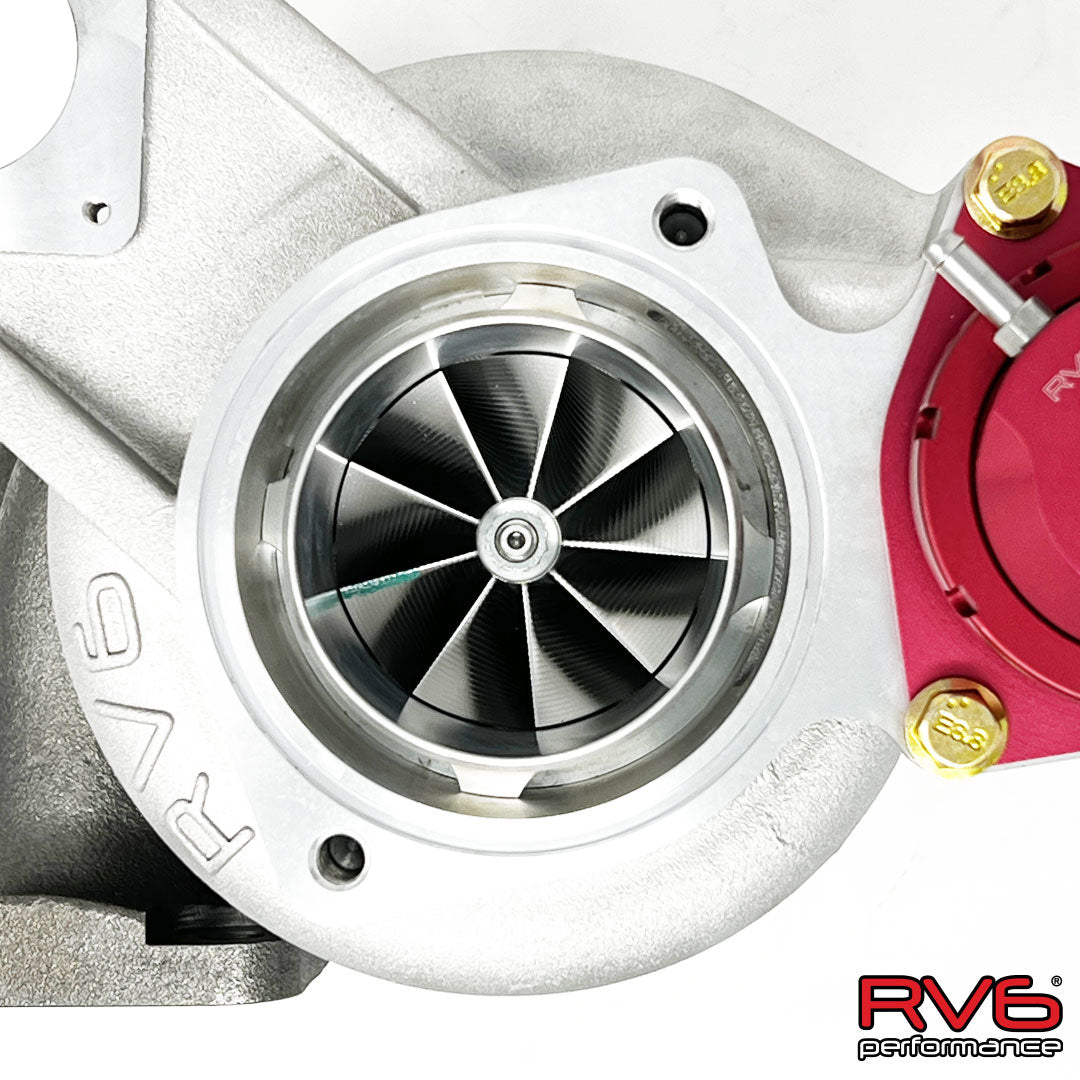

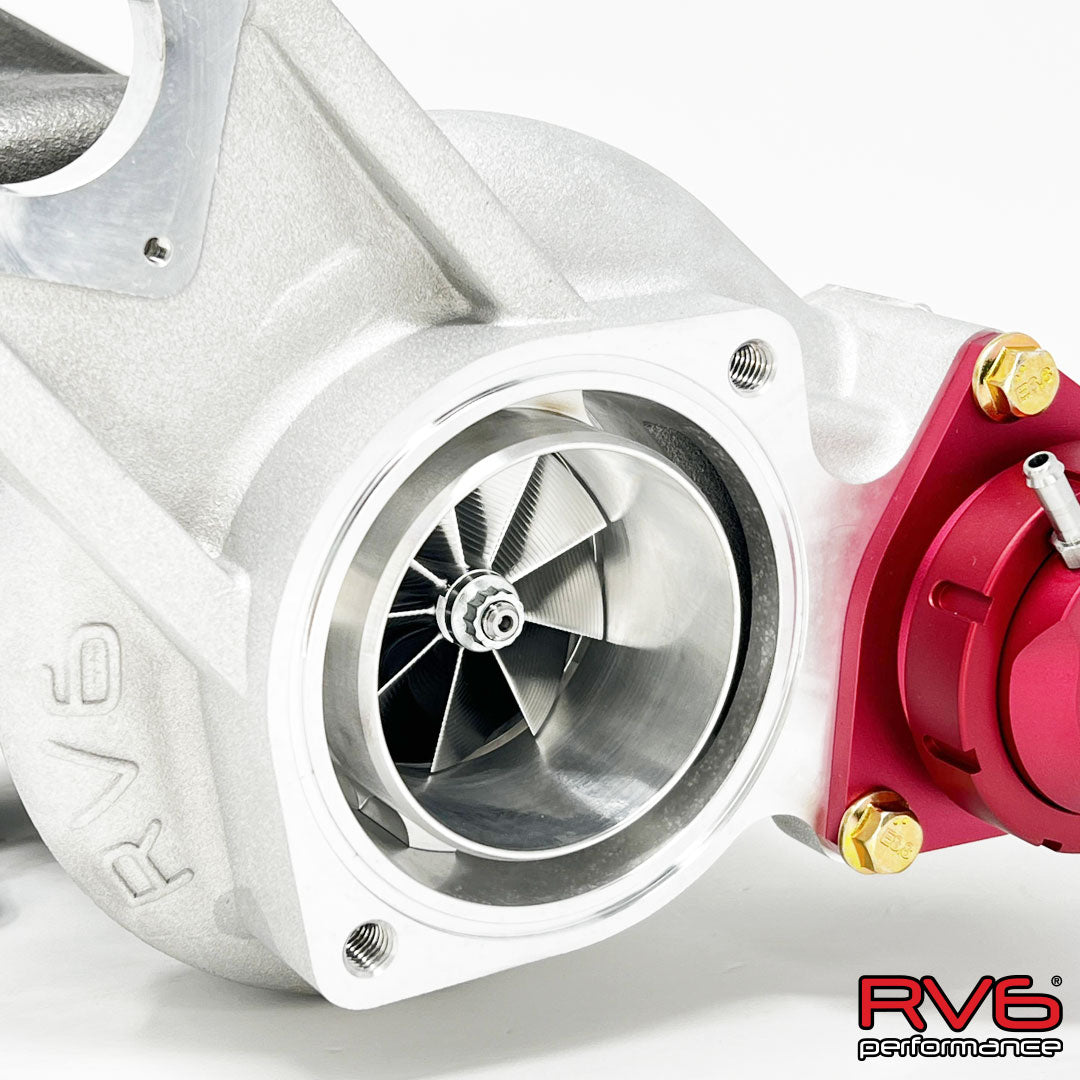

- Lightweight billet point-milled compressor wheel

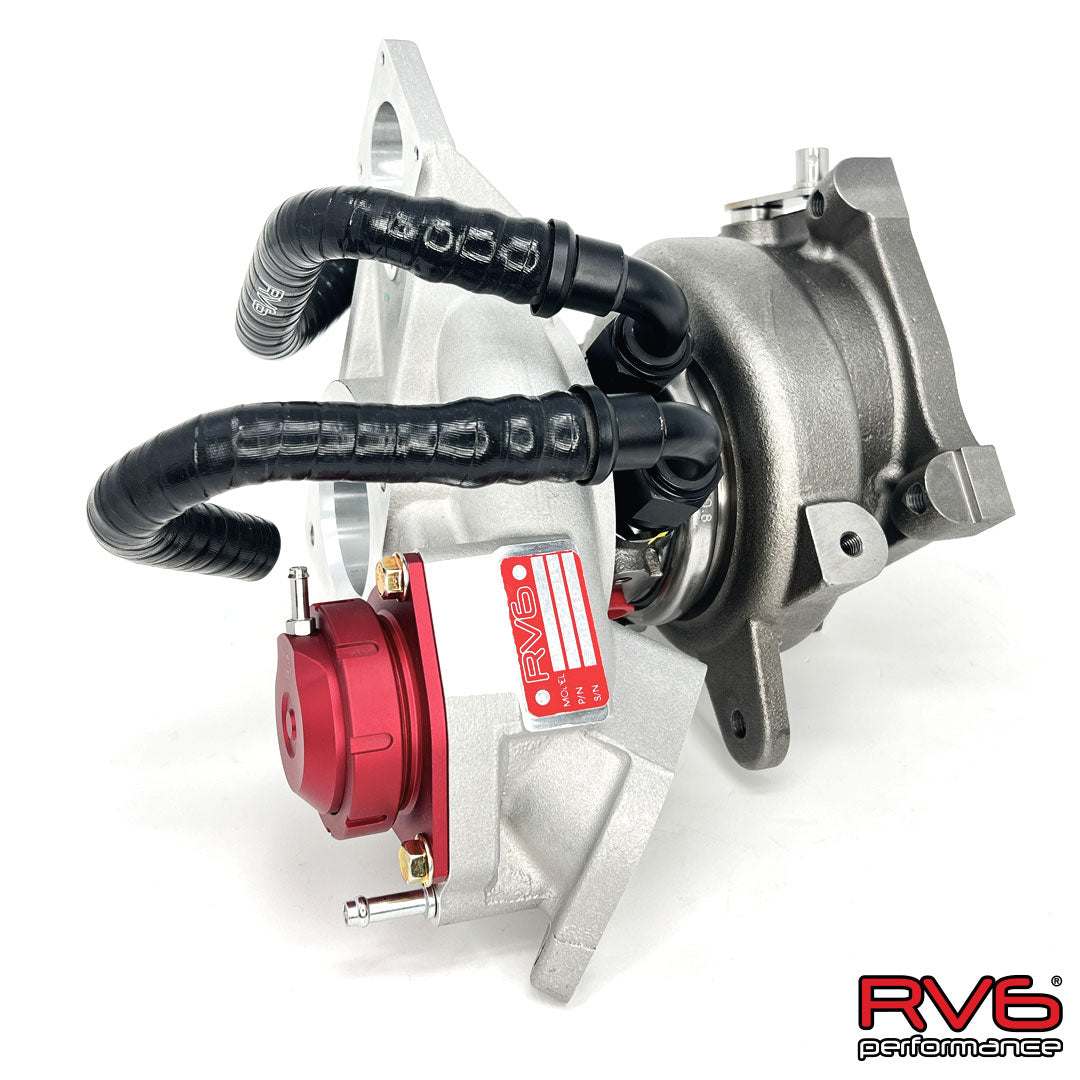

- -10AN coolant lines and fittings
- FEA-optimized design
What's in the Box
- R660AS turbocharger

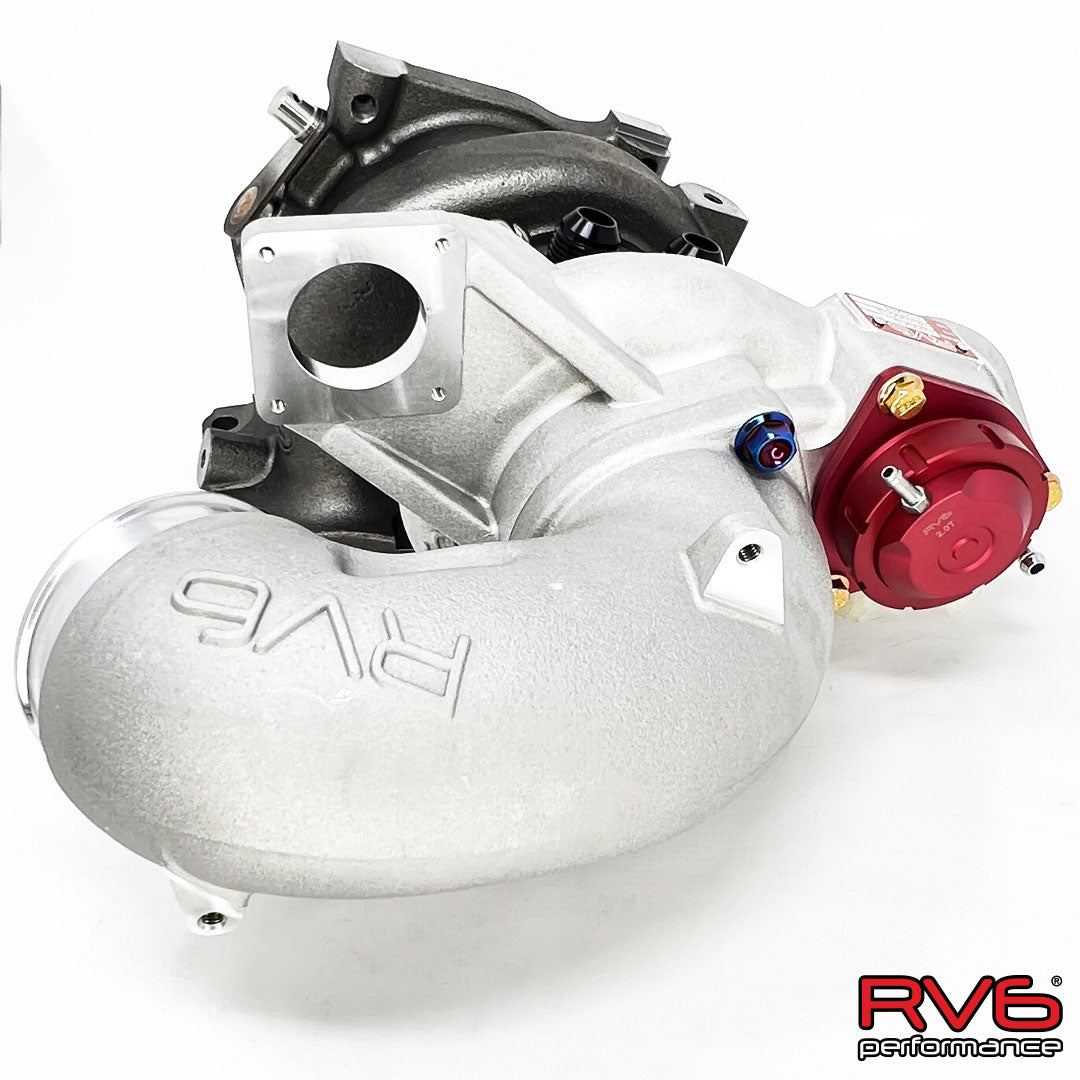

- 76mm outlet inlet pipe elbow

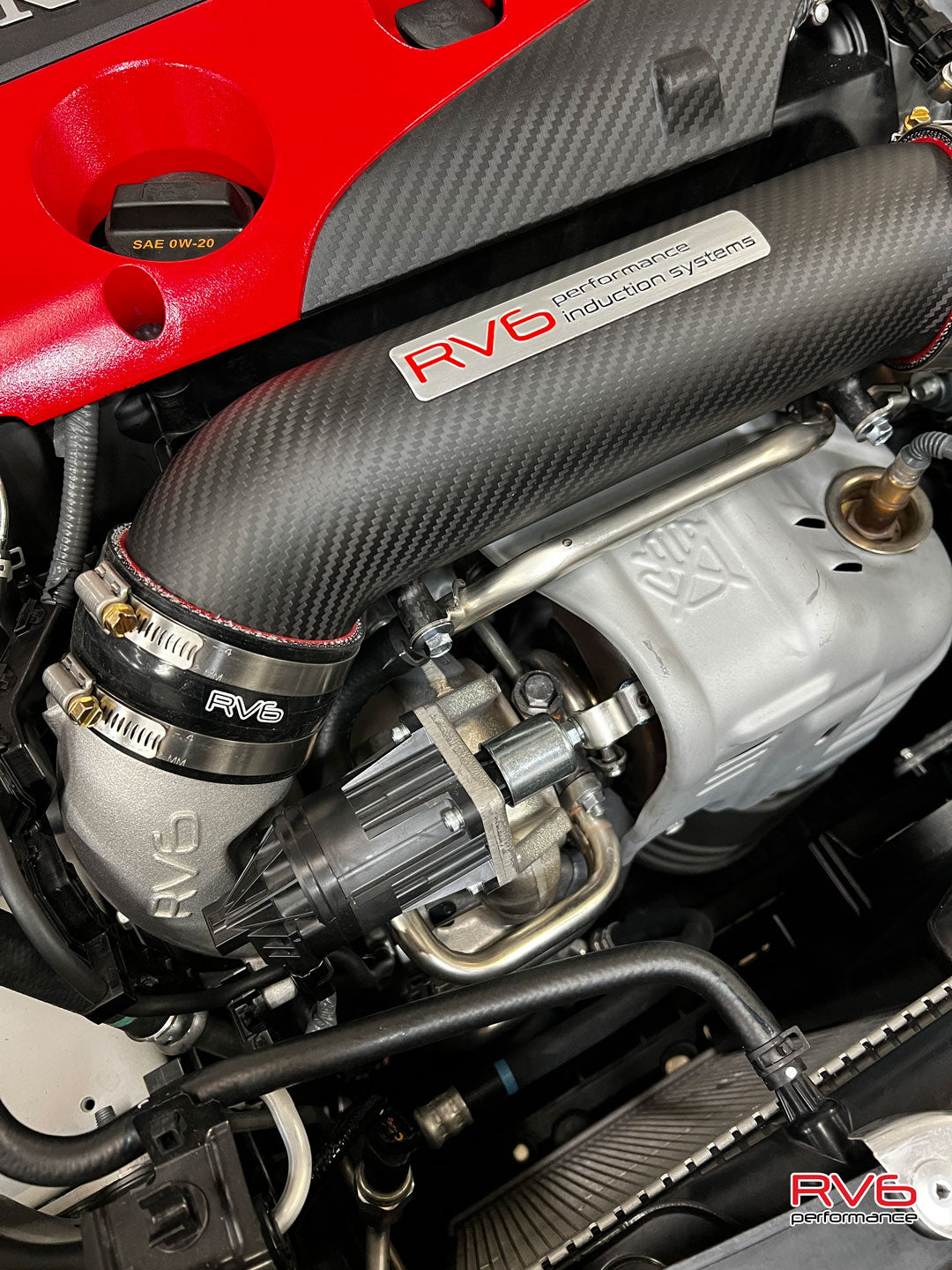

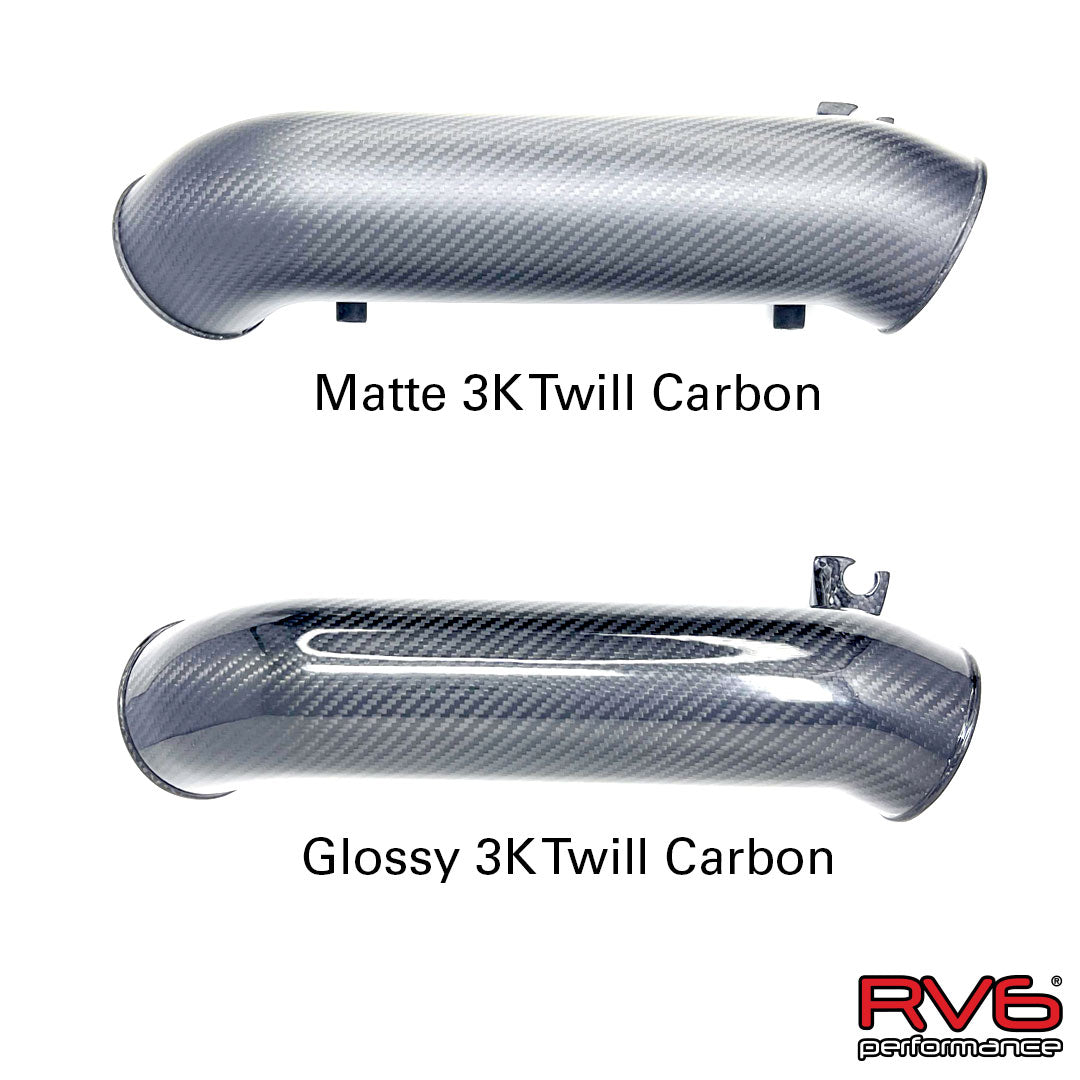

- 82mm carbon fiber inlet pipe

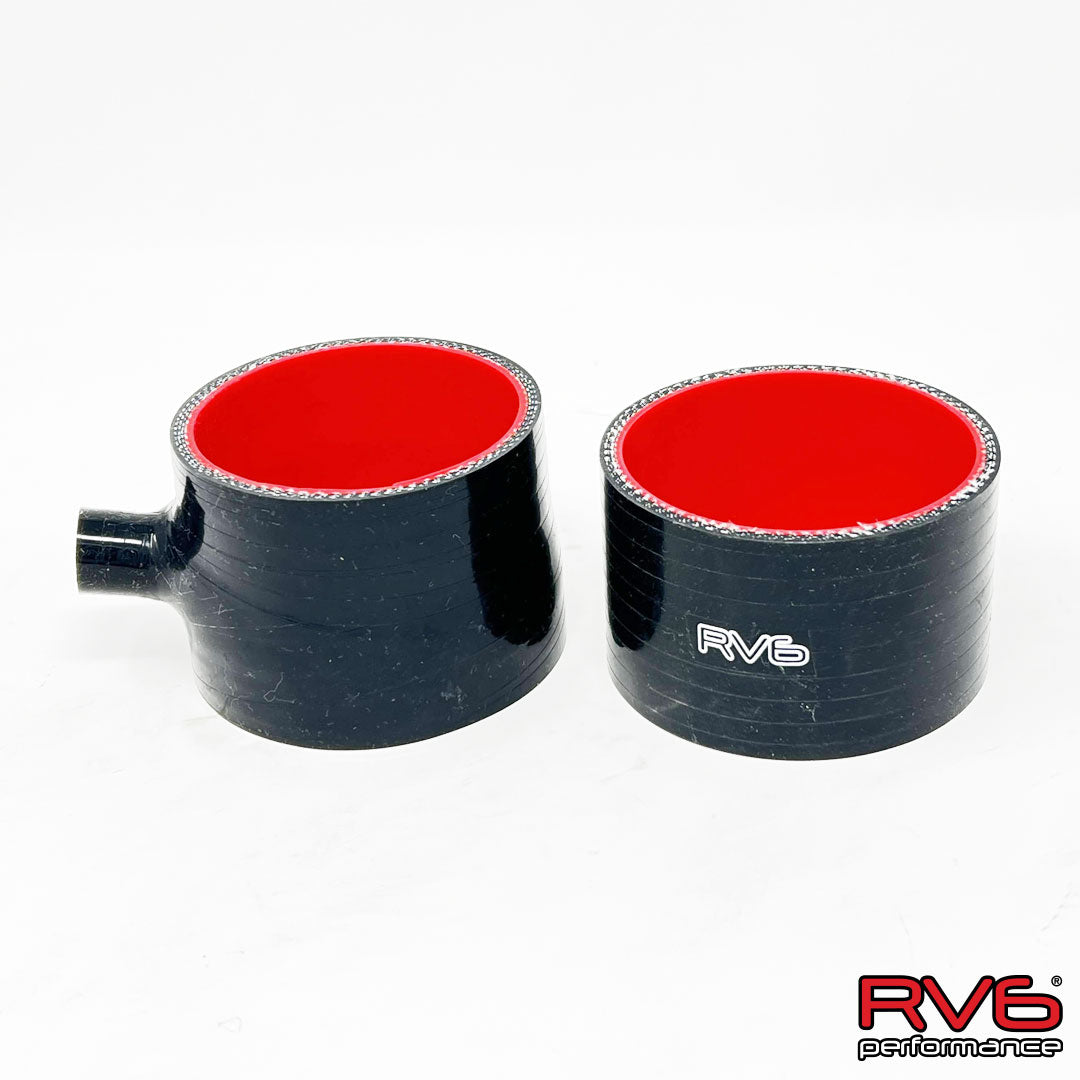

- Coupler to race/big bore MAF housing
- All hardware and gaskets needed for installation
- M10x1.25 titanium stud set (4) with safety wire
- RV6 bypass valve
Requires an FK8/FL5/DE5 wastegate actuator. Backed by a 1-year warranty. RV6 turbochargers require a minimum engine oil viscosity of 0W-30 or 5W-30.
